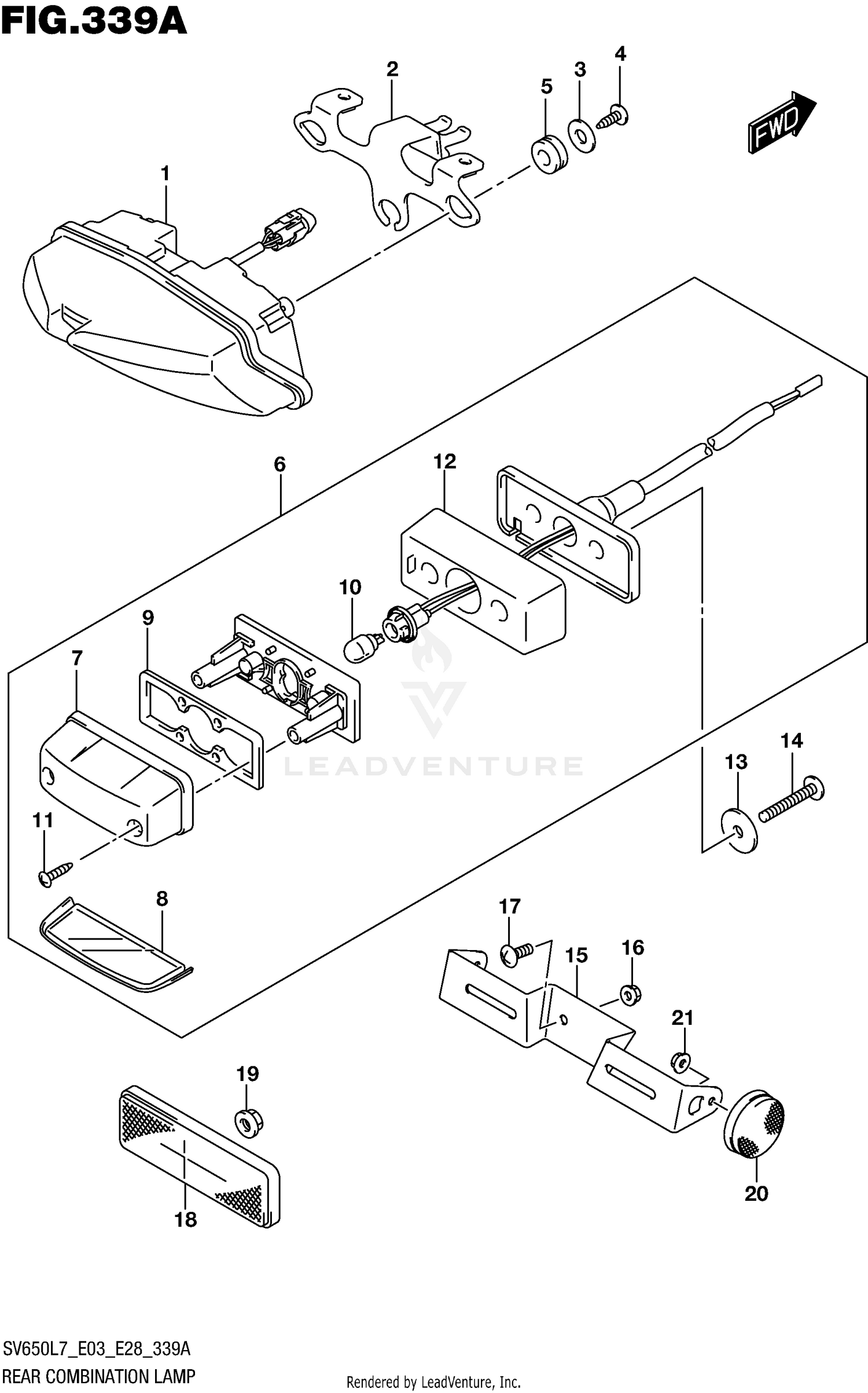

Rear Combination Lamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LAMP ASSY,REAR COMB
35710-14JB0
Superseded by 35710-14JD0
|
$216.33 | ||
|
Unavailable |
|||
|
#2
BRACKET,REAR COMB LAMP
35726-18K00
|
$17.98 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER (5.5X20X1.2)
09160-05501
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW
03541-0516A
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#5
CUSHION
09320-10049
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#6
LAMP ASSY,LICENSE
35910-16G31
|
$95.30 | ||
|
Available to order. Add to View Price |
|||
|
#7
.COVER
35917-16G00
|
$13.40 | ||
|
Available to order. Add to View Price |
|||
|
#8
.LENS
35912-16G01
|
$13.26 | ||
|
Available to order. Add to View Price |
|||
|
#9
.GASKET
35913-16G00
|
$6.31 | ||
|
Unavailable |
|||
|
#10
.BULB (12V5W)
09471-12216
|
$6.53 | ||
|
Available to order. Add to View Price |
|||
|
#11
.SCREW
03211-0416A
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#12
.SPACER
35978-16G30
|
$7.27 | ||
|
Unavailable |
|||
|
#13
WASHER (5.5X20X1.2)
09160-05501
|
$2.25 | ||
|
Unavailable |
|||
|
#14
SCREW
03541-0540A
|
$1.54 | ||
|
Unavailable |
|||
|
#15
BRACKET,LICENSE PLATE
35927-44H30
|
$19.90 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
09159-06096
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#17
.SCREW
02142-0616A
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#18
REFLECTOR ASSY, REAR
35970-07F01
|
$25.79 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT
08316-1005A
|
$2.64 | ||
|
Available to order. Add to View Price |
|||
|
#20
REFLECTOR ASSY,RR SIDE
35970-14A20
|
$19.20 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT
08316-1005A
|
$2.64 | ||
|
Unavailable |
|||
