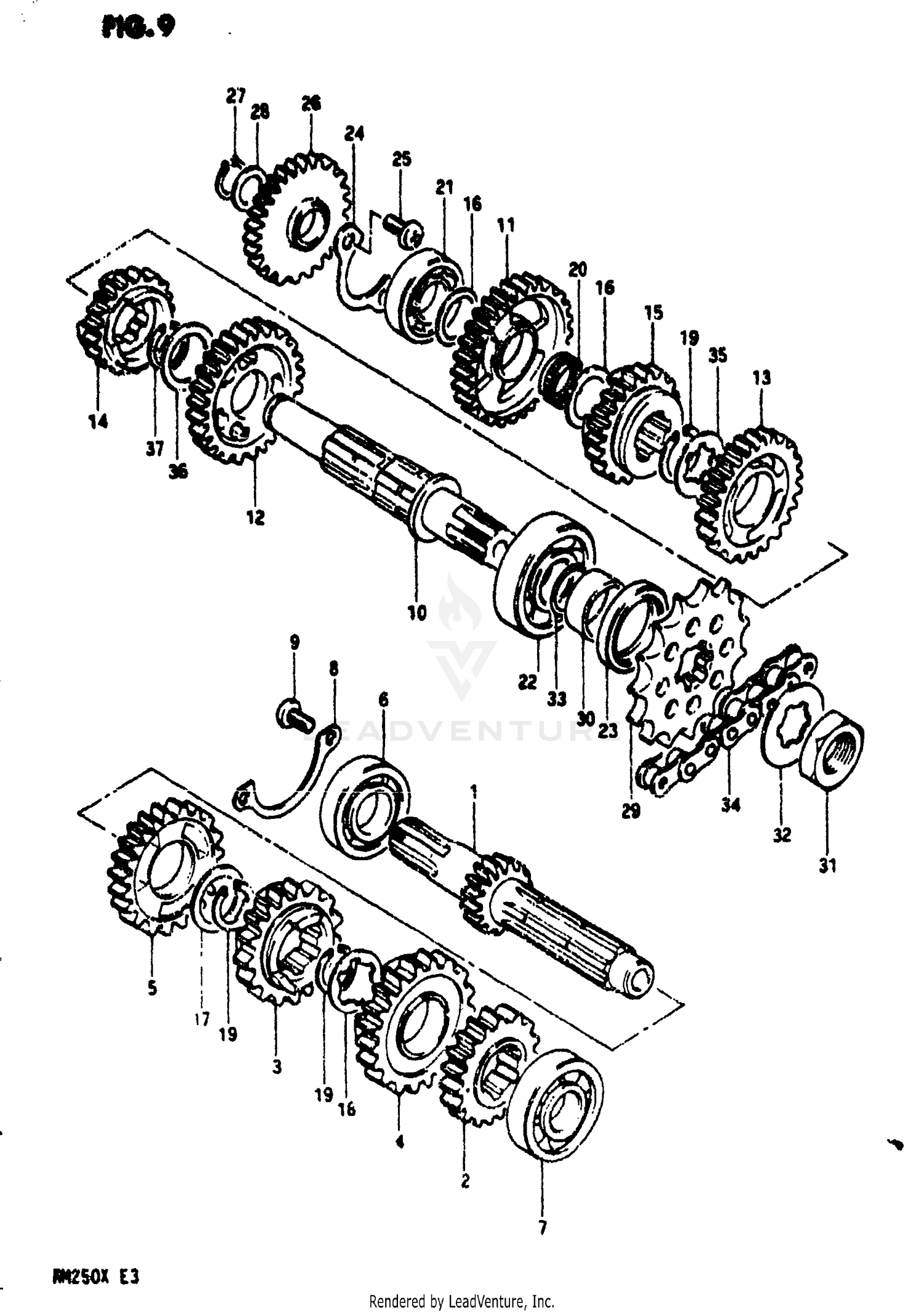

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COUNTERSHAFT (NT:13)
24121-40301
|
$110.30 | ||
|
Unavailable |
|||
|
#2
GEAR, 2ND DRIVE (NT:16)
24221-41102
|
$66.09 | ||
|
Unavailable |
|||
|
#3
GEAR, 3RD DRIVE (NT:17)
24231-14991
|
$61.87 | ||
|
Unavailable |
|||
|
#4
NO DESCRIPTION AVAILABLE
24241-41101
Superseded by 24241-14301
|
$53.88 | ||
|
Unavailable |
|||
|
#5
NO DESCRIPTION AVAILABLE
24251-14200
Superseded by 24251-14201
|
$47.51 | ||
|
Unavailable |
|||
|
#6
BEARING, COUNTER SHAFT
09262-20009
Superseded by 09262-20073
|
$28.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
BEARING, DRIVE SHAFT RH
09262-17008
Superseded by 09262-17023
|
$20.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
HOLDER, BEARING
24741-40300
|
$4.25 | ||
|
Unavailable |
|||
|
#9
SCREW
02112-06128
Superseded by 02112-06127
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#10
DRIVESHAFT
24131-14201
|
$86.23 | ||
|
Unavailable |
|||
|
#11
GEAR, 1ST DRIVEN (NT:27)
24311-14200
Superseded by 24311-14201
|
$64.56 | ||
|
Unavailable |
|||
|
#12
GEAR, 2ND DRIVEN (NT:28)
24320-14202
|
$52.33 | ||
|
Unavailable |
|||
|
#13
NO DESCRIPTION AVAILABLE
24331-14200
Superseded by 24331-14201
|
$39.93 | ||
|
Unavailable |
|||
|
#14
NO DESCRIPTION AVAILABLE
24341-14202
Superseded by 24341-14203
|
$62.76 | ||
|
Unavailable |
|||
|
#15
GEAR, 5TH DRIVEN (NT:21)
24351-14201
|
$60.50 | ||
|
Unavailable |
|||
|
#16
SHIM (17X28X1)
08211-17281
Superseded by 09181-17195
|
$3.79 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER
09181-22002
|
$1.74 | ||
|
Available to order. Add to View Price |
|||
|
#18
LOCK WASHER
09167-22011
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
CIRCLIP
09380-22006
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING, 1ST DRIVEN GEAR
09263-17004
|
$12.65 | ||
|
Available to order. Add to View Price |
|||
|
#21
BEARING, DRIVE SHAFT RH
09262-17008
Superseded by 09262-17023
|
$20.40 | ||
|
Unavailable |
|||
|
#22
BEARING (22X56X16)
09262-22014
Superseded by 09262-22028
|
$94.35 | ||
|
Available to order. Add to View Price |
|||
|
#23
OIL SEAL
09283-32003
|
$8.90 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOLDER, BEARING
24751-40300
|
$3.54 | ||
|
Unavailable |
|||
|
#25
SCREW
02122-06128
Superseded by 02122-06127
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#26
GEAR, KICK IDLE (NT:26)
26260-41101
Superseded by 26260-13A10
|
$83.63 | ||
|
Unavailable |
|||
|
#27
CIRCLIP
09380-17001
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
WASHER
08211-17241
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#29
SPROCKET, ENGINE (NT:14)
27511-14210
|
$26.57 | ||
|
Available to order. Add to View Price |
|||
|
#30
SPACER
09180-22007
|
$10.14 | ||
|
Unavailable |
|||
|
#31
NUT
09140-22006
|
$5.16 | ||
|
Available to order. Add to View Price |
|||
|
#32
LOCK WASHER
09167-22005
|
$2.48 | ||
|
Available to order. Add to View Price |
|||
|
#33
O RING
09280-22003
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#34
CHAIN,DRIVE ASS
27600-14210
Superseded by 27600-46K00-116
|
$179.72 | ||
|
Unavailable |
|||
|
#35
WASHER
09167-22013
|
$2.36 | ||
|
Unavailable |
|||
|
#36
WASHER
08221-25325
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#37
CIRCLIP, REAR FINAL DRIVE
08331-11258
Superseded by 08331-31256
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
