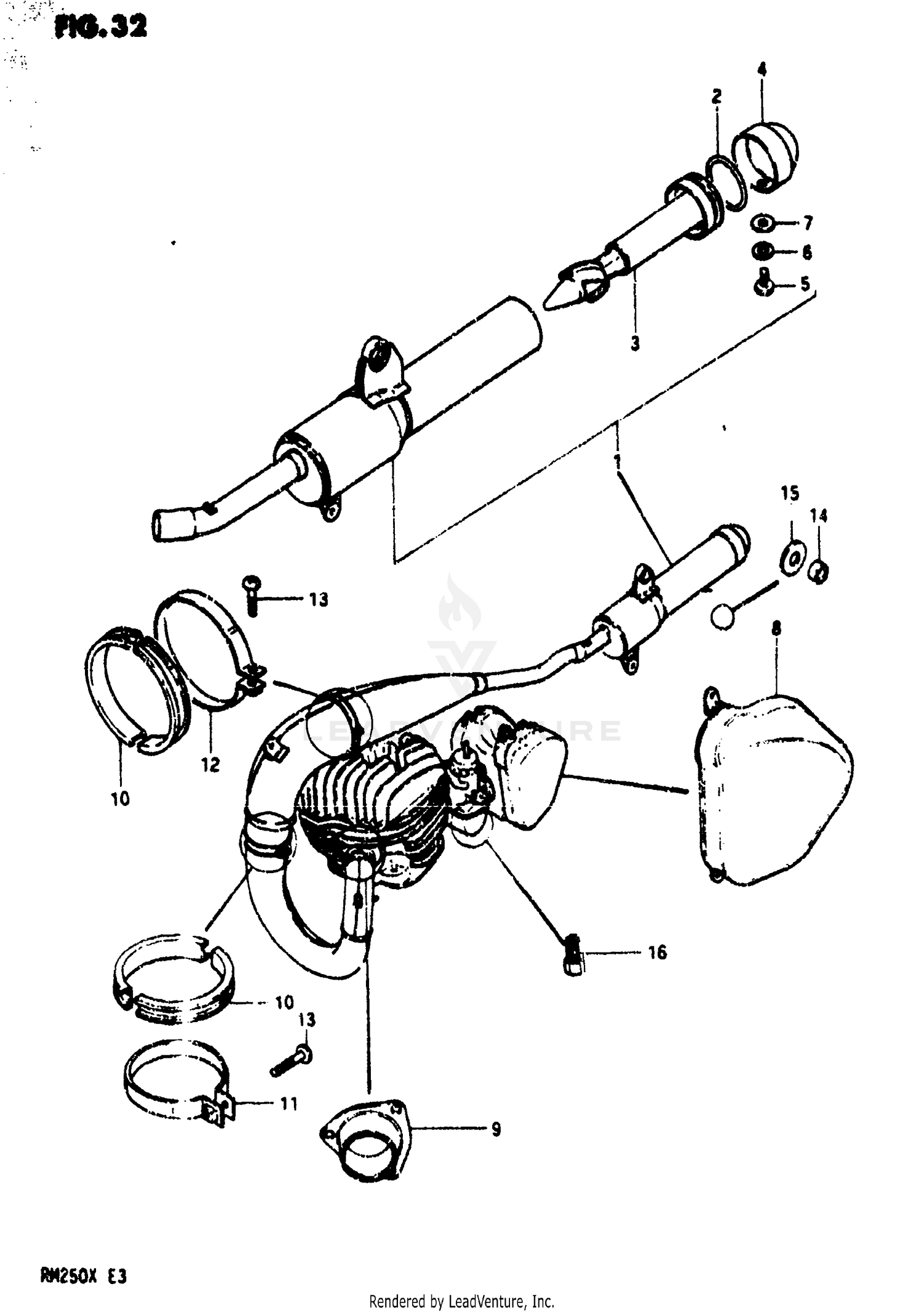

Optional Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#0
OFF-ROAD SOUND KIT
14300-14830
|
$45.49 | ||
|
Unavailable |
|||
|
#1
NO DESCRIPTION AVAILABLE
14303-14220
Superseded by 14303-14220-H01
|
$79.85 | ||
|
Unavailable |
|||
|
#2
O RING
09280-55001
|
$5.80 | ||
|
Available to order. Add to View Price |
|||
|
#3
TUBE, CLEAN CUT
14850-30510
|
$31.02 | ||
|
Unavailable |
|||
|
#4
COVER, TAIL
14649-30520
|
$9.50 | ||
|
Unavailable |
|||
|
#5
SCREW
09128-06013
|
$1.50 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER,LOCK
08321-21068
Superseded by 08321-01067
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
WASHER
08322-21068
Superseded by 08322-01067
|
$2.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
COVER, AIR CLEANER RH
13940-14200
Superseded by 13860-14230
|
$15.77 | ||
|
Unavailable |
|||
|
#8
COVER, AIR CLEANER LH
13940-14205
Superseded by 13860-14235
|
$10.71 | ||
|
Unavailable |
|||
|
#9
FRANGE, EXHAUST PIPE
14170-40310
|
$19.75 | ||
|
Unavailable |
|||
|
#10
RUBBER, MUFFLER
14319-41710
|
$24.03 | ||
|
Unavailable |
|||
|
#11
CLAMP, MUFFLER BODY FRONT
09402-99601
|
$2.11 | ||
|
Unavailable |
|||
|
#12
CLAMP, MUFFLER BODY REAR
09402-00601
|
$1.89 | ||
|
Unavailable |
|||
|
#13
SCREW
02112-06258
Superseded by 02112-06257
|
$2.18 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
SPACER (6.5X9X5)
09180-06073
Superseded by 09180-06306
|
$2.48 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, FRAME COVER INNER LH
09168-08010
|
$0.81 | ||
|
Unavailable |
|||
|
#16
JET, MAIN (190)
09491-38003
Superseded by 09491-38009
|
$18.73 | ||
|
Available to order. Add to View Price |
|||
