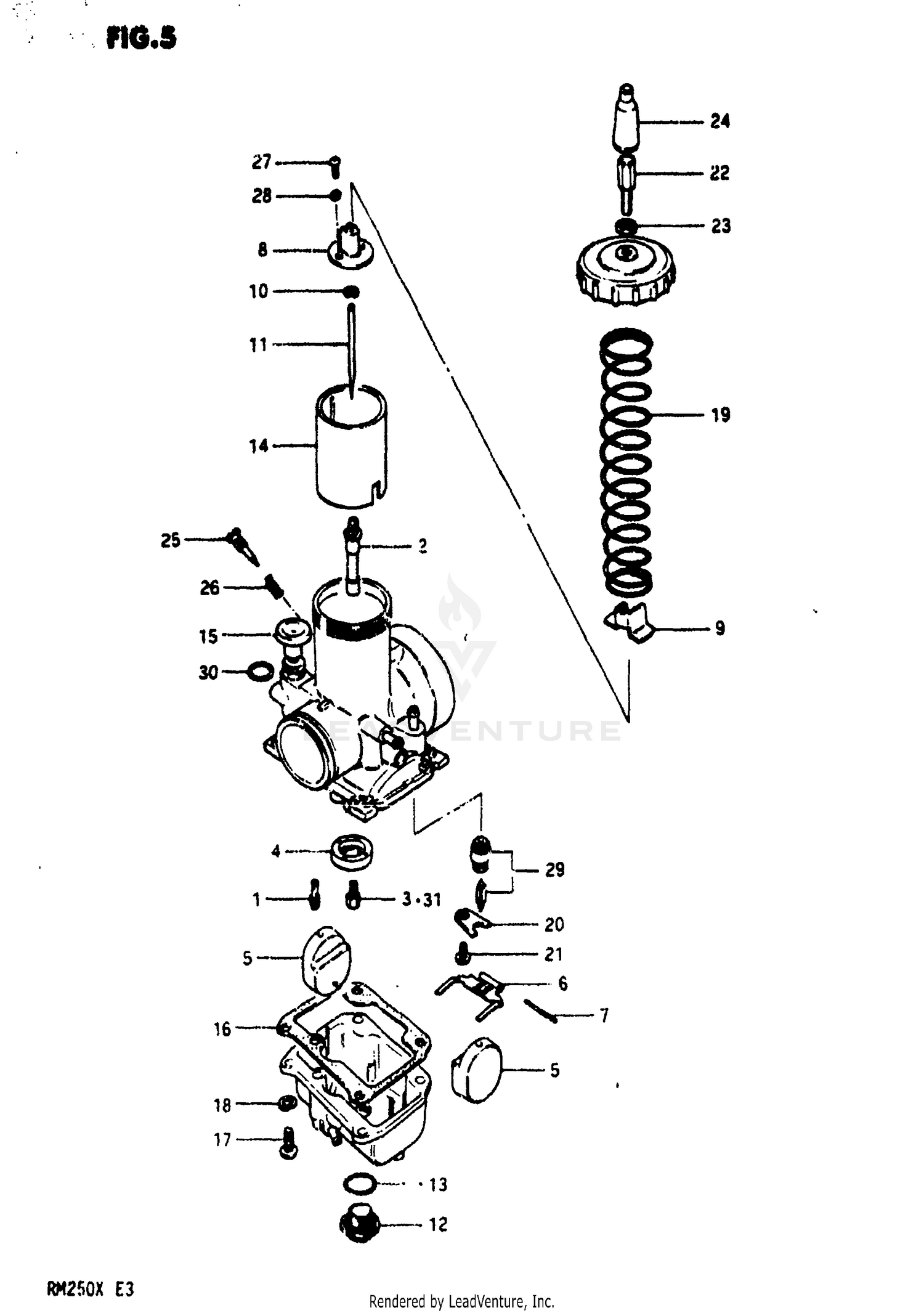

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#0
CARBURETOR ASSY
13200-14201
|
$231.28 | ||
|
Unavailable |
|||
|
#1
JET, PILOT (60)
09492-60004
|
$6.84 | ||
|
Unavailable |
|||
|
#2
JET, NEEDLE (R-9)
09494-00333
|
$8.67 | ||
|
Unavailable |
|||
|
#3
JET, MAIN (320)
09491-64001
Superseded by 09491-64002
|
$12.43 | ||
|
Available to order. Add to View Price |
|||
|
#4
RING
13331-40600
|
$5.95 | ||
|
Unavailable |
|||
|
#5
FLOAT
13252-16600
|
$35.28 | ||
|
Available to order. Add to View Price |
|||
|
#6
ARM, FLOAT
13253-40200
|
$10.61 | ||
|
Unavailable |
|||
|
#7
.PIN,FLOAT
13254-01010
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOLDER, JET NEEDLE
13581-40200
|
$7.36 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER, HOLDER
13629-40200
|
$3.60 | ||
|
Unavailable |
|||
|
#10
CLIP, NEEDLE
13394-10010
|
$5.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
NEEDLE, JET (6FJ37-3)
13383-14200
|
$10.21 | ||
|
Unavailable |
|||
|
#12
PLUG, DRAIN
13247-40600
|
$7.93 | ||
|
Unavailable |
|||
|
#13
O RING
09280-20003
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#14
VALVE, THROTTIE (CA:2.0)
13551-14200
|
$40.95 | ||
|
Unavailable |
|||
|
#15
PLUNGER ASSY, STARTER
13410-14100
|
$37.55 | ||
|
Unavailable |
|||
|
#16
GASKET, FLOAT CHAMBER
13251-40230
|
$9.30 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW
02112-05168
Superseded by 02112-05167
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#18
LOCK WASHER
08321-21058
Superseded by 08321-0105A
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPRING, RETURN
13573-16601
|
$3.83 | ||
|
Unavailable |
|||
|
#20
PLATE
13373-39110
|
$8.44 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW
02112-04068
Superseded by 02112-0406B
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#22
ADJUSTER, CABLE
13577-41612
|
$8.91 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT
13661-16600
|
$5.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
CAP
13681-33010
|
$11.52 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW, PILOT AIR (1 1/2)
13269-15010
|
$10.19 | ||
|
Unavailable |
|||
|
#26
SPRING
13268-01010
|
$5.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
SCREW
02112-03088
Superseded by 02112-0308A
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER,LOCK
08321-21038
Superseded by 09162-03001
|
$1.43 | ||
|
Available to order. Add to View Price |
|||
|
#29
VALVE, NEEDLE
13370-40230
Superseded by 13370-40600
|
$66.47 | ||
|
Available to order. Add to View Price |
|||
|
#30
O RING
13295-15010
Superseded by 09280-08014
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#31
JET, MAIN (300)
09491-60003
Superseded by 09491-60007
|
$13.71 | ||
|
Available to order. Add to View Price |
|||
|
#31
JET, MAIN (310)
09491-62001
Superseded by 09491-62005
|
$12.43 | ||
|
Available to order. Add to View Price |
|||
|
#31
JET, MAIN (330)
09491-66001
Superseded by 09491-66002
|
$11.97 | ||
|
Available to order. Add to View Price |
|||
|
#31
JET, MAIN (340)
09491-68001
Superseded by 09491-68002
|
$11.97 | ||
|
Available to order. Add to View Price |
|||
|
#31
JET, MAIN (350)
09491-70008
Superseded by 09491-70011
|
$11.97 | ||
|
Available to order. Add to View Price |
|||
