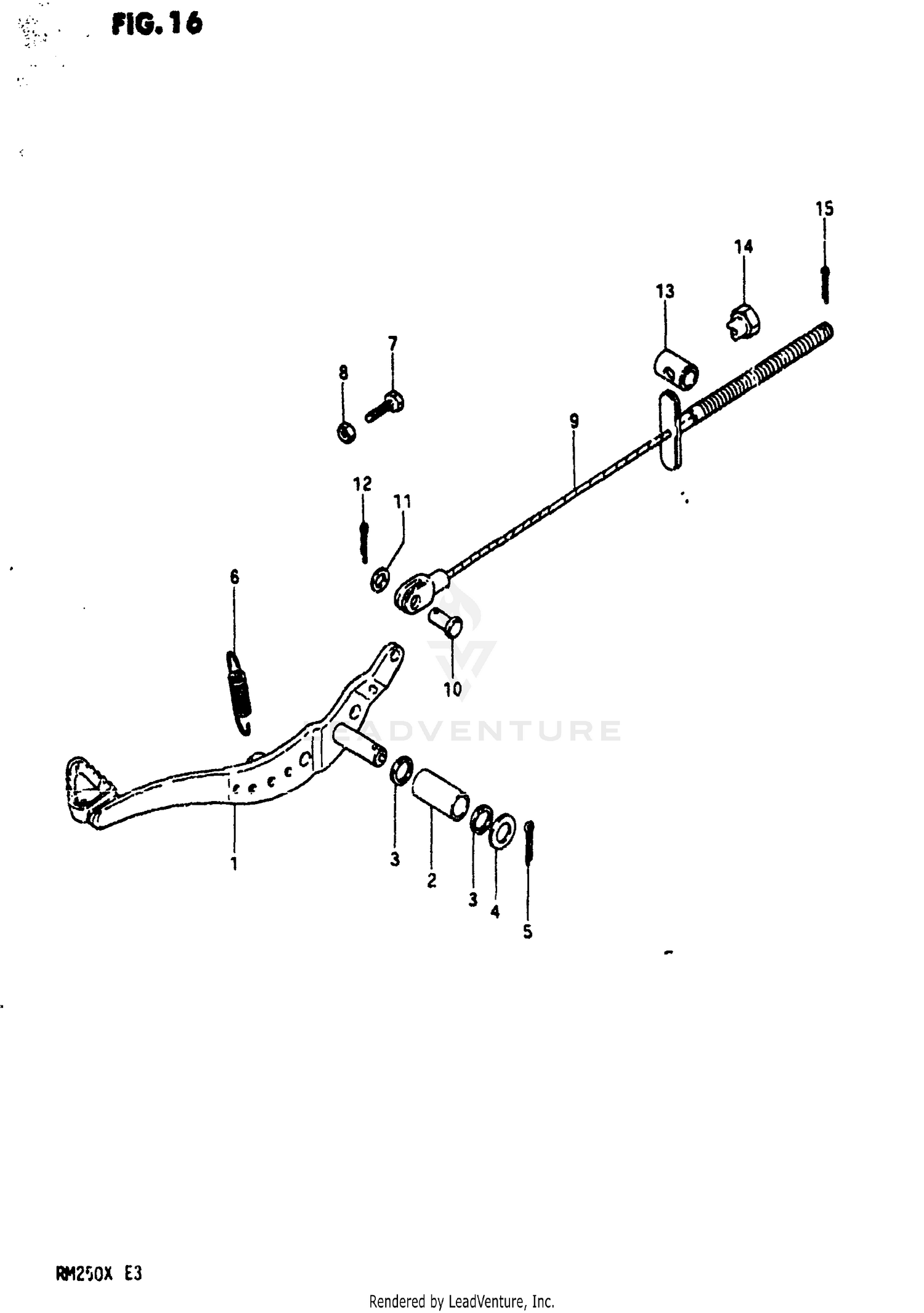

Rear Brake Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, BRAKE
43110-14211
Superseded by 43110-14212
|
$35.34 | ||
|
Unavailable |
|||
|
#2
BUSH
09319-12022
|
$21.39 | ||
|
Unavailable |
|||
|
#3
O RING
09280-12006
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#4
THRUST WASHER
08211-12223
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN
04111-30208
Superseded by 04111-3020A
|
$1.58 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING
09448-31024
Superseded by 09448-31024-XC0
|
$4.04 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
09100-06009
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#8
.NUT
08310-11068
Superseded by 08310-00067
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
CABLE, REAR BRAKE
58510-14200
Superseded by 58510-14A00
|
$18.09 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN
09200-05001
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER
08322-21068
Superseded by 08322-01067
|
$2.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
PIN
04111-20208
Superseded by 04111-2020A
|
$1.48 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN, ADJUSTER
09209-13004
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#14
.NUT
09150-06001
Superseded by 09150-06010
|
$3.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
.COTTER PIN
04111-20158
Superseded by 04111-2015A
|
$1.48 | ||
|
Available to order. Add to View Price |
|||
