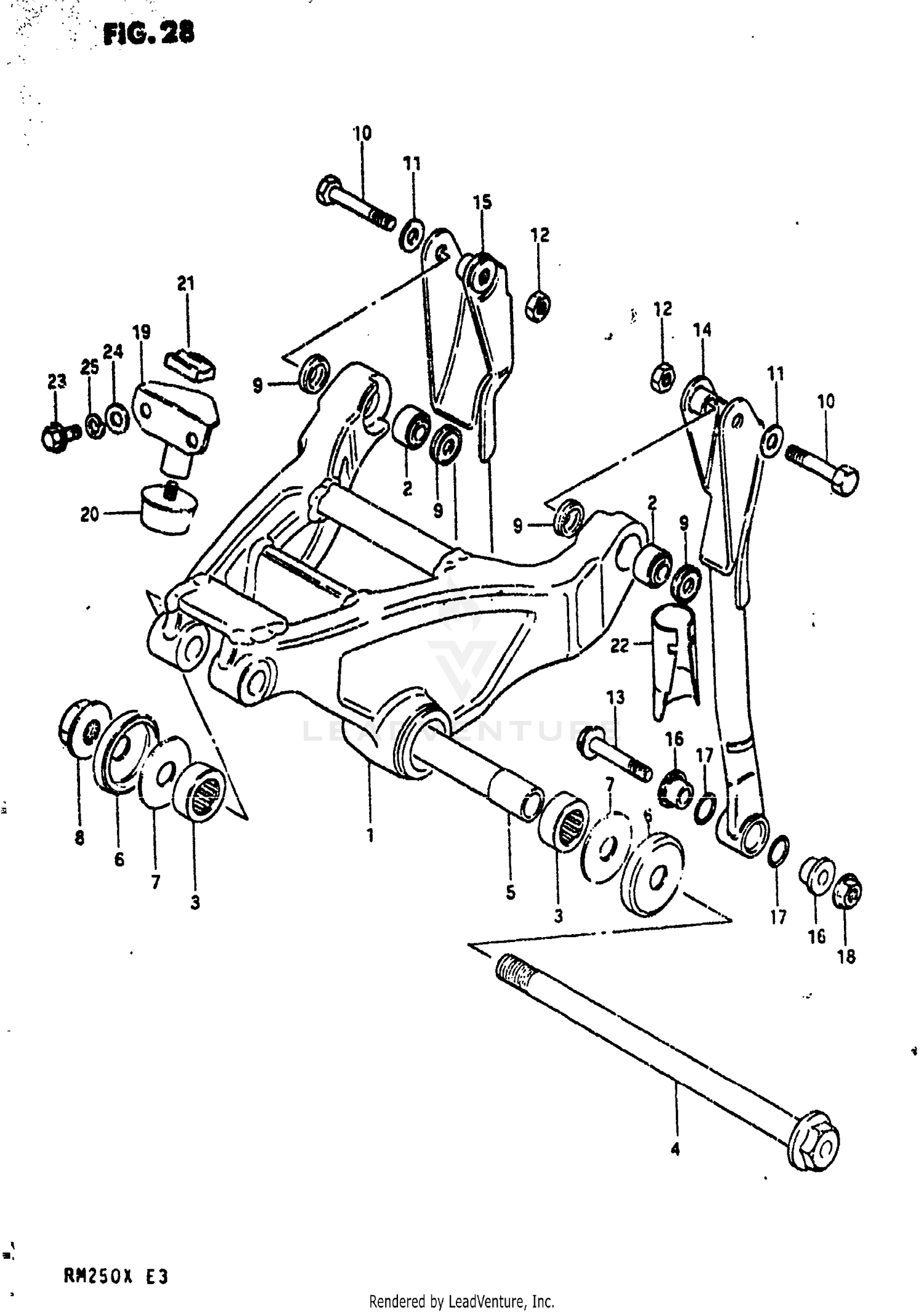

Cushion Lever Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LEVER, CUSHION
62600-14811
Superseded by 62600-14812
|
$252.05 | ||
|
Unavailable |
|||
|
#2
BEARING
09269-08001
|
$94.44 | ||
|
Unavailable |
|||
|
#3
BEARING
09263-17019
|
$32.80 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHAFT
62621-14104
Superseded by 62621-14105
|
$17.57 | ||
|
Unavailable |
|||
|
#5
SPACER, RR CUSH
62623-14203
Superseded by 62623-16700
|
$62.01 | ||
|
Unavailable |
|||
|
#6
DUST SEAL
62624-14201
Superseded by 62624-14202
|
$7.62 | ||
|
Unavailable |
|||
|
#7
THRUST WASHER
09160-12045
|
$5.08 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT
08319-31126
Superseded by 08319-3112A
|
$4.57 | ||
|
Available to order. Add to View Price |
|||
|
#9
DUST SEAL TORQU
64339-40410
Superseded by 64339-40411
|
$8.93 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
09100-08173
Superseded by 09103-08178
|
$5.80 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER
08322-11088
Superseded by 08322-01087
|
$2.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
NUT
08310-11088
Superseded by 08310-00087
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BOLT, LOWER
09103-08043
|
$3.87 | ||
|
Available to order. Add to View Price |
|||
|
#14
ROD, CUSHION LEVER, LH
62640-14204
|
$40.92 | ||
|
Unavailable |
|||
|
#15
ROD, CUSHION LEVER, RH
62650-14204
|
$41.82 | ||
|
Unavailable |
|||
|
#16
SPACER, LOWER
62316-14100
|
$15.56 | ||
|
Unavailable |
|||
|
#17
.O RING (D:1.9,ID:13)
09280-13004
|
$2.64 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT
08319-21088
Superseded by 08319-2108A
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#19
STOPPER, TENSION
62660-14103
|
$9.50 | ||
|
Unavailable |
|||
|
#20
RUBBER, TENSION STOPPER
62666-14100
Superseded by 62666-14101
|
$10.30 | ||
|
Unavailable |
|||
|
#21
SUPPORTER, RUBBER
62669-14200
|
$2.64 | ||
|
Unavailable |
|||
|
#22
PROTECTOR, CUSHION ROD LH
62681-14100
|
$4.84 | ||
|
Unavailable |
|||
|
#23
BOLT
01107-06128
Superseded by 01500-06127
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER
08322-21068
Superseded by 08322-01067
|
$2.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
WASHER,LOCK
08321-21068
Superseded by 08321-01067
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
