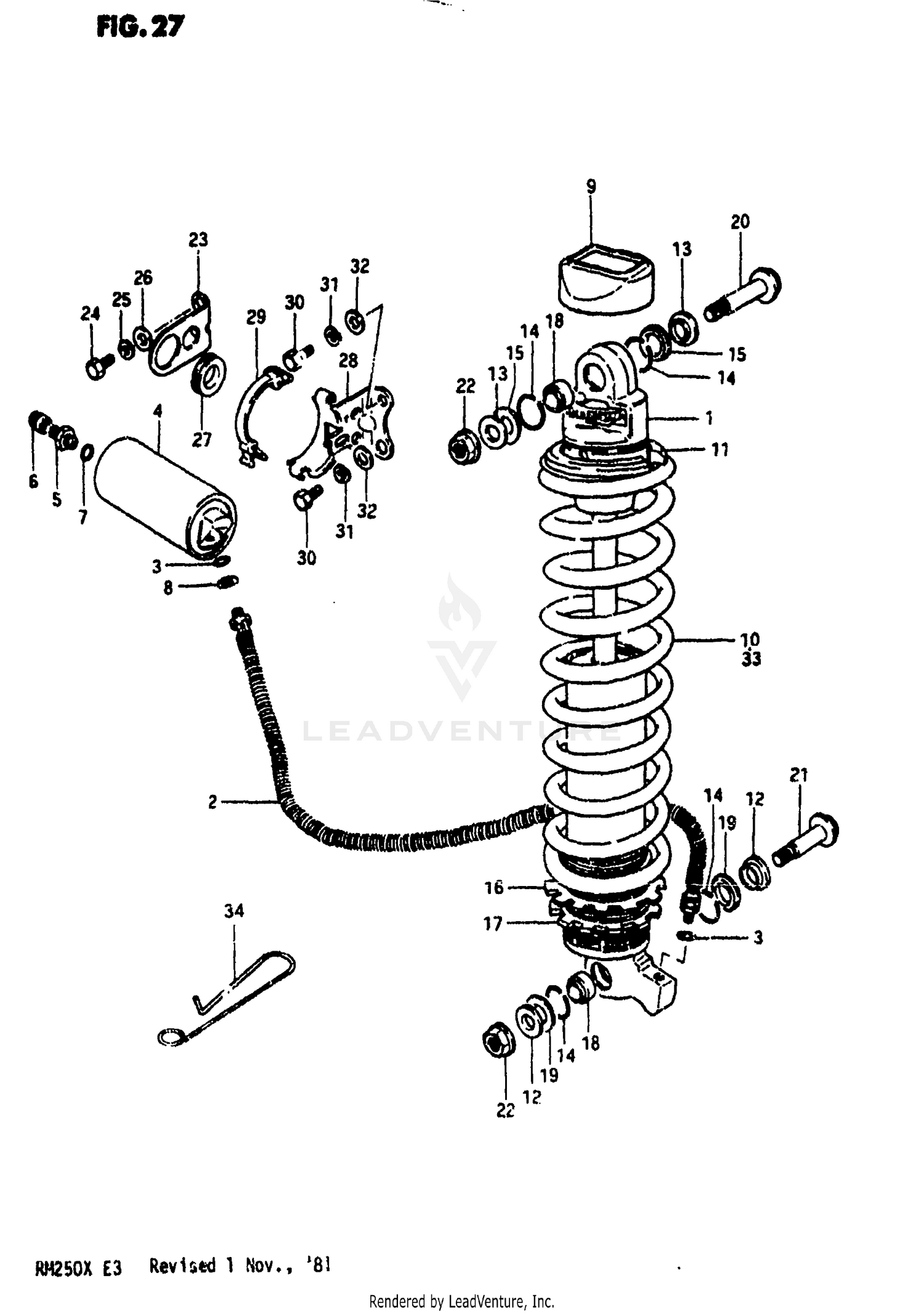

Shock Absorber Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHOCK ABSORBER, REAR
62100-14231
|
$601.92 | ||
|
Unavailable |
|||
|
#2
HOSE
62280-14200
|
$93.47 | ||
|
Unavailable |
|||
|
#3
O RING
62154-40200
|
$0.85 | ||
|
Unavailable |
|||
|
#4
TANK
62270-14100
|
$86.83 | ||
|
Unavailable |
|||
|
#5
VALVE
62274-14100
|
$12.12 | ||
|
Unavailable |
|||
|
#6
VALVE, CAP
51294-40400
|
$8.78 | ||
|
Available to order. Add to View Price |
|||
|
#7
O RING
51117-41211
|
$3.74 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER
62285-14100
|
$1.33 | ||
|
Unavailable |
|||
|
#9
CAP
62179-14100
|
$4.28 | ||
|
Unavailable |
|||
|
#10
SPRING
62211-14100
|
$135.05 | ||
|
Unavailable |
|||
|
#11
SPRING, GUIDE
62225-14100
|
$20.69 | ||
|
Unavailable |
|||
|
#12
COLLAR
62177-14100
|
$18.03 | ||
|
Unavailable |
|||
|
#13
COLLAR
62177-14200
|
$11.01 | ||
|
Unavailable |
|||
|
#14
.RING, BEARING STOPPER LEVER
62277-14200
Superseded by 62657-34A01
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#15
DUST SEAL, UPPER
62226-14200
|
$8.75 | ||
|
Unavailable |
|||
|
#16
SPRING, GUIDE
62191-14100
|
$18.18 | ||
|
Unavailable |
|||
|
#17
NUT, ADJUSTER
62194-14100
|
$19.17 | ||
|
Unavailable |
|||
|
#18
BEARING, REAR (10x24x14.5)
09269-10001
Superseded by 62175-00B00
|
$77.70 | ||
|
Available to order. Add to View Price |
|||
|
#19
DUST SEAL, LOWER
62226-14100
|
$8.51 | ||
|
Unavailable |
|||
|
#20
BOLT,10X77
09103-10039
Superseded by 09103-10247-XC0
|
$7.43 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, LOWER (L:58)
09103-10040
|
$5.26 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT
08319-31108
Superseded by 08319-31107
|
$3.28 | ||
|
Available to order. Add to View Price |
|||
|
#23
BRACKET, FRONT
62411-14110
Superseded by 62411-14111
|
$5.78 | ||
|
Unavailable |
|||
|
#24
BOLT
01107-06128
Superseded by 01500-06127
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER,LOCK
08321-21068
Superseded by 08321-01067
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
WASHER
08322-21068
Superseded by 08322-01067
|
$2.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
CUSHION
62423-14210
Superseded by 62423-14211
|
$2.67 | ||
|
Unavailable |
|||
|
#28
NO DESCRIPTION AVAILABLE
62420-14211
Superseded by 62420-14213
|
$26.40 | ||
|
Unavailable |
|||
|
#29
BAND
09462-00075
|
$9.61 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT
01107-06128
Superseded by 01500-06127
|
$2.37 | ||
|
Unavailable |
|||
|
#31
WASHER,LOCK
08321-21068
Superseded by 08321-01067
|
$2.22 | ||
|
Unavailable |
|||
|
#32
WASHER
08322-21068
Superseded by 08322-01067
|
$2.25 | ||
|
Unavailable |
|||
|
#33
SPRING (HARD)
62211-14110
|
$104.17 | ||
|
Unavailable |
|||
|
#33
SPRING (SOFT)
62211-14120
|
$110.47 | ||
|
Unavailable |
|||
|
#34
CLAMP
62431-14100
|
$1.40 | ||
|
Unavailable |
|||
