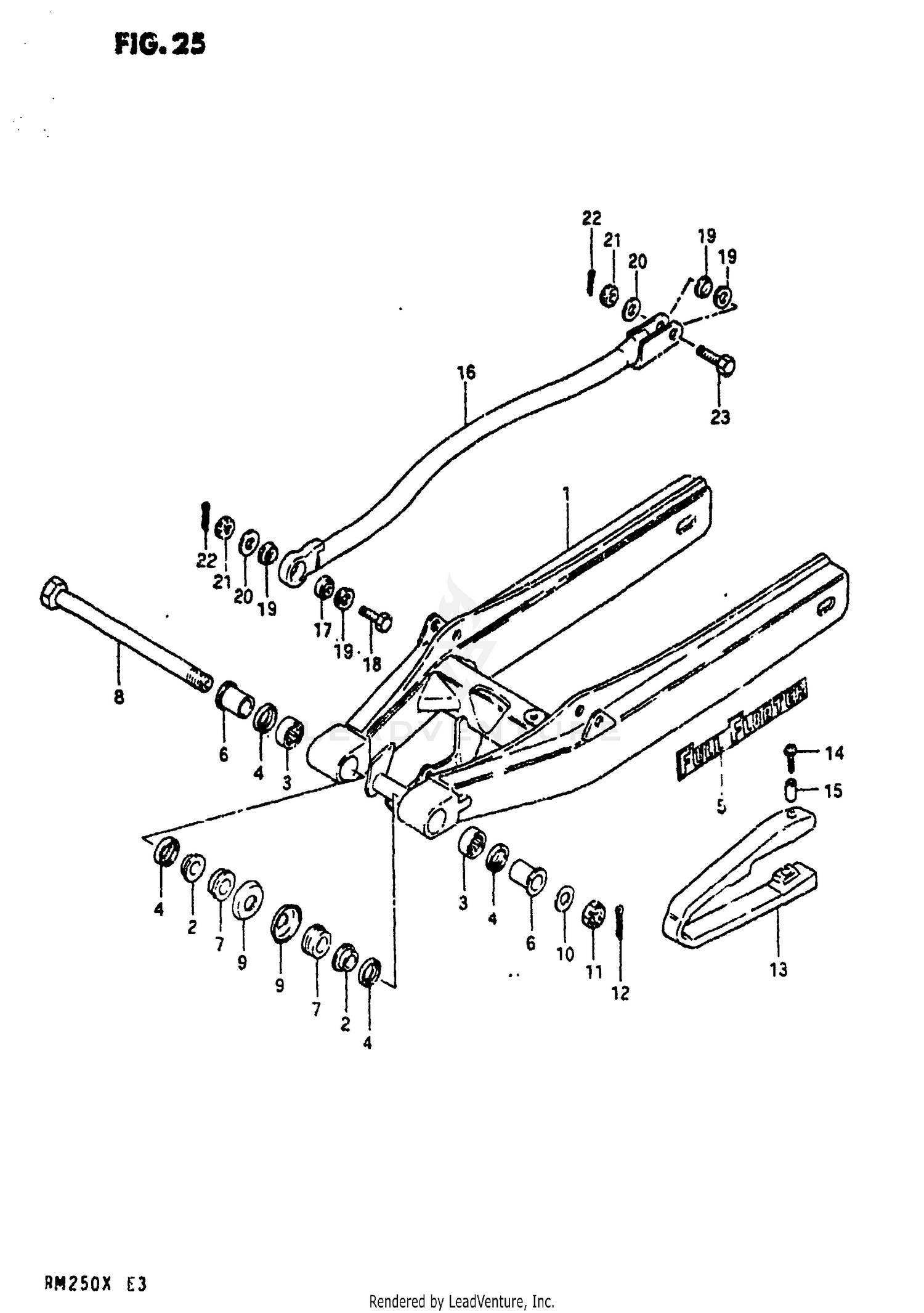

Rear Swinging Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR SWINGING ARM SET
61100-14832
|
$207.96 | ||
|
Unavailable |
|||
|
#2
BUSH
61261-14110
|
$19.81 | ||
|
Unavailable |
|||
|
#3
BEARING
09263-20041
|
$28.77 | ||
|
Available to order. Add to View Price |
|||
|
#4
.OIL SEAL (20X27X5)
09285-20005
Superseded by 09283-20031
|
$6.57 | ||
|
Available to order. Add to View Price |
|||
|
#5
EMBLEM
68381-14100
Superseded by 68381-14100-64D
|
$3.97 | ||
|
Unavailable |
|||
|
#6
SPACER
61251-14100
|
$20.69 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER, INNER
61252-14100
|
$17.78 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHAFT, PIVOT
61211-14102
|
$39.96 | ||
|
Unavailable |
|||
|
#9
SEAL, PIVOT
61262-40400
Superseded by 61262-40401
|
$7.88 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER
08322-11148
Superseded by 08322-01147
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, HUB
08314-41148
Superseded by 08314-4014B
|
$5.40 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN
04111-30308
Superseded by 04111-3030A
|
$1.71 | ||
|
Available to order. Add to View Price |
|||
|
#13
BUFFER,CHAIN TO
61273-14203
Superseded by 61273-14X50
|
$43.91 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW
61275-40200
|
$0.65 | ||
|
Unavailable |
|||
|
#15
SPACER,5.5X8X4
09180-05015
Superseded by 09180-05046
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#16
TORQUE LINK SET
64300-14812
Superseded by 64300-14813
|
$157.62 | ||
|
Unavailable |
|||
|
#17
BEARING
64352-40401
|
$91.11 | ||
|
Unavailable |
|||
|
#18
BOLT, FRONT
09101-08003
|
$1.58 | ||
|
Unavailable |
|||
|
#19
DUST SEAL TORQU
64339-40410
Superseded by 64339-40411
|
$9.33 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER
08322-11088
Superseded by 08322-01087
|
$2.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
NUT
08314-41088
Superseded by 08314-4008B
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIN
04111-20208
Superseded by 04111-2020A
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, REAR
09101-08014
|
$1.11 | ||
|
Unavailable |
|||
