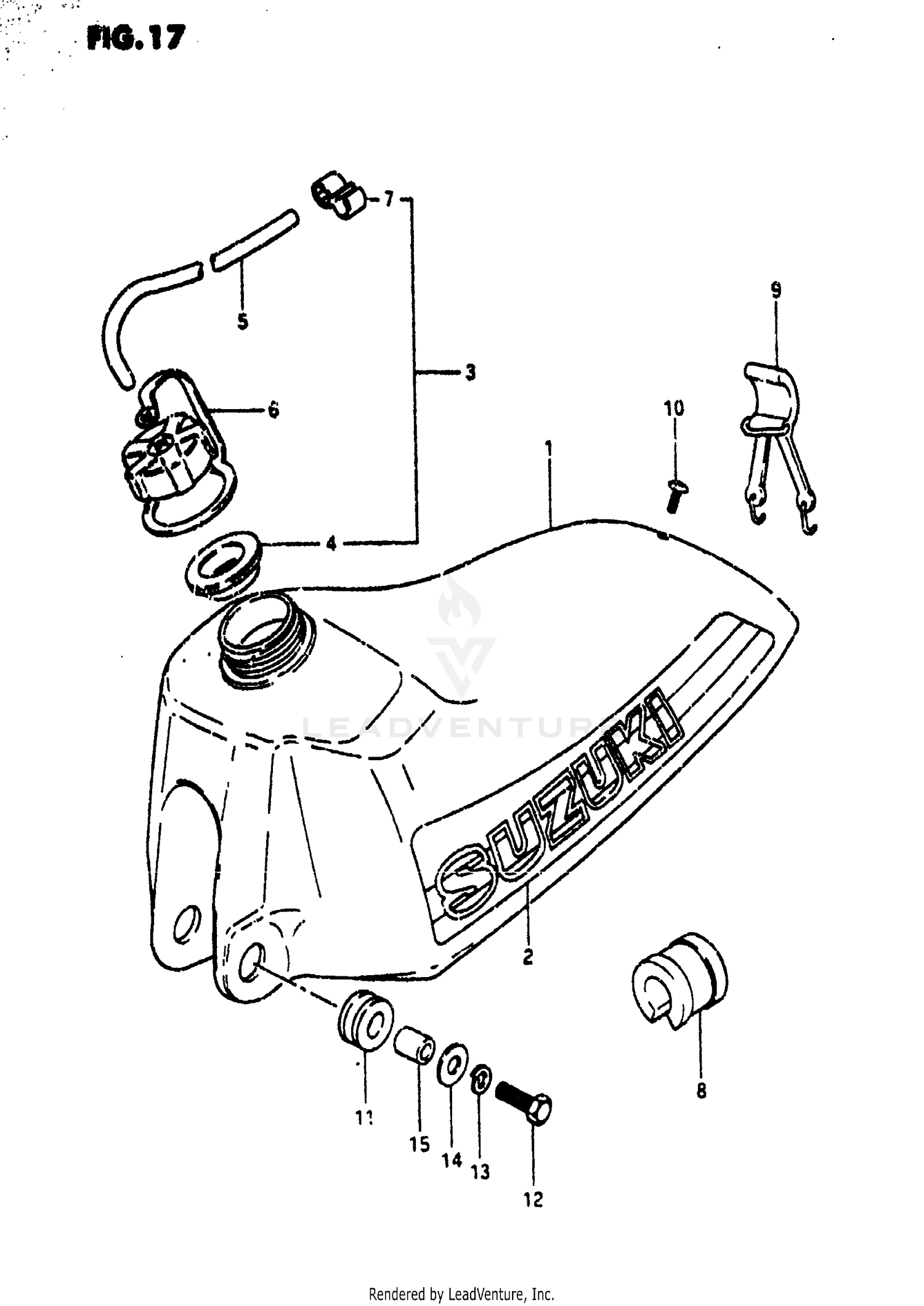

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TANK, FUEL (YELLOW)
44100-14220-163
Superseded by 44100-14840-163
|
$246.69 | ||
|
Unavailable |
|||
|
#2
TAPE SET
68110-14200-76P
|
$24.38 | ||
|
Unavailable |
|||
|
#3
CAP SET,FUEL TA
44200-40400
Superseded by 44200-40822
|
$18.24 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET
44248-40400
Superseded by 44248-05211
|
$4.77 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOSE,5X10X600
09343-05129
Superseded by 44421-13ER0
|
$12.25 | ||
|
Available to order. Add to View Price |
|||
|
#6
BAND
44487-40400
|
$3.47 | ||
|
Unavailable |
|||
|
#7
CLAMP
44486-40200
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#8
CUSHION
44541-14101
|
$14.08 | ||
|
Available to order. Add to View Price |
|||
|
#9
BAND, REAR
44560-14101
Superseded by 44560-02B00
|
$13.64 | ||
|
Unavailable |
|||
|
#10
SCREW
09125-06009
Superseded by 09125-06073
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#11
CUSHION
09320-12016
|
$2.48 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
01107-08308
Superseded by 01500-08307
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#13
.WASHER
08321-21088
Superseded by 08321-01087
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
WASHER, EXHAUST SUPPORT
09160-08002
Superseded by 09160-08135
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPACER,8.8X12X1
09180-08036
Superseded by 09180-08036-XC0
|
$1.91 | ||
|
Available to order. Add to View Price |
|||
