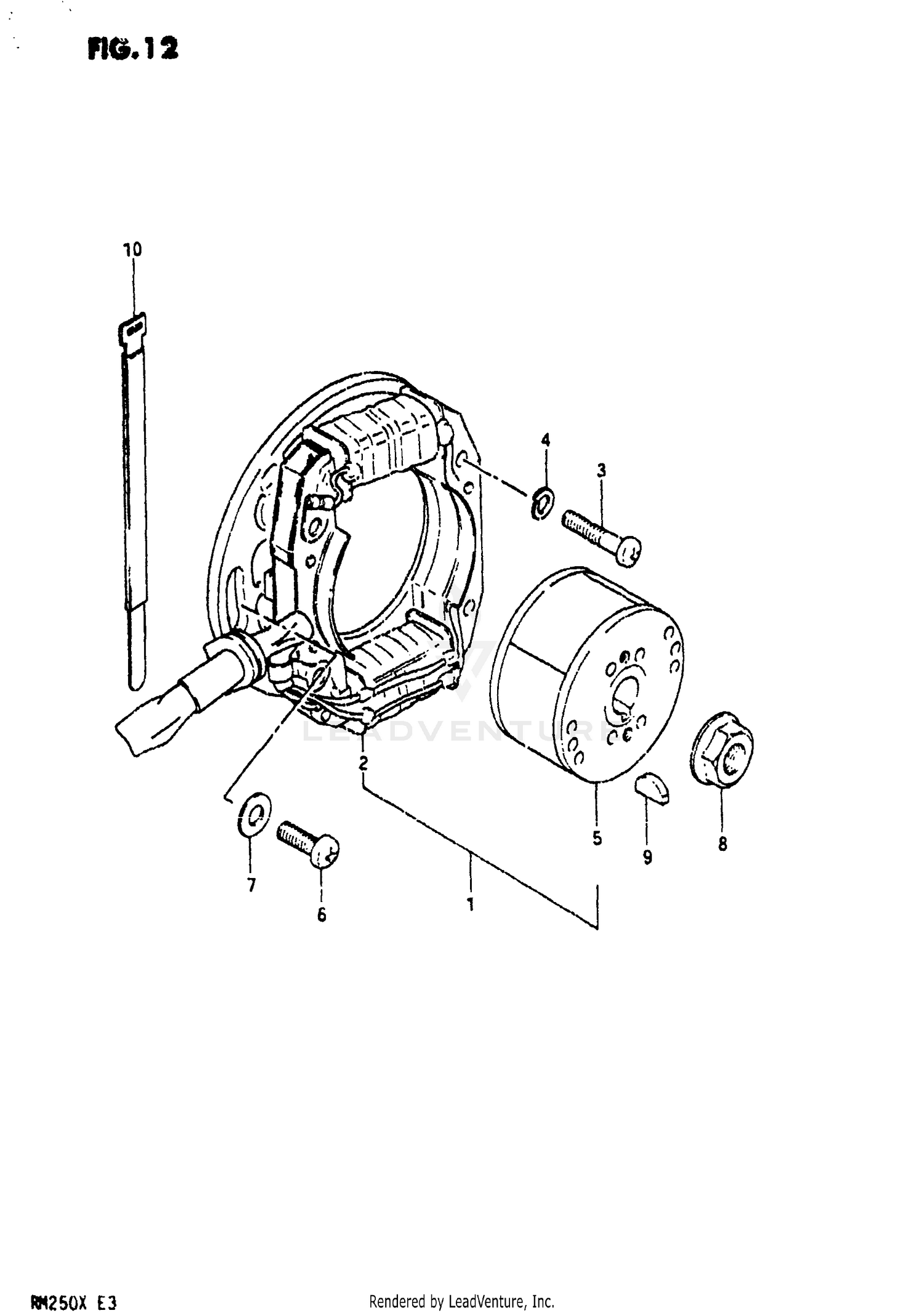

Magneto Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAGNETO ASSY
32100-14210
|
$252.78 | ||
|
Unavailable |
|||
|
#2
STATOR ASSY
32101-40310
|
$255.06 | ||
|
Unavailable |
|||
|
#3
SCREW
02112-05258
Superseded by 02112-05257
|
$1.81 | ||
|
Available to order. Add to View Price |
|||
|
#4
LOCK WASHER
08321-21058
Superseded by 08321-0105A
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#5
ROTOR
32102-14210
|
$180.60 | ||
|
Unavailable |
|||
|
#6
SCREW
02112-06168
Superseded by 02112-06167
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER
08322-21068
Superseded by 08322-01067
|
$2.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
NUT, WHEEL SET
08316-16108
Superseded by 08316-10107
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#9
KEY
08341-31049
Superseded by 09420-04008
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLAMP
09407-18301
Superseded by 09407-18302
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
