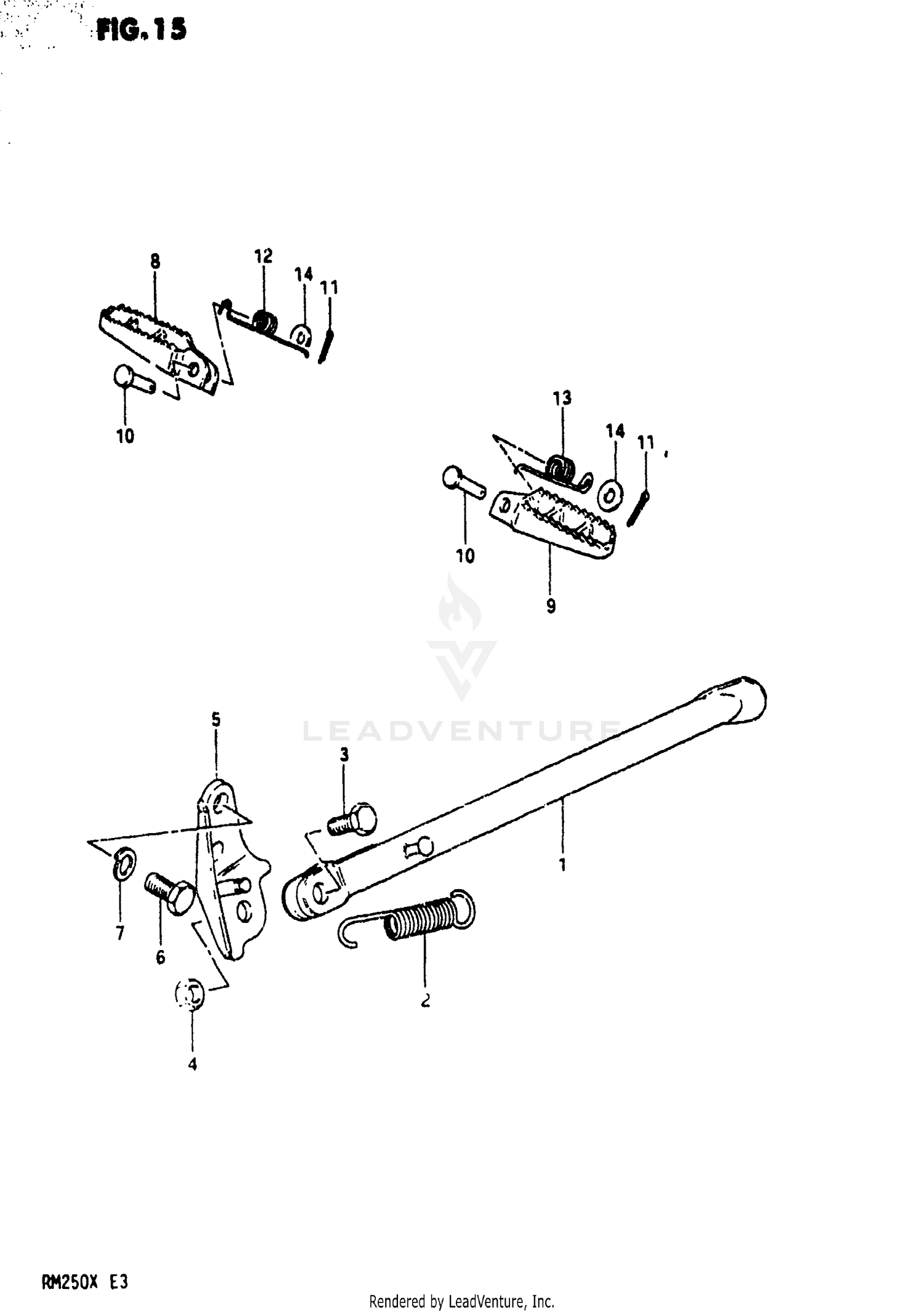

Stand - Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAND SIDE
42310-14201
Superseded by 42310-14400-019
|
$55.00 | ||
|
Unavailable |
|||
|
#2
SPRING
09443-17007
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT (10x30)
09100-10067
|
$3.06 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT
08310-22108
Superseded by 08310-00107
|
$2.64 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRACKET PROP ST
42330-14100
Superseded by 42330-14400-019
|
$121.55 | ||
|
Unavailable |
|||
|
#6
BOLT
09100-10118
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#7
LOCK WASHER
08321-21108
Superseded by 08321-01107
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#8
FOOTREST, FRONT RH (BLACK)
43551-37201
Superseded by 43551-37202-019
|
$25.75 | ||
|
Unavailable |
|||
|
#9
FOOTREST, FRONT LH (BLACK)
43561-40401
Superseded by 43561-40401-019
|
$25.75 | ||
|
Unavailable |
|||
|
#10
PIN
09200-08035
Superseded by 09200-08064
|
$7.57 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN
04111-20208
Superseded by 04111-2020A
|
$1.48 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING, RH
09448-14021
|
$2.00 | ||
|
Unavailable |
|||
|
#13
NO DESCRIPTION AVAILABLE
09448-14023
Superseded by 09448-14024
|
$1.62 | ||
|
Unavailable |
|||
|
#14
WASHER
08322-21088
Superseded by 08322-01087
|
$2.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
