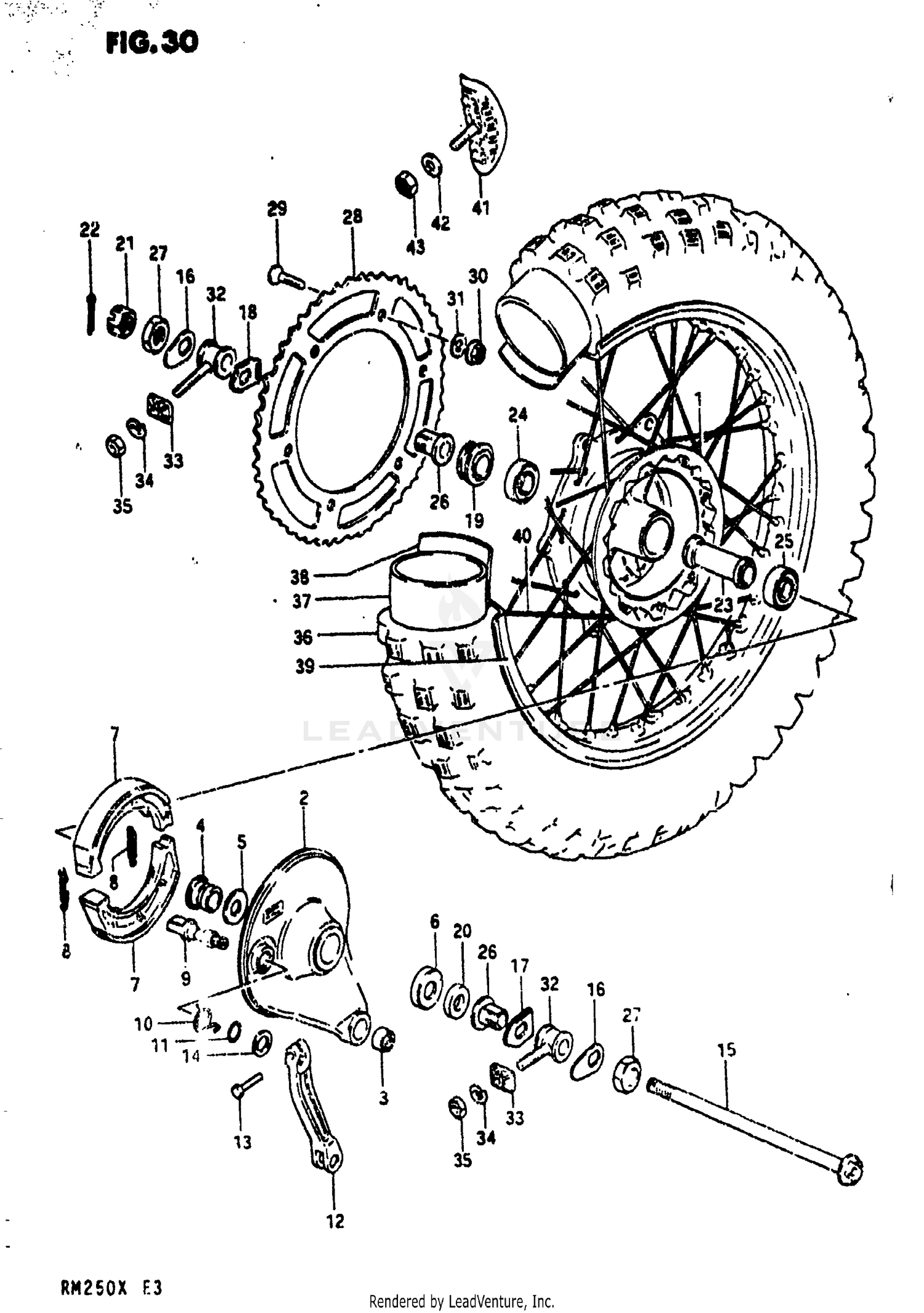

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NO DESCRIPTION AVAILABLE
64110-14102
Superseded by 64110-14103
|
$200.61 | ||
|
Unavailable |
|||
|
#2
PANEL, REAR HUB
64200-14811
Superseded by 64200-14830
|
$154.26 | ||
|
Unavailable |
|||
|
#3
BEARING
64352-40401
|
$91.11 | ||
|
Unavailable |
|||
|
#4
SPACER, PANEL
64213-14100
|
$30.83 | ||
|
Available to order. Add to View Price |
|||
|
#5
.OIL SEAL (20X27X5)
09283-20031
|
$6.38 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
COVER, PANEL DUST SEAL
64845-14100
|
$7.01 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHOE SET, BRAKE
64410-14100
Superseded by 64400-14820
|
$34.70 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING
09443-07001
Superseded by 09443-07025
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAM, BRAKE
54441-14100
Superseded by 54441-14101
|
$21.79 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING
09448-30007
Superseded by 09448-30007-XC0
|
$6.92 | ||
|
Available to order. Add to View Price |
|||
|
#11
DUST SEAL
09280-12001
|
$3.14 | ||
|
Available to order. Add to View Price |
|||
|
#12
LEVER, BRAKE CAM
64451-14100
|
$49.48 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
01107-06258
Superseded by 01500-06257
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER (12.5X20X1.0)
09160-12011
|
$1.73 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
AXLE,REAR
64711-14201
Superseded by 64711-1420V
|
$167.75 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER
64712-14201
|
$3.24 | ||
|
Unavailable |
|||
|
#17
WASHER, INNER RH
64782-14200
|
$6.44 | ||
|
Unavailable |
|||
|
#18
PLATE, INNER LH
64792-14200
|
$7.17 | ||
|
Unavailable |
|||
|
#19
SPACER, AXLE LH
64750-14200
|
$21.78 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPACER, AXLE RH
64741-14200
|
$13.78 | ||
|
Unavailable |
|||
|
#21
NUT
09141-14004
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIN
04111-30308
Superseded by 04111-3030A
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPACER, HUB BEARING
64730-14100
Superseded by 64730-14101
|
$43.90 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING, LH
08123-62027
|
$22.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
BEARING, RH
08143-62027
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
SPACER, CHAIN ADJUSTER
64781-14201
|
$22.92 | ||
|
Unavailable |
|||
|
#27
NUT
09140-22006
|
$5.16 | ||
|
Available to order. Add to View Price |
|||
|
#28
SPROCKET,REAR (NT:50)
64511-40271
Superseded by 64511-36E00
|
$135.46 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW
09120-08004
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT
08319-31088
Superseded by 08319-3108A
|
$2.79 | ||
|
Available to order. Add to View Price |
|||
|
#31
.WASHER
08322-11068
Superseded by 08322-0106B
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#32
ADJUSTER, CHAIN
61410-14220
|
$15.71 | ||
|
Unavailable |
|||
|
#33
PLATE
61421-14220
|
$6.32 | ||
|
Unavailable |
|||
|
#34
LOCK WASHER
08321-21108
Superseded by 08321-01107
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#35
NUT
08310-11108
Superseded by 08310-00107
|
$2.64 | ||
|
Available to order. Add to View Price |
|||
|
#36
TIRE (510-18)
65100-14230
|
$185.87 | ||
|
Unavailable |
|||
|
#36
TIRE (510-18)
65100-14250
|
$104.92 | ||
|
Unavailable |
|||
|
#37
TUBE, WHEEL INNER
65200-40430
|
$38.39 | ||
|
Unavailable |
|||
|
#38
PROTECTOR,INNER TUBE
65261-15030
Superseded by 55261-26F10
|
$5.57 | ||
|
Available to order. Add to View Price |
|||
|
#39
RIM, WHEEL (215X18)
65311-14211
Superseded by 65311-14600
|
$210.25 | ||
|
Unavailable |
|||
|
#40
SPOKE ASSY, REAR
65320-14220
Superseded by 65320-14112
|
$48.18 | ||
|
Unavailable |
|||
|
#41
STOPPER, BEAD
65270-14200
Superseded by 65270-28E00
|
$63.46 | ||
|
Available to order. Add to View Price |
|||
|
#42
WASHER
08322-11088
Superseded by 08322-01087
|
$2.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#43
.NUT
08310-12068
Superseded by 08310-00067
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
