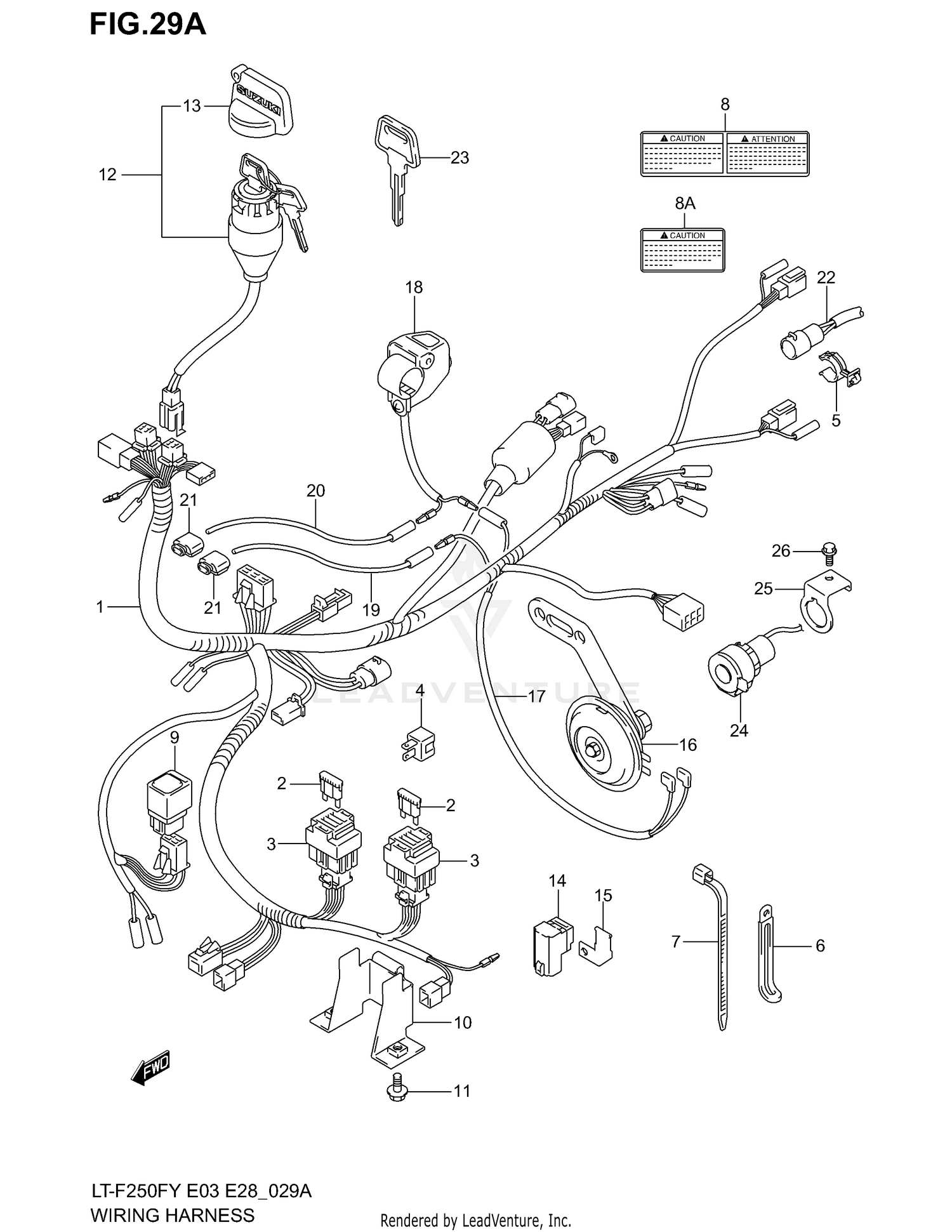

Wiring Harness (model K1/k2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WIRING HARNESS
36610-39DS0
|
$336.07 | ||
|
Unavailable |
|||
|
#1
WIRING HARNESS
36610-04G00
|
$396.42 | ||
|
Unavailable |
|||
|
#2
FUSE (5A)
09481-05101
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#2
.FUSE (20A)
09481-20101
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#3
BAND, FUSE
36742-39D00
|
$21.62 | ||
|
Available to order. Add to View Price |
|||
|
#4
DIODE
32800-16A00
|
$29.78 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLAMP
09403-16307
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLAMP
09404-06432
Superseded by 09404-06039
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP (L:125)
09407-14403
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
CLAMP (L:185)
09407-18402
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
|
#8
LABEL, CAUTION MAX AMP
38852-09FB0
Superseded by 38852-09F21
|
$8.52 | ||
|
Available to order. Add to View Price |
|||
|
#8
LABEL, CAUTION MAX AMP
38852-09FB1
|
|||
|
Unavailable |
|||
|
#8A
LABEL, CAUTION MAX AMP
38852-09F21
|
$8.52 | ||
|
Unavailable |
|||
|
#9
RELAY, NEUTRAL START
38730-19B00
|
$53.69 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOLDER, ELECTRIC PARTS FRONT
47410-19B00
|
$14.00 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT (6X12)
09118-06103
Superseded by 09118-06055
|
$3.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
SWITCH ASSY,IGN
37110-19B02
Superseded by 37110-19B03
|
$142.70 | ||
|
Available to order. Add to View Price |
|||
|
#13
.MASCOT,KEY
37142-19B00
Superseded by 37142-19B01
|
$6.44 | ||
|
Available to order. Add to View Price |
|||
|
#14
RELAY ASSY,FUEL PUMP
38740-26E00
Superseded by 38740-26E01
|
$51.23 | ||
|
Available to order. Add to View Price |
|||
|
#15
BRACKET, BACKUP RELAY
38741-05300
|
$3.10 | ||
|
Unavailable |
|||
|
#16
NO DESCRIPTION AVAILABLE
38500-19B02
Superseded by 38500-09F01
|
$52.20 | ||
|
Unavailable |
|||
|
#17
LEAD WIRE, HORN
36852-19B00
|
$6.23 | ||
|
Unavailable |
|||
|
#18
SWITCH ASSY, HORN
37830-18A00
Superseded by 37830-27H00
|
$60.86 | ||
|
Available to order. Add to View Price |
|||
|
#19
LEAD WIRE, SWITCH (ORANGE)
36851-19B00
|
$1.57 | ||
|
Unavailable |
|||
|
#20
LEAD WIRE, SWITCH
36851-19B10
|
$1.57 | ||
|
Unavailable |
|||
|
#21
CONNECTOR
36859-36590
|
$9.72 | ||
|
Available to order. Add to View Price |
|||
|
#22
PLUG ASSY, POWER SOURCE
39602-18A00
|
$19.95 | ||
|
Unavailable |
|||
|
#23
KEY,BLANK (TYPE:C)
37146-19B00
|
$10.41 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
KEY,BLANK (TYPE:D)
37146-19B10
|
$10.41 | ||
|
Available to order. Add to View Price |
|||
|
#24
TERMINAL, POWER SOURCE
38850-09F00
|
$38.95 | ||
|
Unavailable |
|||
|
#25
BRANKET, POWER SOURCE
38855-09F00
|
$9.50 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT
01550-06103
Superseded by 01550-0610A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
