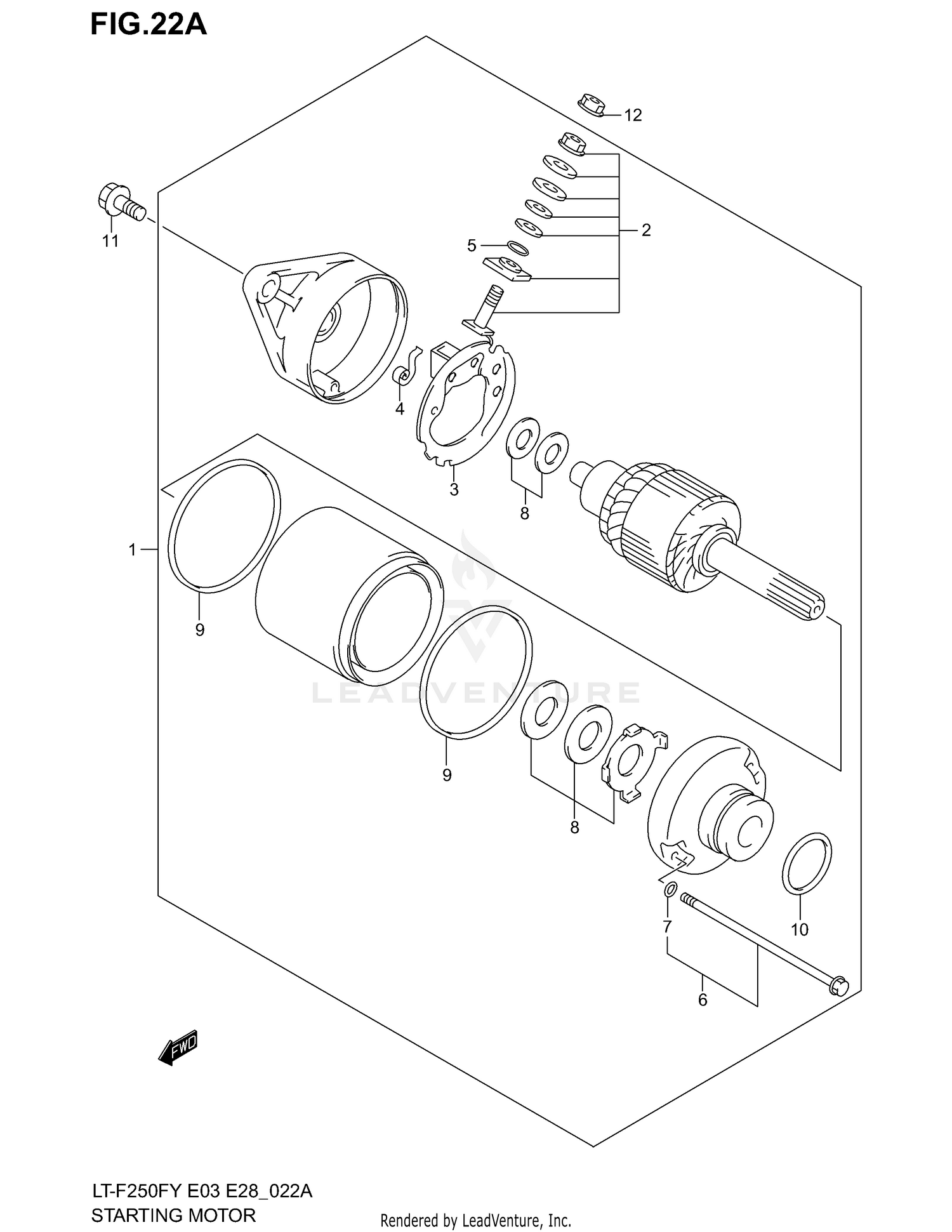

Starting Motor (model Y/k1/k2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MOTOR ASSY, STARTING
31100-19B20
|
$709.24 | ||
|
Available to order. Add to View Price |
|||
|
#2
.TERMINAL SET, BRUSH
31130-13E00
|
$57.04 | ||
|
Available to order. Add to View Price |
|||
|
#3
BRUSH HOLDER SET
31132-33E00
|
$75.71 | ||
|
Available to order. Add to View Price |
|||
|
#4
..SPRING, BRUSH
31135-31300
|
$6.59 | ||
|
Available to order. Add to View Price |
|||
|
#5
O RING
31143-49040
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#6
.SET BOLT
31280-19F00
|
$23.10 | ||
|
Available to order. Add to View Price |
|||
|
#7
O RING
31156-13E00
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER SET
31170-19B10
|
$14.20 | ||
|
Available to order. Add to View Price |
|||
|
#9
O RING
31264-13E00
|
$8.87 | ||
|
Available to order. Add to View Price |
|||
|
#10
O RING (D:3.1,ID:24.4)
09280-25002
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
01547-06253
Superseded by 01547-0625B
|
$3.03 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
08361-35068
Superseded by 08361-3506A
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
