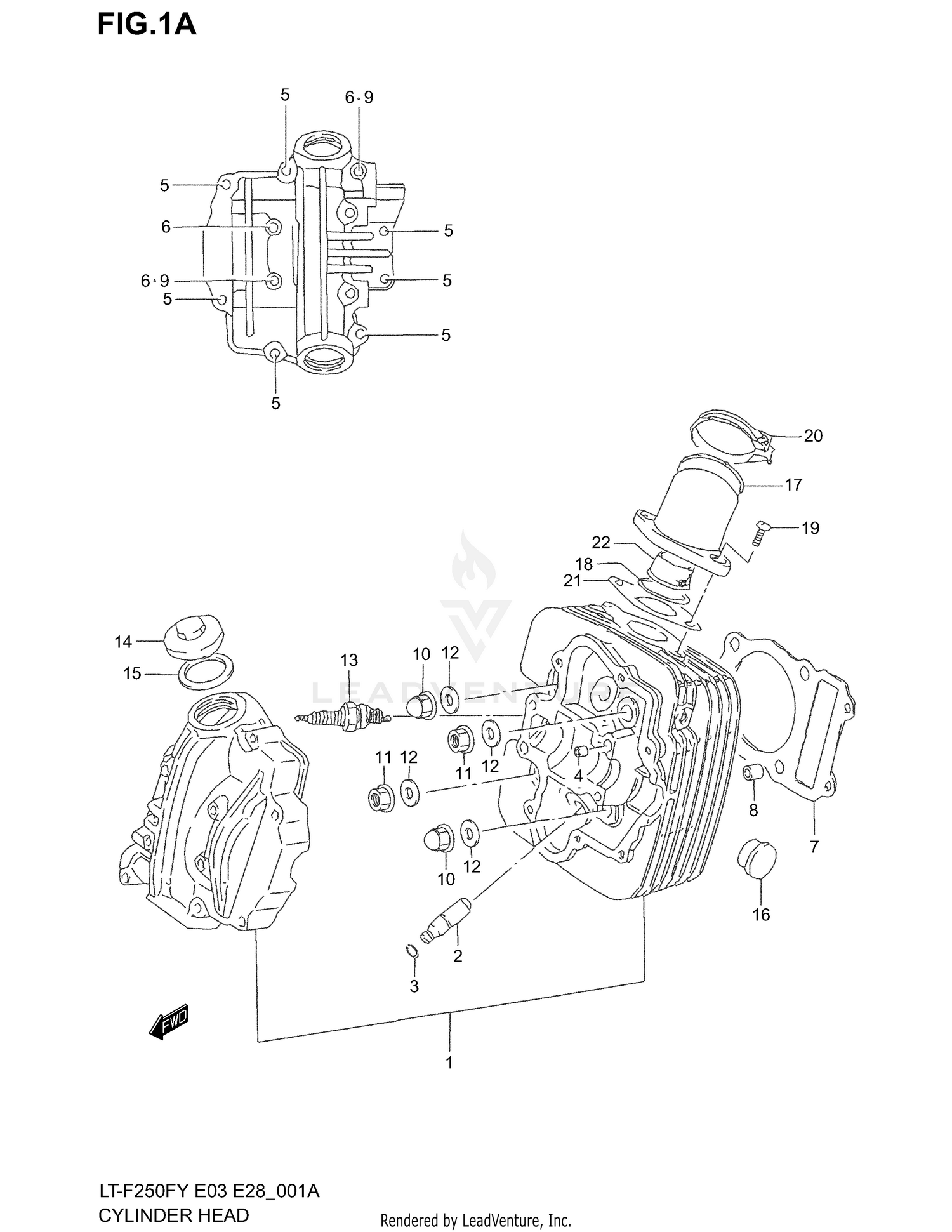

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEAD ASSY, CYLINDER
11100-19B01
|
$555.75 | ||
|
Available to order. Add to View Price |
|||
|
#1
HEAD ASSY, CYLINDER
11100-19B10
|
$696.21 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE, VALVE (OS:0.3)
11115-05270
|
$40.78 | ||
|
Available to order. Add to View Price |
|||
|
#3
.RING,SNAP (10X85)
09381-10004
|
$1.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
PIN
09206-08001
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
01550-06353
Superseded by 01550-0635A
|
$2.79 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
01550-06603
Superseded by 01550-0660A
|
$3.77 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET, CYLINDER HEAD
11141-19B00
|
$19.20 | ||
|
Available to order. Add to View Price |
|||
|
#8
.PIN
04211-11169
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET
09168-06023
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
NUT
09159-08049
|
$5.73 | ||
|
Available to order. Add to View Price |
|||
|
#11
.NUT
08316-10083
Superseded by 08316-1008B
|
$3.21 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET
09168-08021
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPARK PLUG (NGK,DR7EA)
09482-00398
|
$3.64 | ||
|
Unavailable |
|||
|
#13
SPARK PLUG (DENSO,X22ESR-U)
09482-00222
|
$6.61 | ||
|
Available to order. Add to View Price |
|||
|
#14
CAP INSPECTION
11175-18900
Superseded by 11175-18920
|
$15.07 | ||
|
Available to order. Add to View Price |
|||
|
#15
.O RING (D:3,ID:29.5)
09280-30001
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
PLUG, HEAD
09241-22002
|
$6.38 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIPE ASSY,INTAK
13110-19B52
Superseded by 13101-19B51
|
$89.20 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIPE ASSY, INTAKE
13110-39D00
Superseded by 13101-39D00
|
$125.74 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIPE, INTAKE
13101-39D00
|
$125.74 | ||
|
Unavailable |
|||
|
#18
O RING (D:2.1,ID:34.7)
09280-35005
|
$11.03 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW
02112-76203
Superseded by 02112-7620B
|
$3.39 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLAMP
09402-50208
|
$5.81 | ||
|
Available to order. Add to View Price |
|||
|
#21
GASKET, INTAKE PIPE
13120-19B01
|
$5.83 | ||
|
Available to order. Add to View Price |
|||
|
#22
NET, INTAKE
13130-19B50
|
$15.63 | ||
|
Available to order. Add to View Price |
|||
