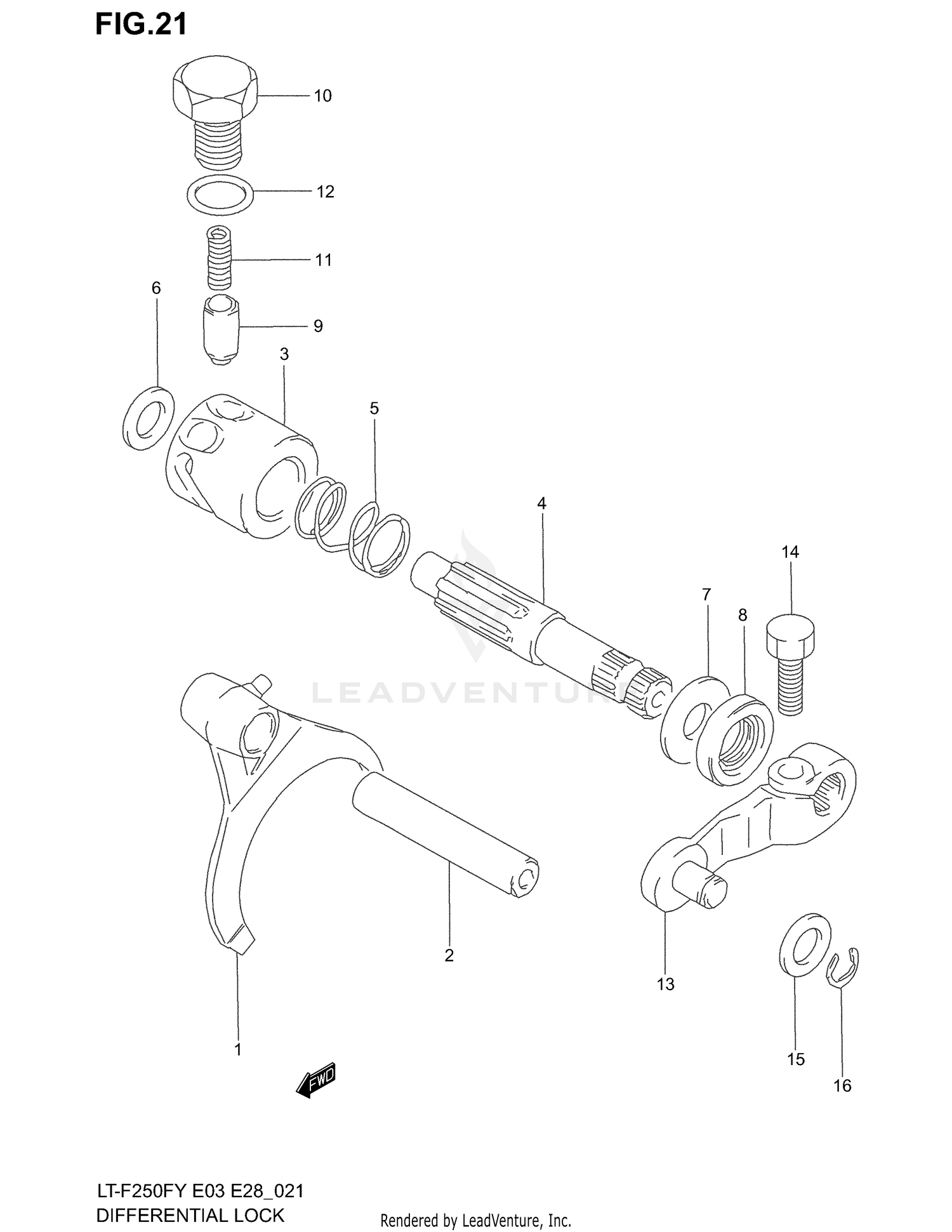

Differential Lock Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FORK, DIFFERENTIAL LOCKING
27941-19B00
|
$85.60 | ||
|
Available to order. Add to View Price |
|||
|
#2
SHAFT, FORK
25421-14301
|
$24.92 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAM, DIFFERENTIAL LOCKING
27911-19B01
|
$66.28 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHAFT, CAM
27921-19B01
|
$72.30 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING
09440-17008
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, RH (10X18X1.0)
09181-10167
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, LH
08211-12241
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#8
SEAL,OIL (12X22X9)
09285-12006
|
$7.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
STOPPER
25351-39300
|
$11.07 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOUSING
25352-11010
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING
09440-05035
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#12
.GASKET (13.8X18.8X4.8)
09168-14002
|
$2.75 | ||
|
Unavailable |
|||
|
#13
ARM, DIFFERENTIAL LOCKING
25360-19B00
|
$71.72 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, GEAR SHIFT LINK
01500-06203
Superseded by 01500-0620A
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER,LOCK
08322-01083
Superseded by 08322-0108A
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#16
E-RING
08332-11063
Superseded by 08332-1106A
|
$1.73 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
