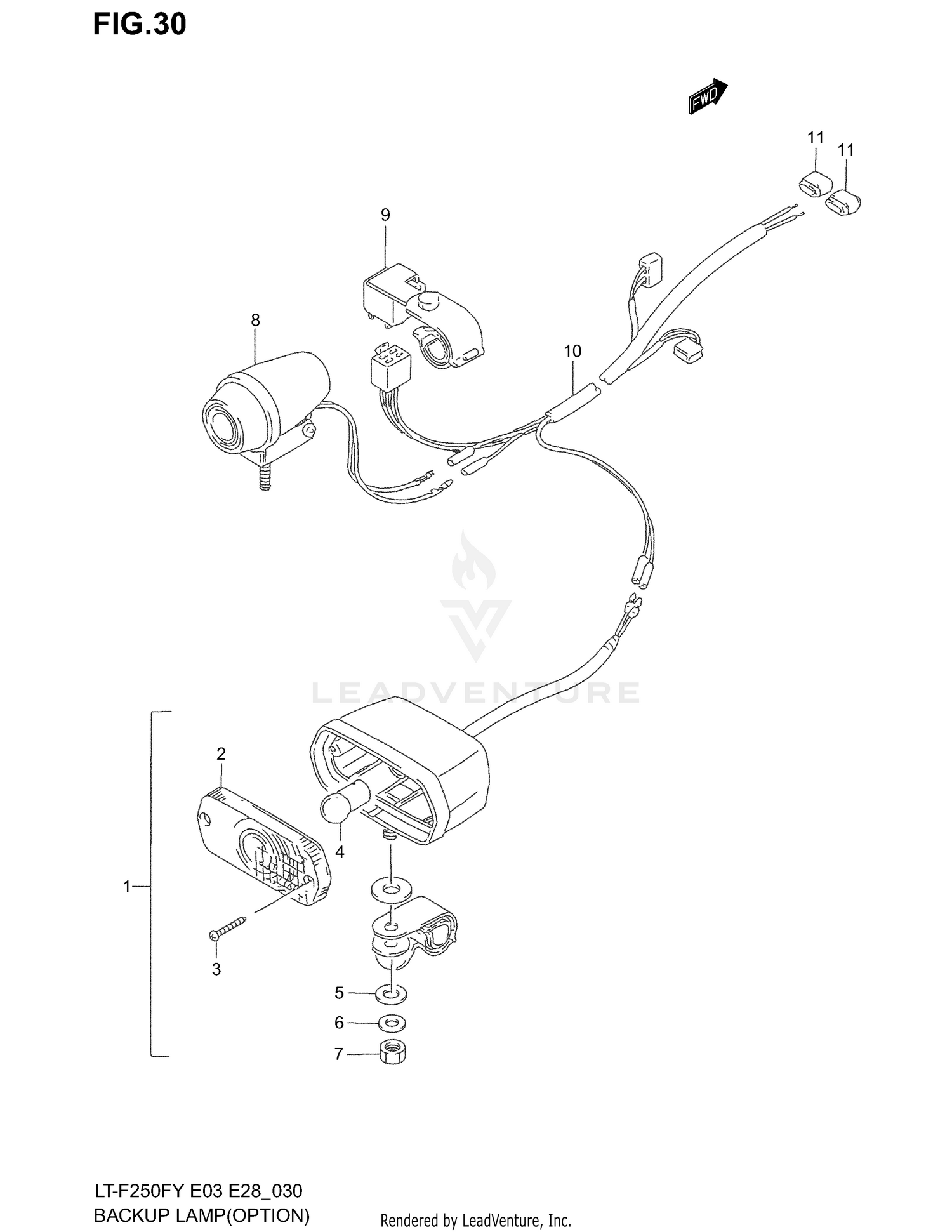

Backup Lamp (optional) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
BACKUP LAMP & BUZZER SET
38700-19860
|
$27.95 | ||
|
Unavailable |
|||
|
#1
LAMP ASSY, BACKUP
36250-19B00
|
$11.95 | ||
|
Available to order. Add to View Price |
|||
|
#2
LENS
36252-19B00
|
$3.84 | ||
|
Unavailable |
|||
|
#3
SCREW
03511-04203
Superseded by 03511-0420B
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#4
BULB,12V10W
09471-12003
Superseded by 09471-12142
|
$7.43 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER
08322-01087
|
$2.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
.WASHER
08321-01087
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
NUT
08310-00087
|
$2.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
BUZZER ASSY, BACKUP
38751-19B00
|
$9.95 | ||
|
Available to order. Add to View Price |
|||
|
#9
RELAY ASSY, BACKUP
38752-19B00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
LEAD WIRE
36856-19B00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CONNECTOR
36859-36590
|
$9.72 | ||
|
Available to order. Add to View Price |
|||
