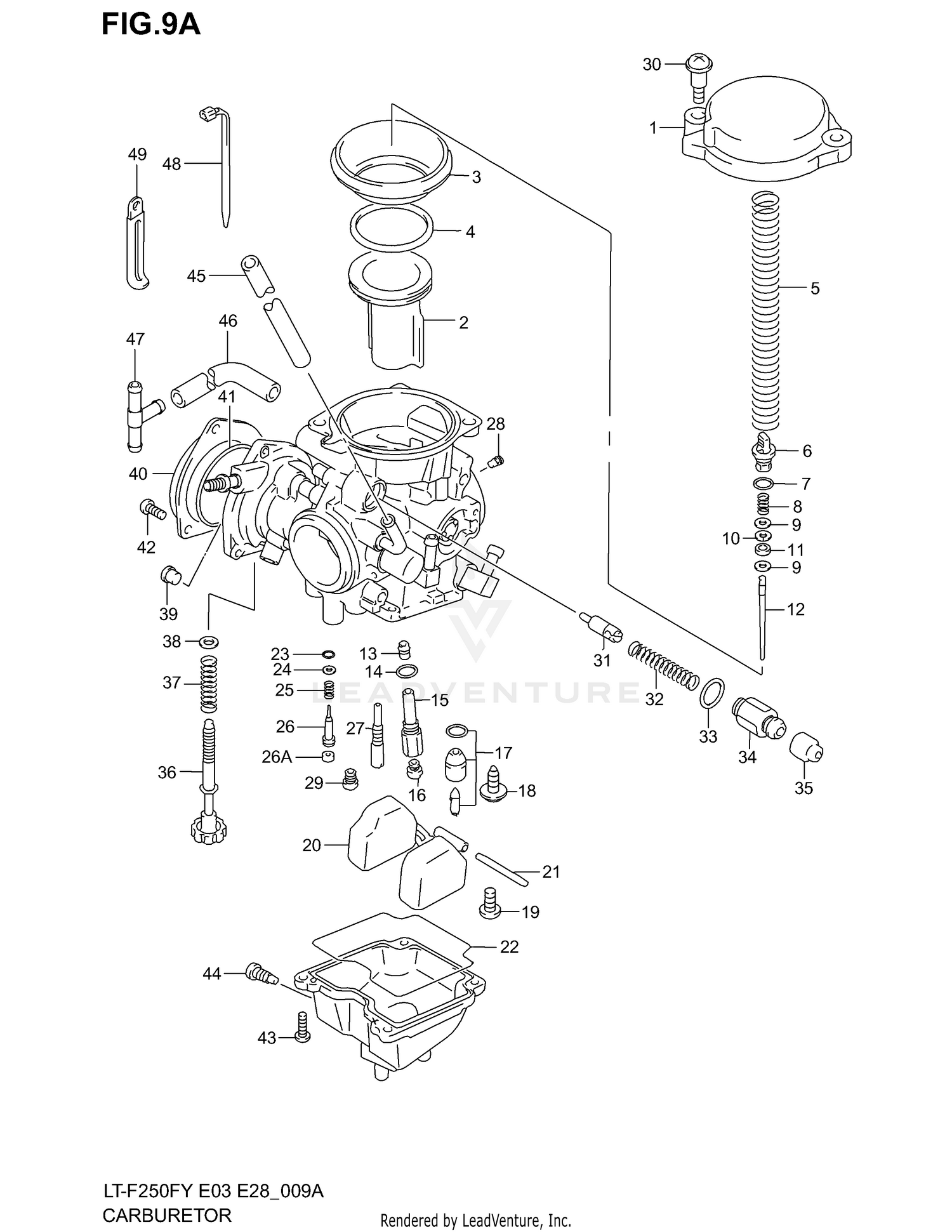

Carburetor (model Y/k1/k2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
CARBURETOR ASSY
13200-20B00
Superseded by 13200-20B02
|
$585.18 | ||
|
Available to order. Add to View Price |
|||
|
#
CARBURETOR ASSY
13200-20B20
Superseded by 13200-20B22
|
$592.66 | ||
|
Available to order. Add to View Price |
|||
|
#1
DIAPHRAGM COVER ASSY
13502-20B00
|
$55.79 | ||
|
Available to order. Add to View Price |
|||
|
#2
VALVE, PISTON
13501-19E30
|
$99.48 | ||
|
Available to order. Add to View Price |
|||
|
#3
DIAPHRAGM
13507-20B00
Superseded by 13507-20B01
|
$49.32 | ||
|
Available to order. Add to View Price |
|||
|
#4
RING
13504-16E00
|
$7.04 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING
13573-04F00
|
$15.44 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOLDER
13418-33E00
|
$7.33 | ||
|
Available to order. Add to View Price |
|||
|
#7
O RING (D:1.9,ID:4.8)
09280-05004
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING
13481-04F00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER
13382-12F40
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#10
.E RING,MULTIPLE JET NOZZLE
13394-17E60
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#11
RING
13387-13F00
|
$10.54 | ||
|
Available to order. Add to View Price |
|||
|
#12
NEEDLE, JET (5D111-3)
13383-20B00
|
$18.28 | ||
|
Available to order. Add to View Price |
|||
|
#12
NEEDLE, JET (5D114-1)
13383-20B20
|
$14.05 | ||
|
Unavailable |
|||
|
#13
JET, NEEDLE (P-0M)
09494-00921
|
$53.83 | ||
|
Available to order. Add to View Price |
|||
|
#14
.O RING
13246-43010
Superseded by 13246-43011
|
$5.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
HOLDER, JET
13385-13F00
|
$38.54 | ||
|
Available to order. Add to View Price |
|||
|
#16
JET, MAIN (117.5)
09491-23019
|
$13.67 | ||
|
Available to order. Add to View Price |
|||
|
#17
VALVE ASSY,NEED
13370-33E80
Superseded by 13370-33E81
|
$73.16 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW
13602-05A10
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW
02112-04083
Superseded by 02112-0408A
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#20
FLOAT ASSY
13250-04F00
|
$44.84 | ||
|
Available to order. Add to View Price |
|||
|
#21
.PIN,FLOAT
13254-01010
|
$4.81 | ||
|
Available to order. Add to View Price |
|||
|
#22
GASKET
13258-04F00
|
$12.78 | ||
|
Available to order. Add to View Price |
|||
|
#23
.O-RING
13295-29900
Superseded by 13295-29901
|
$5.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
.WASHER (14X17)
13291-29900
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#25
.SPRING,THROTTLE SCREW
13268-48700
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#26
ADJUSTER (2 3/4)
13279-20B00
|
$14.20 | ||
|
Available to order. Add to View Price |
|||
|
#26A
PLUG
13281-05A00
|
$5.94 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
JET, PILOT (15)
09492-15017
|
$23.33 | ||
|
Available to order. Add to View Price |
|||
|
#28
JET, PILOT AIR (160)
09493-32007
|
$18.34 | ||
|
Available to order. Add to View Price |
|||
|
#29
JET, MAIN (67.5)
09491-67004
|
$11.45 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW
13247-33E00
|
$3.79 | ||
|
Available to order. Add to View Price |
|||
|
#31
PLUNGER ASSY
13411-20B00
|
$21.73 | ||
|
Available to order. Add to View Price |
|||
|
#32
SPRING
13417-07F00
|
$9.32 | ||
|
Available to order. Add to View Price |
|||
|
#33
.O RING (16)
13278-47090
Superseded by 13278-47091
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#34
HOLDER, GUIDE
13418-07F00
|
$16.05 | ||
|
Available to order. Add to View Price |
|||
|
#35
.CAP
13681-04010
Superseded by 13681-04011
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#36
ADJUST SCREW
13267-20B00
|
$16.60 | ||
|
Available to order. Add to View Price |
|||
|
#37
SPRING
13268-03110
|
$6.17 | ||
|
Available to order. Add to View Price |
|||
|
#38
O RING
13278-45010
|
$7.12 | ||
|
Available to order. Add to View Price |
|||
|
#39
GUIDE, CABLE
13591-19B50
|
$13.28 | ||
|
Available to order. Add to View Price |
|||
|
#40
COVER
13502-02C10
|
$18.59 | ||
|
Available to order. Add to View Price |
|||
|
#41
O RING
13673-02C10
|
$30.17 | ||
|
Available to order. Add to View Price |
|||
|
#42
SCREW
02112-04063
Superseded by 02112-0406B
|
$1.94 | ||
|
Available to order. Add to View Price |
|||
|
#43
SCREW
02112-04107
|
$1.94 | ||
|
Available to order. Add to View Price |
|||
|
#44
SCREW, DRAIN
13247-02340
|
$6.44 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#45
HOSE(4.5X8X650)
13683-20B00
Superseded by 13683-20B01
|
$23.41 | ||
|
Available to order. Add to View Price |
|||
|
#46
HOSE, AIR VENT (7X11)
13686-20B00
|
$37.46 | ||
|
Unavailable |
|||
|
#47
UNION, 3 WAY
09367-08004
|
$5.26 | ||
|
Available to order. Add to View Price |
|||
|
#48
CLAMP, BOOST HOSE
09407-14403
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#49
CLAMP, AIR VENT HOSE
09404-06435
|
$4.01 | ||
|
Available to order. Add to View Price |
|||
