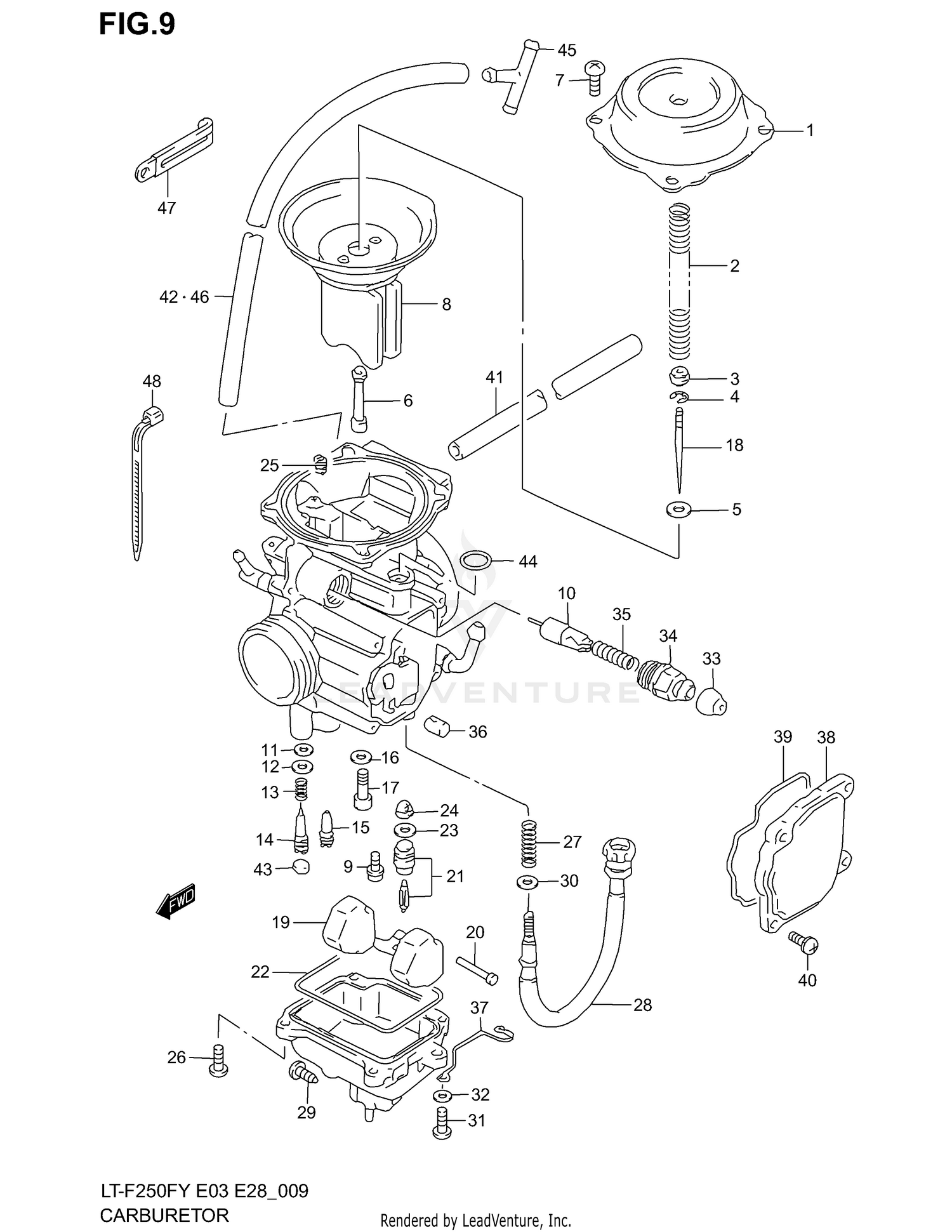

Carburetor (model X) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
CARBURETOR ASSY
13200-19BA1
Superseded by 13200-19BA3
|
$543.06 | ||
|
Unavailable |
|||
|
#
NO DESCRIPTION AVAILABLE
13200-39D00
Superseded by 13200-39D01
|
$527.68 | ||
|
Unavailable |
|||
|
#1
.COVER,DIAPHRAGM
13502-42A00
|
$41.56 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPRING
13417-42A00
|
$8.63 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
SPRING
13417-26B00
|
$8.15 | ||
|
Available to order. Add to View Price |
|||
|
#3
RING
13382-42A00
|
$5.53 | ||
|
Available to order. Add to View Price |
|||
|
#4
E RING
13394-10010
|
$5.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
.E RING
13394-40D20
|
$5.90 | ||
|
Available to order. Add to View Price |
|||
|
#5
RING
13387-47010
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
|
#6
JET, NEEDLE (P-4)
09494-00512
|
$19.86 | ||
|
Available to order. Add to View Price |
|||
|
#6
JET, NEEDLE (O-6M)
09494-00911
|
$47.95 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW
02112-04087
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW
02112-04083
Superseded by 02112-0408A
|
$1.33 | ||
|
Available to order. Add to View Price |
|||
|
#8
DIAPHRAGM ASSY
13500-19B62
Superseded by 13500-19B63
|
$230.58 | ||
|
Available to order. Add to View Price |
|||
|
#8
DIAPHRAGM ASSY
13500-39D00
Superseded by 13500-39D01
|
$233.31 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW
13602-43410
|
$3.51 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLUNGER ASSY
13411-19B50
|
$18.96 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLUNGER ASSY
13411-19BE0
|
$16.68 | ||
|
Available to order. Add to View Price |
|||
|
#11
.O-RING
13295-29900
Superseded by 13295-29901
|
$5.36 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
.WASHER (14X17)
13291-29900
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#13
.SPRING
13268-47070
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, PILOT (2 7/8)
13279-47070
|
$16.51 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, PILOT (2,0)
13279-47070
|
$16.51 | ||
|
Unavailable |
|||
|
#15
JET, PILOT (40)
09492-40014
|
$11.58 | ||
|
Available to order. Add to View Price |
|||
|
#15
JET, PILOT (25)
09492-25005
|
$11.80 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER
13382-03110
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#17
JET, MAIN (122.5)
09491-24013
|
$11.97 | ||
|
Available to order. Add to View Price |
|||
|
#17
JET, MAIN (117.5)
09491-23017
|
$12.43 | ||
|
Available to order. Add to View Price |
|||
|
#18
NEEDLE, JET (5D67-3)
13383-19B60
|
$15.77 | ||
|
Available to order. Add to View Price |
|||
|
#18
NEEDLE, JET (5D84-1)
13383-39D00
|
$13.37 | ||
|
Available to order. Add to View Price |
|||
|
#19
FLOAT
13250-42A00
|
$42.11 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN
13254-92311
|
$2.32 | ||
|
Available to order. Add to View Price |
|||
|
#21
.NEEDLE VALVE
13370-44500
|
$62.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
.O RING,FLOAT CHAMBER
13251-42A00
|
$11.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
.O RING,NEEDLE VALVE SEAT
13374-44080
Superseded by 13374-35C00
|
$7.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
FILTER
13376-84110
Superseded by 13376-19F00
|
$12.71 | ||
|
Available to order. Add to View Price |
|||
|
#25
JET, PILOT AIR (160)
09493-32002
|
$17.40 | ||
|
Available to order. Add to View Price |
|||
|
#25
JET, PILOT AIR (170)
09493-34001
|
$15.79 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW
02112-04123
Superseded by 02112-0412A
|
$1.50 | ||
|
Available to order. Add to View Price |
|||
|
#27
SPRING
13268-19B50
|
$4.64 | ||
|
Available to order. Add to View Price |
|||
|
#28
ADJUSTER
13267-19B70
|
$64.40 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW, DRAIN
13247-13A00
Superseded by 13247-02340
|
$6.16 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
WASHER
13615-45010
|
$3.51 | ||
|
Available to order. Add to View Price |
|||
|
#31
SCREW
02112-04163
Superseded by 02112-0416A
|
$1.50 | ||
|
Available to order. Add to View Price |
|||
|
#31
SCREW
13602-04168
|
$3.76 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER
08322-01043
Superseded by 08322-0104A
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#33
.CAP
13681-04010
Superseded by 13681-04011
|
$6.09 | ||
|
Available to order. Add to View Price |
|||
|
#34
HOLDER, GUIDE
13418-43410
|
$8.92 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
.SPRING,STARTER VALVE
13417-43010
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#36
GUIDE, CABLE
13591-19B50
|
$12.71 | ||
|
Available to order. Add to View Price |
|||
|
#37
CLIP
13692-19B60
|
$9.96 | ||
|
Available to order. Add to View Price |
|||
|
#38
COVER
13502-19B50
|
$21.72 | ||
|
Available to order. Add to View Price |
|||
|
#39
O RING
13251-19B50
|
$13.30 | ||
|
Available to order. Add to View Price |
|||
|
#40
SCREW
13602-19B50
|
$4.23 | ||
|
Available to order. Add to View Price |
|||
|
#41
HOSE(4.5X8.5X60
09355-45855-600
Superseded by 09355-45001-600
|
$11.54 | ||
|
Available to order. Add to View Price |
|||
|
#42
HOSE
13683-19B80
Superseded by 13683-19B81
|
$18.76 | ||
|
Available to order. Add to View Price |
|||
|
#43
PLUG
13281-05A00
|
$5.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#44
O RING (D:1.7,ID:6)
09280-06008
|
$2.48 | ||
|
Available to order. Add to View Price |
|||
|
#45
UNION, 3 WAY
09367-08004
|
$5.08 | ||
|
Available to order. Add to View Price |
|||
|
#46
HOSE, AIR VENT
09359-50823-00B
|
$24.24 | ||
|
Unavailable |
|||
|
#47
CLAMP, AIR VENT HOSE
09404-06435
|
$3.87 | ||
|
Available to order. Add to View Price |
|||
|
#48
CLAMP, BOOST HOSE
09407-14403
|
$2.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
