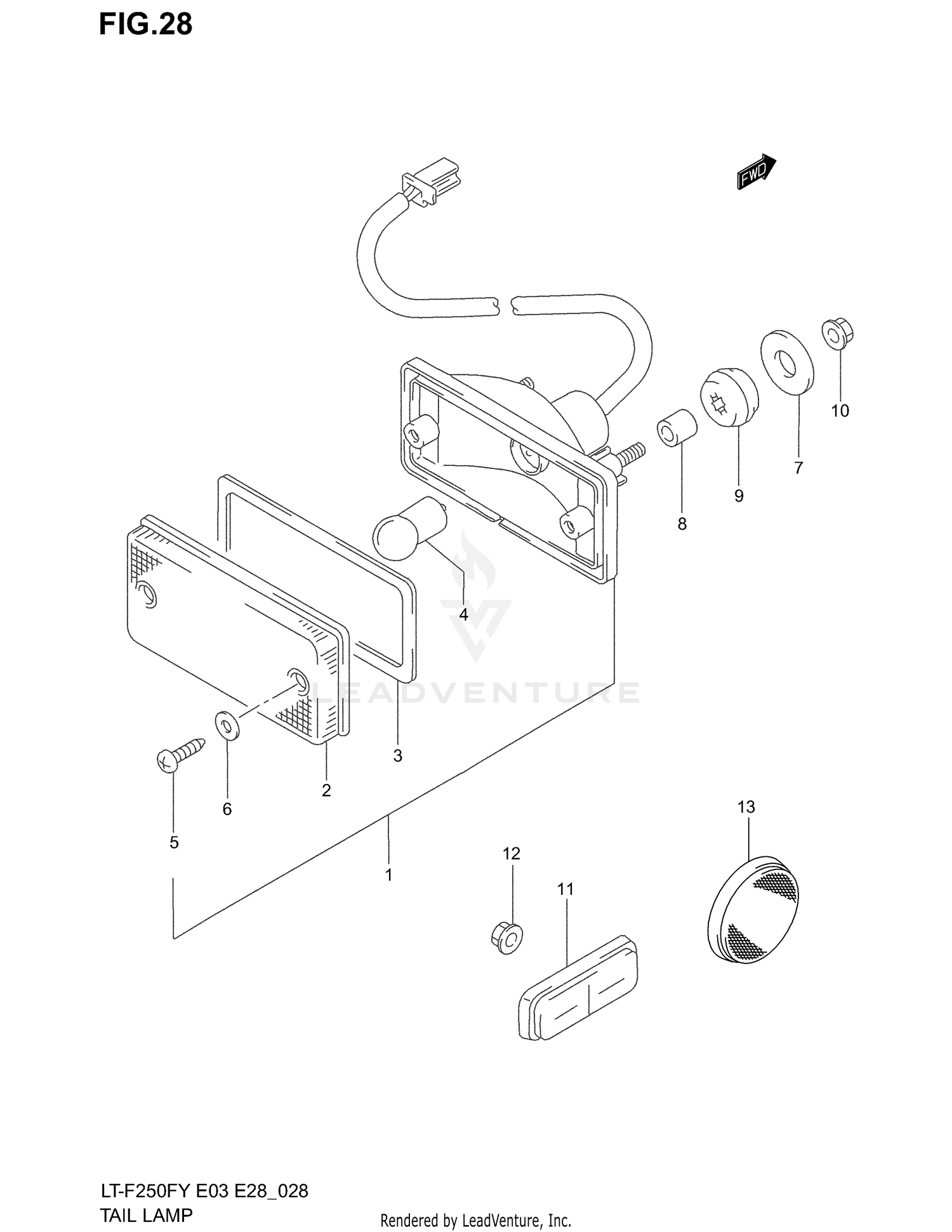

Tail Lamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LAMP ASSY, TAIL
35710-41B02
|
$47.91 | ||
|
Available to order. Add to View Price |
|||
|
#1
LAMP ASSY, TAIL
35710-02C00
|
$119.71 | ||
|
Available to order. Add to View Price |
|||
|
#2
LENS
35712-18A32
|
$48.94 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET
35713-18A30
|
$10.46 | ||
|
Available to order. Add to View Price |
|||
|
#4
BULB (12V5W)
09471-12140
Superseded by 09471-12058
|
$1.67 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW
03212-04169
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET
35627-43010
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER (6.5X20X1.6)
09160-06088
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPACER (6.5X10X12)
09180-06290
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#9
CUSHION
09320-09010
|
$3.33 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
08316-10063
Superseded by 08316-1006B
|
$3.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
REFLECTOR ASSY, RR SIDE
35970-07F00
Superseded by 35970-07F01
|
$25.79 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
08316-10053
Superseded by 08316-1005A
|
$2.64 | ||
|
Available to order. Add to View Price |
|||
|
#13
REFLECTOR ASSY, REAR
35970-14A10
|
$20.32 | ||
|
Available to order. Add to View Price |
|||
