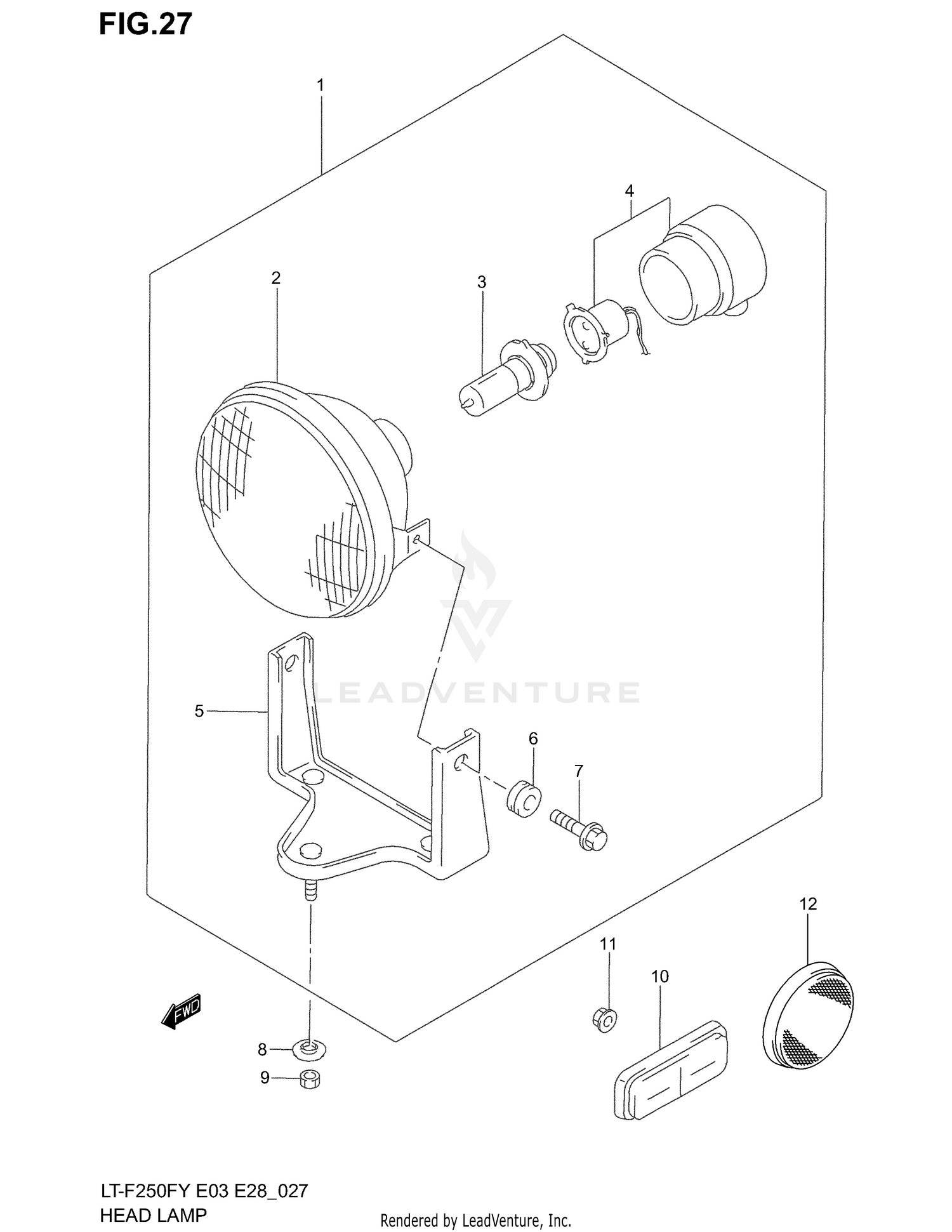

Headlamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEADLAMP ASSY
35100-19B30
|
$253.53 | ||
|
Available to order. Add to View Price |
|||
|
#2
UNIT, LAMP
35121-19B30
|
$74.41 | ||
|
Available to order. Add to View Price |
|||
|
#3
BULB (12V,30/30W)
09471-12093
|
$37.02 | ||
|
Available to order. Add to View Price |
|||
|
#4
SOCKET
35171-19B03
|
$37.02 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRACKET, LAMP
35141-19B30
|
$37.11 | ||
|
Available to order. Add to View Price |
|||
|
#6
CUSHION
35139-45230
|
$2.26 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
35181-19B30
|
$3.18 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER
09169-06028
Superseded by 09169-06041
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT
08310-00063
Superseded by 08310-0006A
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#10
REFLEX REFLECTOR ASSY, FR
35950-43431
|
$20.14 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
08316-10053
Superseded by 08316-1005A
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#12
REFLEX REFLECTOR ASSY, FR
35950-14A00
|
$22.49 | ||
|
Available to order. Add to View Price |
|||
