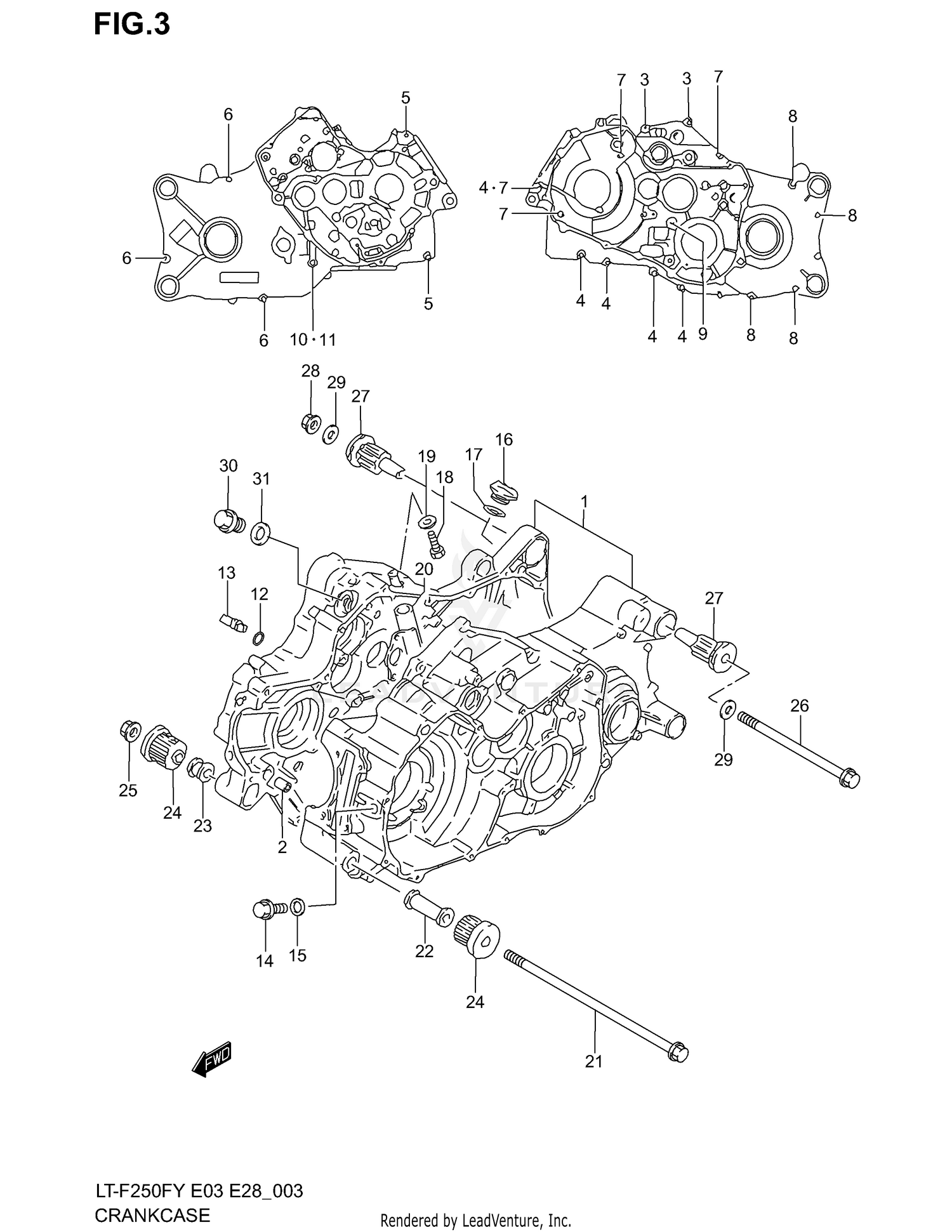

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE SET
11301-19860
Superseded by 11301-19862
|
$1,043.84 | ||
|
Unavailable |
|||
|
#1
CRANKCASE SET
11301-19861
Superseded by 11301-19862
|
$1,043.84 | ||
|
Unavailable |
|||
|
#1
CRANKCASE SET
11301-19862
|
$1,043.84 | ||
|
Unavailable |
|||
|
#2
PIN (10.4X13X18)
04211-13189
|
$2.64 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
BOLT, FINAL GEAR CASE
01547-06303
Superseded by 01547-0630B
|
$3.28 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
BOLT
01547-06403
Superseded by 01547-0640B
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
01547-06453
Superseded by 01547-0645B
|
$3.28 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
01547-06503
Superseded by 01547-0650B
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
01547-06653
Superseded by 01547-0665B
|
$3.93 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
01547-06903
Superseded by 01547-0690B
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
09103-08072
Superseded by 09103-08363
|
$9.45 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT (8X60)
09103-08217
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET
09168-08021
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#12
O RING (D:1.2,ID:4)
09280-04004
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
JET,OIL GALY (#18)
09493-36004
|
$17.72 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLUG, TDC
09247-14015
|
$4.68 | ||
|
Available to order. Add to View Price |
|||
|
#15
.GASKET (13.8X18.8X4.8)
09168-14002
|
$2.75 | ||
|
Unavailable |
|||
|
#16
CAP, OIL FILLER
09200-30810
|
$12.35 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-RING (D:3.1,ID:26.4)
09280-26006
|
$3.36 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLUG, OIL DRAIN
09247-12106
|
$3.28 | ||
|
Available to order. Add to View Price |
|||
|
#19
GASKET
09168-12002
|
$1.92 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
PIPE, BREATHER
11380-19B40
Superseded by 11380-19B41
|
$13.69 | ||
|
Unavailable |
|||
|
#20
PIPE, BREATHER
11380-19B41
|
$13.69 | ||
|
Unavailable |
|||
|
#21
BOLT (L:300)
09103-12016
|
$27.61 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPACER (L:60)
11610-19B00
|
$11.59 | ||
|
Unavailable |
|||
|
#23
SPACER
11611-17E00
Superseded by 11611-19B13
|
$12.96 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPACER
11611-19B13
|
$12.96 | ||
|
Unavailable |
|||
|
#24
BUSH (L:41)
11681-20B00
|
$36.66 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT
08319-31128
Superseded by 08319-3112A
|
$4.57 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT (10X240)
09103-10221
|
$23.72 | ||
|
Available to order. Add to View Price |
|||
|
#27
BUSH (L:85)
11650-19B10
|
$40.55 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT
09159-10047
|
$11.63 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER
08322-01103
Superseded by 08322-0110A
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
PLUG, REVERSE SWITCH HOLE
11398-19BA0
|
$10.05 | ||
|
Available to order. Add to View Price |
|||
|
#31
O RING (D:3.2,ID:15.8)
09280-16008
|
$2.12 | ||
|
Available to order. Add to View Price |
|||
