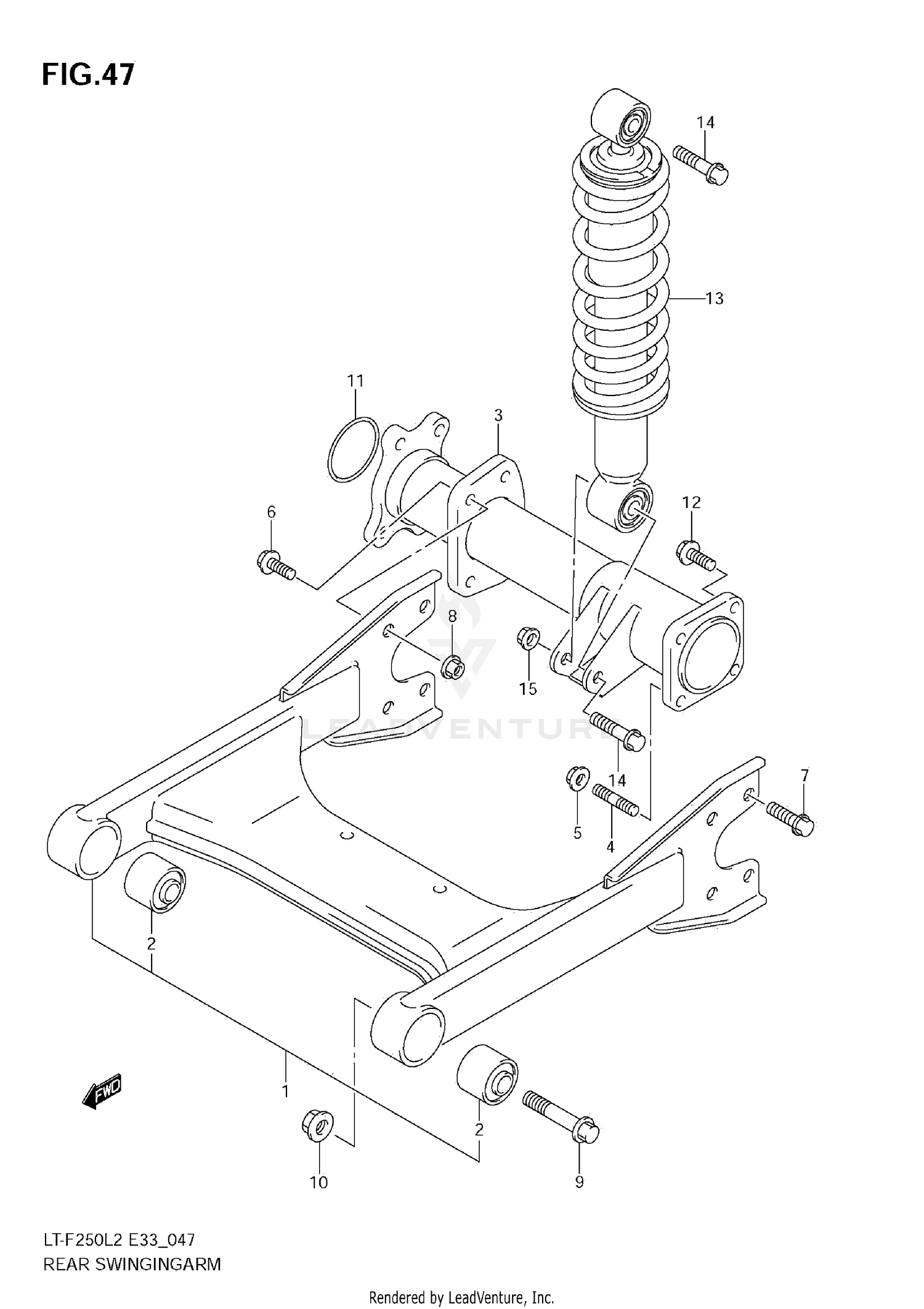

Rear Swingingarm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWINGINGARM SET, REAR
61100-05850
|
$438.86 | ||
|
Unavailable |
|||
|
#2
BUSH, PIVOT
61230-38F00
|
$46.81 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOUSING, RR AXLE, R
61300-05G20
|
$377.23 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, AXLE HOUSING FRONT
01421-1025A
|
|||
|
Unavailable |
|||
|
#5
NUT
08316-1010B
|
$3.21 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT (10X20)
09103-10216
|
$5.16 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
01550-1030B
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT
09159-10115
|
$4.33 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT (12X57)
09103-12042
|
$8.93 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
09159-12054
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
|
#11
O RING (D:3.1,ID:69.4)
09280-70005
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
01550-1030B
|
$3.91 | ||
|
Unavailable |
|||
|
#13
ABSORBER ASSY,R
62100-05G10-019
Superseded by 62100-05G11-019
|
$386.08 | ||
|
Unavailable |
|||
|
#14
BOLT (10X50)
09103-10064
|
$5.80 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT
09159-10115
|
$4.33 | ||
|
Unavailable |
|||
