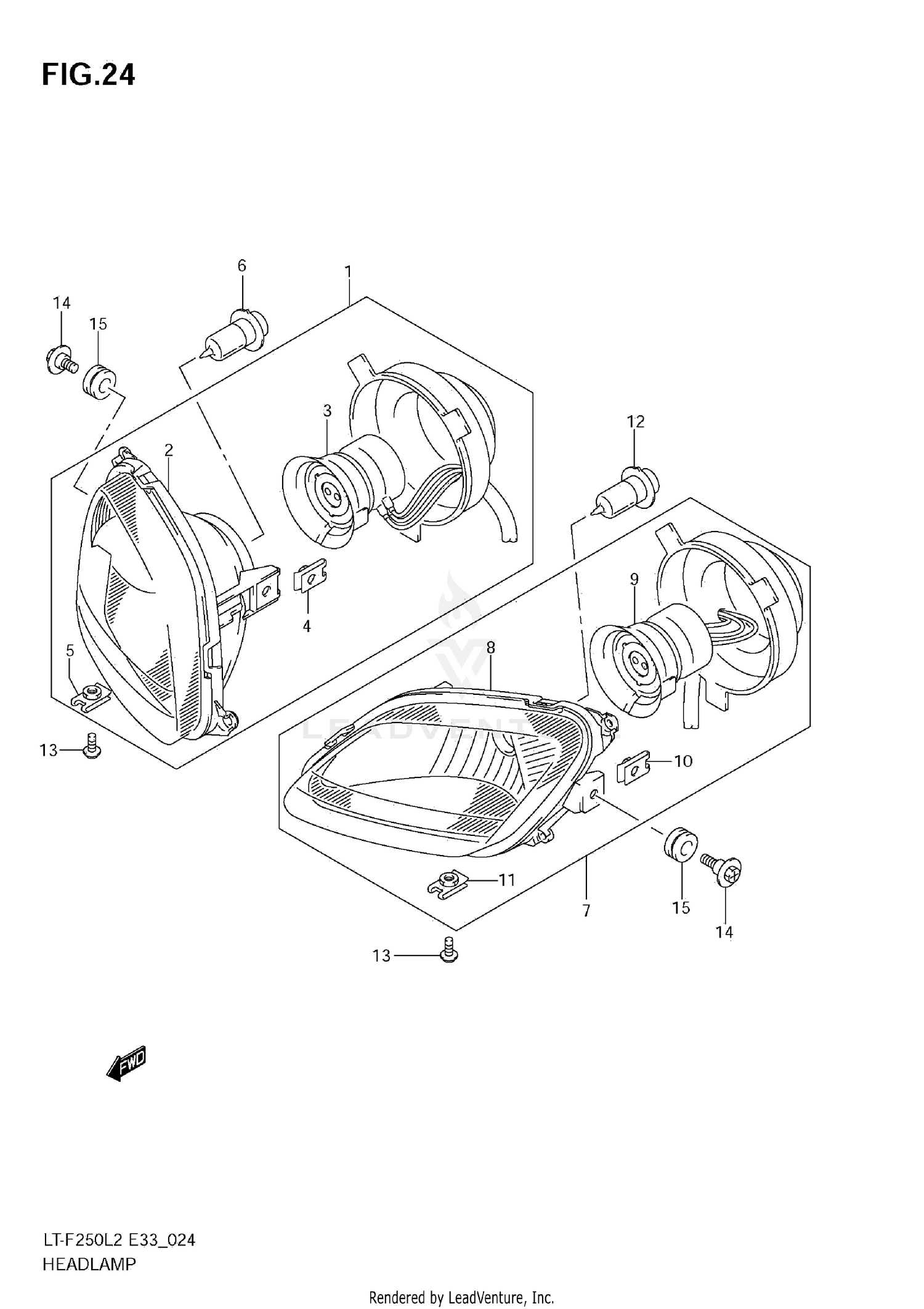

Headlamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEADLAMP ASSY, RH
35100-05G00-999
|
$209.63 | ||
|
Available to order. Add to View Price |
|||
|
#2
UNIT, RH
35121-03G00
|
$187.64 | ||
|
Available to order. Add to View Price |
|||
|
#3
CORD ASSY, RH
35171-05GR0
|
$43.45 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT (M6)
35157-05G90
|
$6.47 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT (M5)
35157-05G50
|
$6.47 | ||
|
Available to order. Add to View Price |
|||
|
#6
BULB (12V,30/30W)
09471-12097
Superseded by 09471-12093
|
$35.77 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
HEADLAMP ASSY, LH
35300-05G00-999
|
$209.63 | ||
|
Available to order. Add to View Price |
|||
|
#8
UNIT, LH
35321-03G00
|
$199.21 | ||
|
Available to order. Add to View Price |
|||
|
#9
CORD ASSY, LH
35171-05GL0
|
$42.65 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT (M6)
35157-05G90
|
$6.47 | ||
|
Unavailable |
|||
|
#11
NUT (M5)
35157-05G50
|
$6.47 | ||
|
Unavailable |
|||
|
#12
BULB (12V,30/30W)
09471-12097
Superseded by 09471-12093
|
$35.77 | ||
|
Unavailable |
|||
|
#13
SCREW (5X16)
09136-05046
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW (6X22.5)
09139-06118
|
$4.12 | ||
|
Available to order. Add to View Price |
|||
|
#15
CUSHION
09320-10501
|
$6.55 | ||
|
Available to order. Add to View Price |
|||
