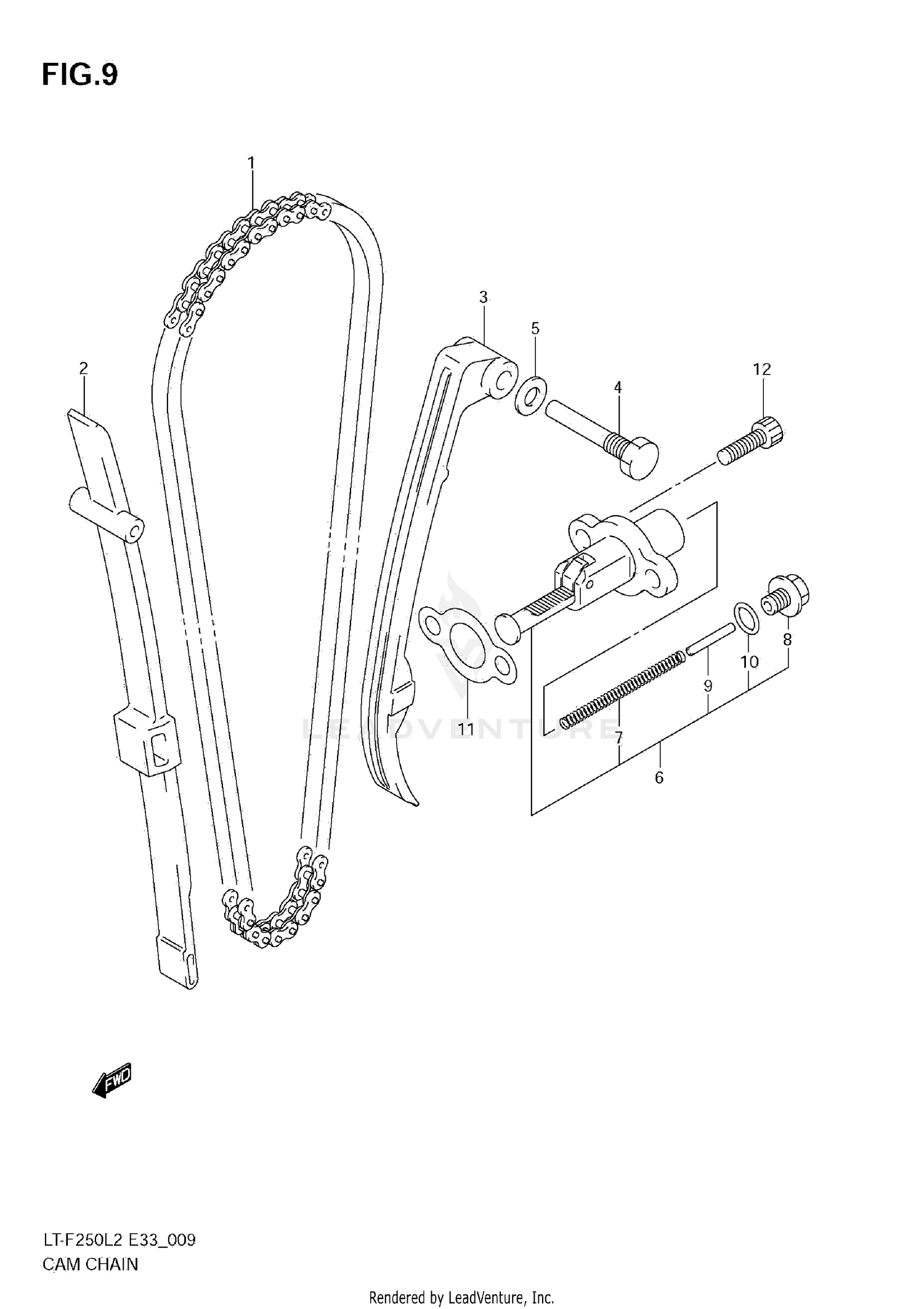

Cam Chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CHAIN, CAM
12760-21G00
|
$107.40 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE,CAM CHAIN
12771-21G00
Superseded by 12771-21G01
|
$35.07 | ||
|
Available to order. Add to View Price |
|||
|
#3
TENSIONER,CAM C
12811-21G00
Superseded by 12811-21G01
|
$38.64 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT,CAM CHAIN TENSIONER
12812-32400
|
$4.72 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET (8.2X14X1)
09168-08016
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
ADJUSTER ASSY, TENSIONER
12830-19B02
|
$122.55 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING
12833-19B00
|
$3.51 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLUG
12834-19B00
|
$18.76 | ||
|
Available to order. Add to View Price |
|||
|
#9
BAR
12835-19B00
|
$3.51 | ||
|
Available to order. Add to View Price |
|||
|
#10
.O-RING
12832-02A00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#11
.GASKET,TENSIONER ADJUSTER
12837-19B10
|
$3.21 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
07130-0620A
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
