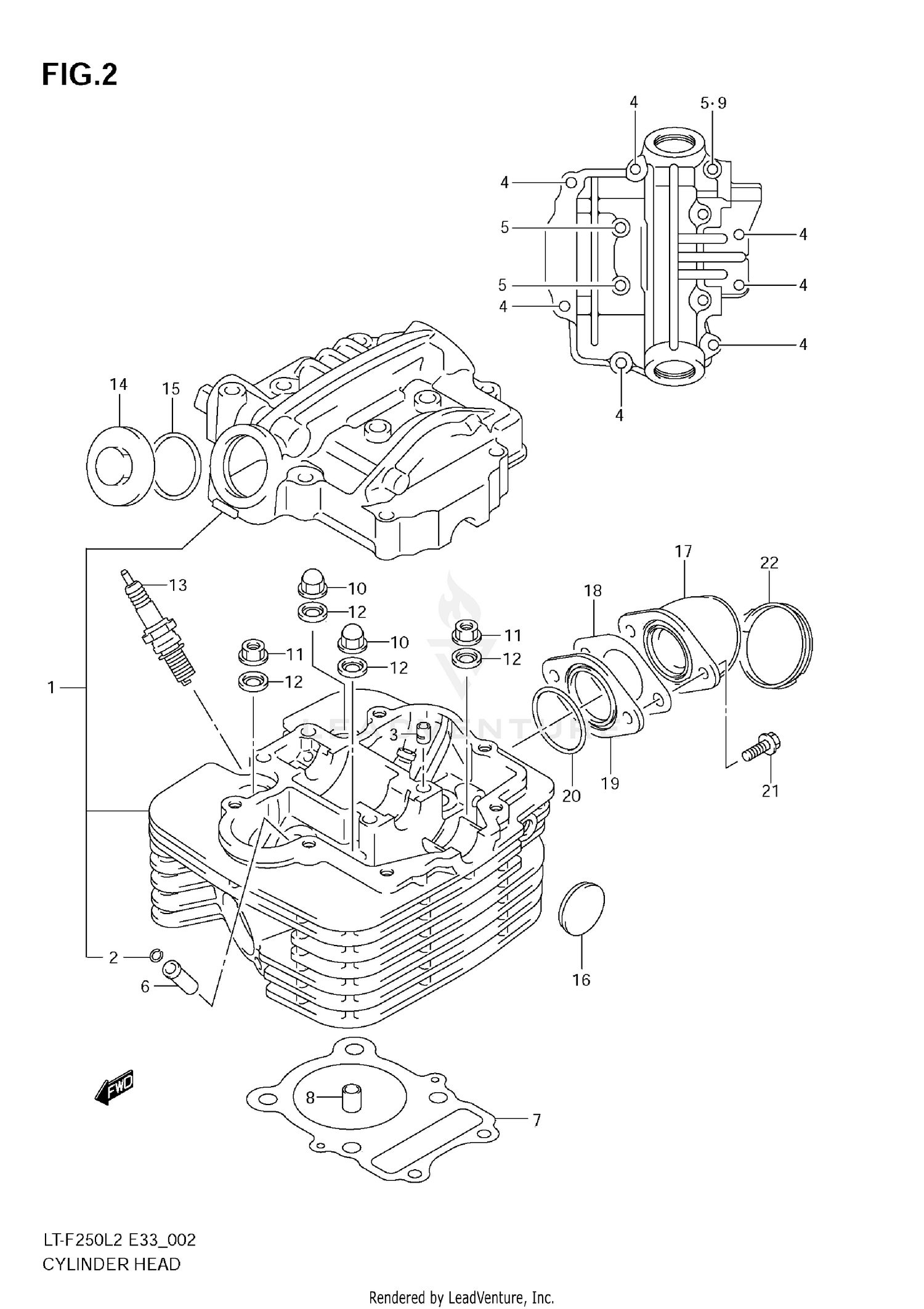

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEAD ASSY, CYLINDER
11100-05G00
|
$842.42 | ||
|
Available to order. Add to View Price |
|||
|
#2
.RING,SNAP (10X85)
09381-10004
|
$1.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
PIN (6.2X8X11)
09206-08001
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
01550-0635A
|
$2.79 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
01550-0660A
|
$3.77 | ||
|
Available to order. Add to View Price |
|||
|
#6
GUIDE, VALVE (OS:0.3)
11115-05270
|
$40.78 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET, CYLINDER HEAD
11141-19B00
|
$19.20 | ||
|
Available to order. Add to View Price |
|||
|
#8
.PIN
04211-11169
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET (5.8X13X1.2)
09168-06023
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
NUT
09159-08049
|
$5.73 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
08316-1008A
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET (8.5X17X2.3)
09168-08021
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPARK PLUG (DR7EA)
09482-00398
|
$3.64 | ||
|
Unavailable |
|||
|
#13
SPARK PLUG (X22ESR-U)
09482-00222
|
$6.61 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPARK PLUG (DR8EA)
09482-00399
|
$3.98 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPARK PLUG (X24ESR-U)
09482-00223
|
$6.21 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPARK PLUG (DR9EA)
09482-00400
|
$6.47 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPARK PLUG (X27ESR-U)
09482-00224
|
$5.01 | ||
|
Unavailable |
|||
|
#14
CAP INSPECTION
11175-18900
Superseded by 11175-18920
|
$15.07 | ||
|
Available to order. Add to View Price |
|||
|
#15
.O RING (D:3,ID:29.5)
09280-30001
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
PLUG
09241-22002
|
$6.38 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIPE,INTAKE
13110-05G00
Superseded by 13110-05G01
|
$40.09 | ||
|
Available to order. Add to View Price |
|||
|
#18
GASKET, INTAKE PIPE
13118-05G00
|
$4.01 | ||
|
Available to order. Add to View Price |
|||
|
#19
INSULATOR, INTAKE PIPE
13117-05G00
|
$11.50 | ||
|
Available to order. Add to View Price |
|||
|
#20
O RING (D:2.1,ID:34.7)
09280-35005
|
$11.03 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT
07120-0620A
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLAMP
09402-46208
|
$5.66 | ||
|
Available to order. Add to View Price |
|||
