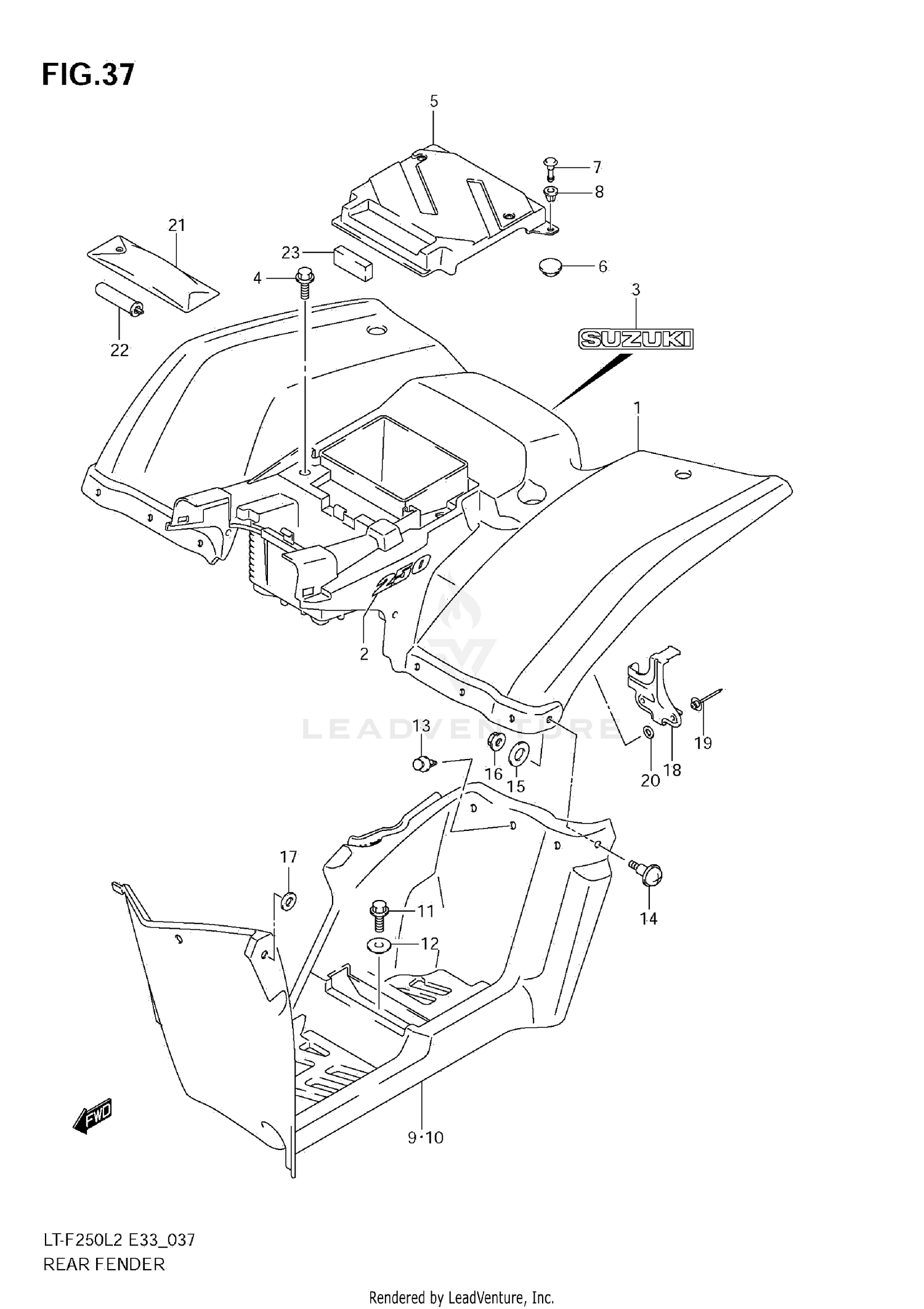

Rear Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, REAR (RED)
63111-05G01-YT9
|
$593.28 | ||
|
Available to order. Add to View Price |
|||
|
#1
FENDER, REAR (GREEN)
63111-05G01-YLG
|
$423.60 | ||
|
Available to order. Add to View Price |
|||
|
#2
EMBLEM, "250"
68171-05G10-HFT
|
$13.90 | ||
|
Available to order. Add to View Price |
|||
|
#3
EMBLEM, "SUZUKI" (GRAY)
68171-05GA0-1ZZ
|
$11.53 | ||
|
Unavailable |
|||
|
#4
BOLT (6X16)
09113-06001
|
$3.33 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, REAR FENDER
63121-05G10
|
$50.85 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP(OD:16)
09250-08007
Superseded by 09250-08020
|
$1.75 | ||
|
Unavailable |
|||
|
#7
GROMMET
09409-08329
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLUNGER
09409-08330
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#9
MUD GUARD, FOOTREST RH (BLACK)
63331-05G00-291
|
$203.27 | ||
|
Available to order. Add to View Price |
|||
|
#10
MUD GUARD, FOOTREST LH (BLACK)
63341-05G00-291
|
$188.18 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
01550-0612B
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER
09169-06076
|
$3.88 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLIP
09409-08335
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW (5X16)
09136-05038
|
$3.66 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER (5.5X20X1.4)
09160-05046
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
NUT
09159-05043
|
$2.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
WASHER, FOOTREST SIDE
53341-38F01
|
$4.14 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLATE, CDI UNIT
47413-05G01
|
$9.32 | ||
|
Unavailable |
|||
|
#19
RIVET
09229-04020
|
$3.08 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER
08322-01047
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#21
TOOL ASSY
09800-21044
Superseded by 09800-21093
|
$18.74 | ||
|
Available to order. Add to View Price |
|||
|
#22
GAUGE ASSY,AIR PRESSUR
96200-18A02
|
$63.63 | ||
|
Available to order. Add to View Price |
|||
|
#23
CUSHION, REAR FENDER
33652-31F00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
