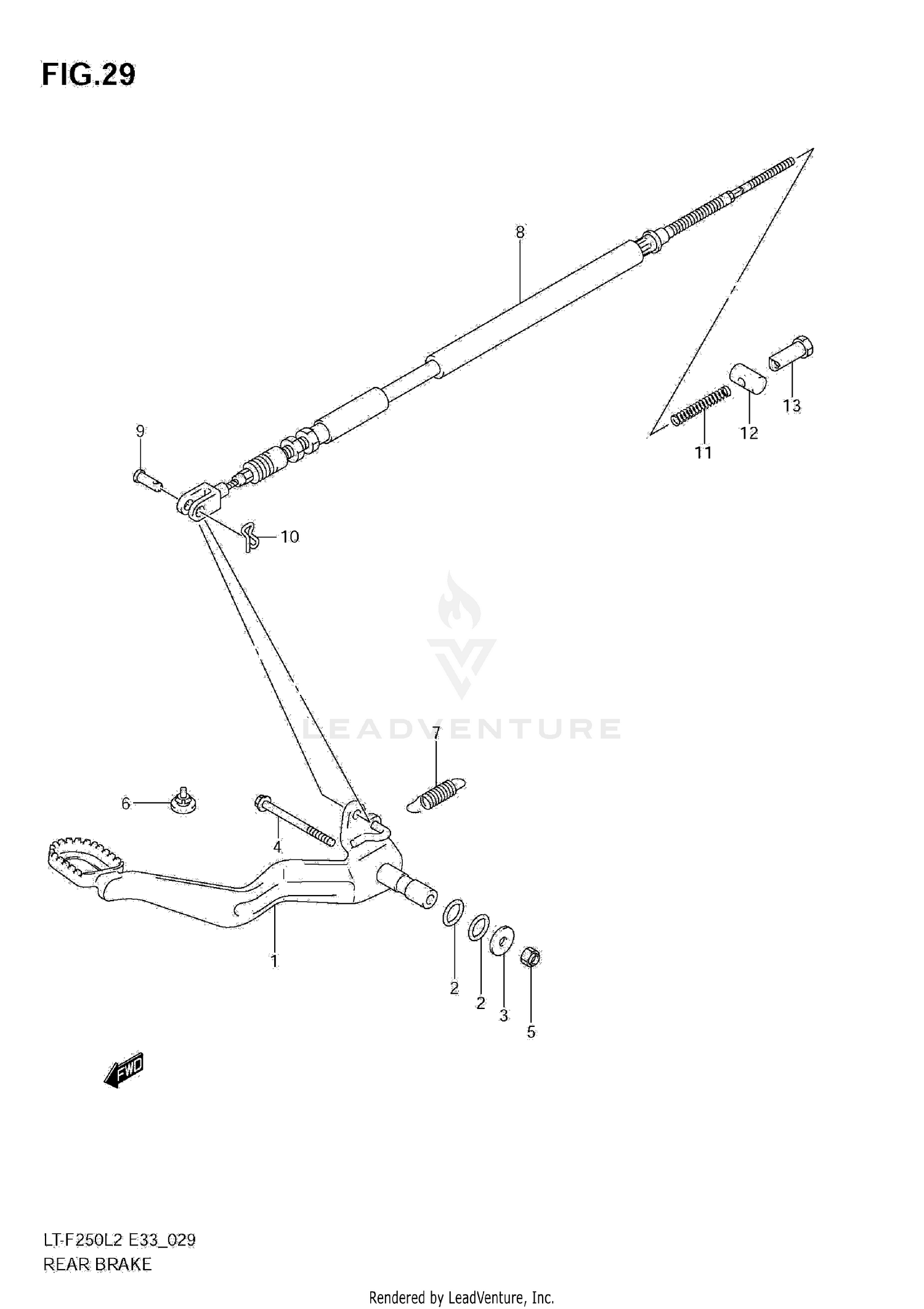

Rear Brake Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, BRAKE
43110-05G20
|
$56.27 | ||
|
Unavailable |
|||
|
#2
O RING (D:2.5,ID:13.8)
09280-14011
|
$5.81 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER (6.5X22X2.3)
09160-06138
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
01547-0665A
|
$2.83 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT
08319-2106A
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#6
CUSHION
09321-08022
Superseded by 09321-08026
|
$2.37 | ||
|
Unavailable |
|||
|
#7
SPRING
09443-11030
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#8
CABLE, REAR BRAKE
58510-05G00
|
$77.43 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN
09200-05001
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLIP
09385-06012
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING
09440-08042
|
$3.07 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN
09209-13006
|
$6.38 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT
09150-06015
|
$4.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
