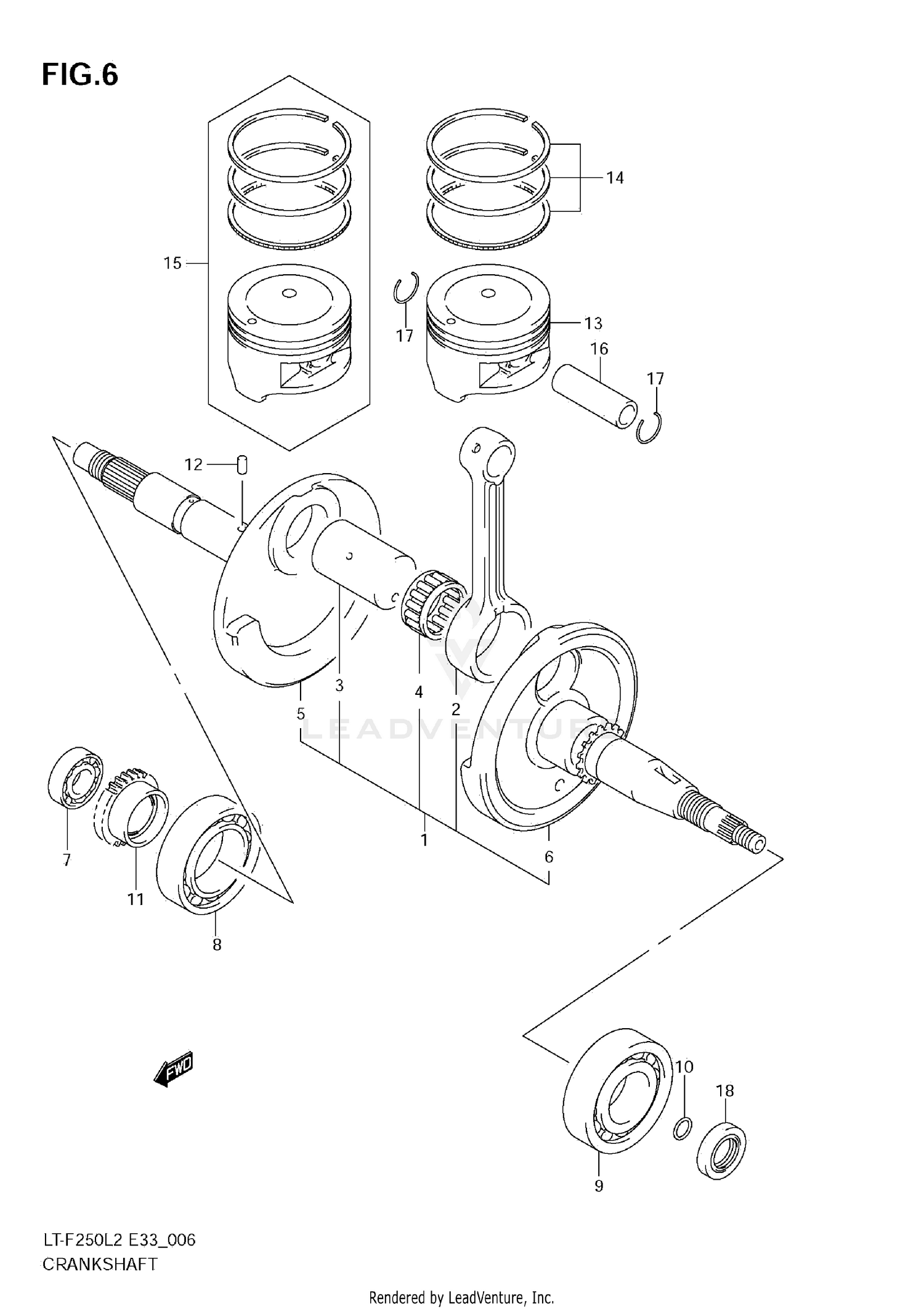

Crankshaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT ASSY
12200-05G11
|
$984.45 | ||
|
Available to order. Add to View Price |
|||
|
#2
ROD, CONNECTING
12161-19B03
|
$145.26 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, CRANK
12210-22A03
|
$54.11 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING (30X39X18)
09263-30033-0B0
|
$80.62 | ||
|
Available to order. Add to View Price |
|||
|
#5
CRANKSHAFT, RH
12220-05G01
|
$360.52 | ||
|
Available to order. Add to View Price |
|||
|
#6
CRANKSHAFT, LH
12261-05G10
|
$257.40 | ||
|
Unavailable |
|||
|
#7
BEARING (15X35X11)
09262-15038
|
$34.56 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING (28X68X18)
09262-28014
|
$71.59 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING (35X72X17)
09262-35073
|
$44.73 | ||
|
Available to order. Add to View Price |
|||
|
#10
O RING (D:1.9,ID:12.6)
09280-12009
|
$3.87 | ||
|
Available to order. Add to View Price |
|||
|
#11
GEAR, OIL PUMP DRIVE (NT:30)
16321-19B00
|
$54.85 | ||
|
Available to order. Add to View Price |
|||
|
#12
.PIN
04221-04089
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#13
PISTON
12111-05G01-0F0
|
$82.18 | ||
|
Available to order. Add to View Price |
|||
|
#14
RING SET, PISTON (STD)
12140-05G00
|
$52.85 | ||
|
Available to order. Add to View Price |
|||
|
#14
RING SET, PISTON (OS:0.5)
12140-05G00-050
|
$57.00 | ||
|
Available to order. Add to View Price |
|||
|
#15
PISTON SET (OS:0.5)
12100-05G01-050
|
$140.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
PIN,PISTON
12151-22A02
|
$15.01 | ||
|
Available to order. Add to View Price |
|||
|
#17
CIRCLIP
09381-16004
|
$1.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
OIL SEAL (22X35X7)
09289-22010
|
$29.36 | ||
|
Available to order. Add to View Price |
|||
