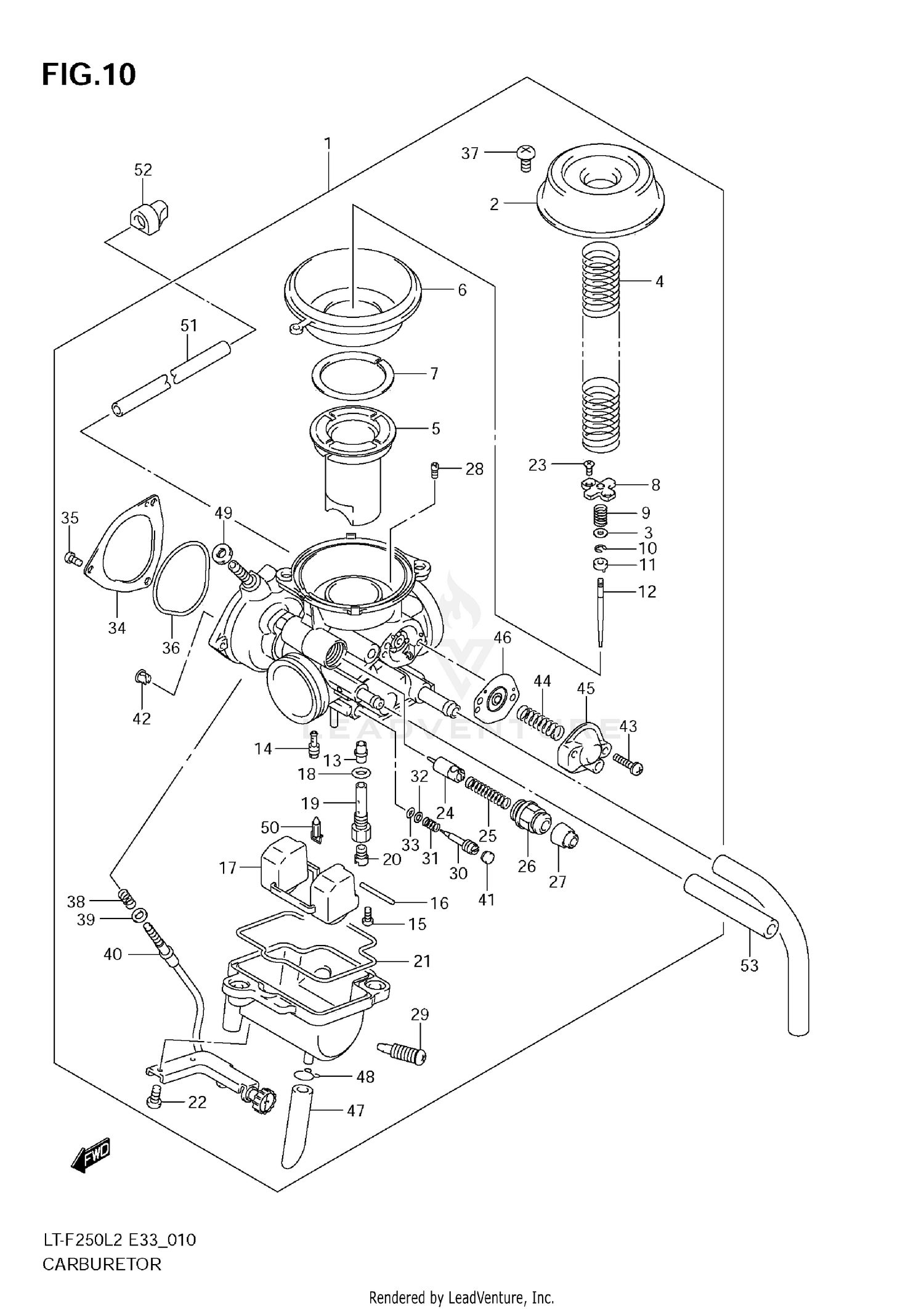

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSY
13200-05G10
Superseded by 13200-05G11
|
$670.53 | ||
|
Available to order. Add to View Price |
|||
|
#2
DIAPHRAGM COVER
13502-05F00
|
$35.57 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER
13382-46E00
|
$4.48 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING
13503-05G00
|
$15.34 | ||
|
Available to order. Add to View Price |
|||
|
#5
PISTON VALVE
13500-05F10
|
$99.31 | ||
|
Available to order. Add to View Price |
|||
|
#6
DIAPHRAGM
13507-05G00
Superseded by 13507-05G01
|
$33.74 | ||
|
Available to order. Add to View Price |
|||
|
#7
RING
13504-16E00
|
$6.74 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE
13581-05F00
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
SPRING
13388-20E20
|
$4.33 | ||
|
Available to order. Add to View Price |
|||
|
#10
.E RING,MULTIPLE JET NOZZLE
13394-17E60
|
$2.12 | ||
|
Available to order. Add to View Price |
|||
|
#11
RING
13574-05F00
|
$7.65 | ||
|
Available to order. Add to View Price |
|||
|
#12
JET, NEEDLE (4DJ24-1)
13383-05G00
|
$22.10 | ||
|
Available to order. Add to View Price |
|||
|
#13
JET, NEEDLE (P-OM)
09494-00921
|
$52.01 | ||
|
Available to order. Add to View Price |
|||
|
#14
JET, PILOT (17.5)
09492-17006
|
$11.74 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW
02112-0408A
|
$1.33 | ||
|
Available to order. Add to View Price |
|||
|
#16
.PIN,FLOAT
13254-20010
|
$4.64 | ||
|
Available to order. Add to View Price |
|||
|
#17
FLOAT ASSY
13240-47E00
Superseded by 13240-47E01
|
$35.47 | ||
|
Available to order. Add to View Price |
|||
|
#18
.O RING
13246-43010
Superseded by 13246-43011
|
$5.36 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
JET HOLDER
13342-05G00
|
$28.45 | ||
|
Available to order. Add to View Price |
|||
|
#20
JET, MAIN (137.5)
09491-27014
|
$13.14 | ||
|
Available to order. Add to View Price |
|||
|
#21
O RING
13251-47E00
|
$9.82 | ||
|
Available to order. Add to View Price |
|||
|
#22
.SCREW (6X14)
13601-05148-XC0
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW
13603-05F00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#24
PLUNGER ASSY
13411-05G00
|
$32.46 | ||
|
Available to order. Add to View Price |
|||
|
#25
SPRING
13417-37200
|
$4.53 | ||
|
Available to order. Add to View Price |
|||
|
#26
GUIDE HOLDER
13418-43410
|
$8.92 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
.CAP
13681-04010
Superseded by 13681-04011
|
$6.09 | ||
|
Available to order. Add to View Price |
|||
|
#28
PILOT JET (170)
09493-34003
|
$17.90 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW, DRAIN
13247-13A00
Superseded by 13247-02340
|
$6.16 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
ADJUSTER
13279-48F00
|
$13.59 | ||
|
Available to order. Add to View Price |
|||
|
#31
.SPRING
13268-47070
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#32
.WASHER (14X17)
13291-29900
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#33
.O-RING
13295-29900
Superseded by 13295-29901
|
$5.36 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
COVER THROTTLE
13502-02C10
|
$17.79 | ||
|
Available to order. Add to View Price |
|||
|
#35
SCREW
02112-0406B
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#36
O RING
13673-20B00
|
$9.67 | ||
|
Available to order. Add to View Price |
|||
|
#37
SCREW
02112-05087
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#38
SPRING
13268-03110
|
$5.90 | ||
|
Available to order. Add to View Price |
|||
|
#39
WASHER
13615-05G00
|
$3.51 | ||
|
Available to order. Add to View Price |
|||
|
#40
CABLE ADJUSTER ASSY
13577-05G00
|
$102.12 | ||
|
Available to order. Add to View Price |
|||
|
#41
PLUG
13281-05A00
|
$5.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#42
CABLE GUIDE
13579-05G00
|
$9.67 | ||
|
Available to order. Add to View Price |
|||
|
#43
SCREW
13601-04148
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#44
SPRING
13271-13F00
|
$4.94 | ||
|
Available to order. Add to View Price |
|||
|
#45
COVER ASSY
13502-10F00
|
$42.88 | ||
|
Available to order. Add to View Price |
|||
|
#46
DIAPHRAGM ASSY
13480-055A0
Superseded by 13480-055A1
|
$21.33 | ||
|
Available to order. Add to View Price |
|||
|
#47
HOSE
13684-38D00
Superseded by 13684-38D01
|
$5.25 | ||
|
Unavailable |
|||
|
#48
.CLIP
13529-98010
Superseded by 13529-98011
|
$3.34 | ||
|
Available to order. Add to View Price |
|||
|
#49
NUT
13607-98410
|
|||
|
Available to order. Add to View Price |
|||
|
#50
VALVE ASSY, NEEDLE
13370-47E00
|
$63.30 | ||
|
Available to order. Add to View Price |
|||
|
#51
HOSE(6.5X11.5X6
09354-65113-600
Superseded by 09355-65001-600
|
$14.61 | ||
|
Available to order. Add to View Price |
|||
|
#52
CAP,AIR VENT HO
13699-05G00
Superseded by 13699-05G01
|
$8.47 | ||
|
Available to order. Add to View Price |
|||
|
#53
HOSE,5X10X600
09355-50105-600
Superseded by 44421-13ER0
|
$12.25 | ||
|
Available to order. Add to View Price |
|||
