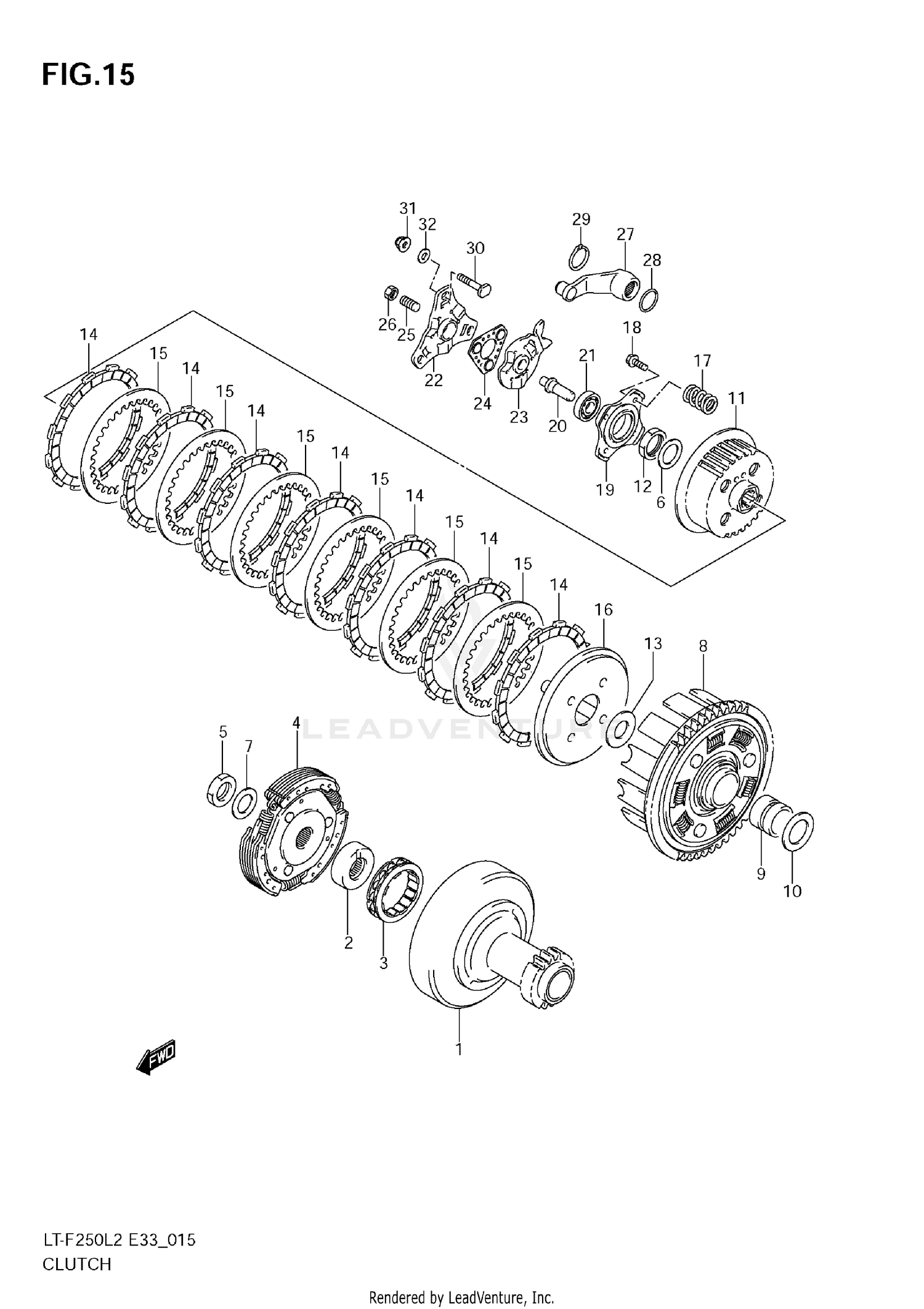

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, PRIMARY DRIVE (NT:20)
21110-05G00
|
$223.36 | ||
|
Available to order. Add to View Price |
|||
|
#2
RACE, INNER
21631-19B11
|
$39.08 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLUTCH, ONE WAY
21273-19B10
|
$174.56 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLUTCH ASSY
21500-05G10
|
$297.73 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT
09140-18012
|
$10.19 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER
09164-20007
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER
09164-18001
|
$4.01 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR ASSY, PRIMARY (NT:65)
21200-05G10
|
$233.77 | ||
|
Unavailable |
|||
|
#9
SPACER (22X28X23)
09180-22035
|
$22.29 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM (22X36X1)
09181-22251
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
HUB, CLUTCH
21410-05G00
|
$131.52 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
09140-20019
|
$6.24 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER
08211-20323
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLATE, DRIVE
21441-22A01
|
$18.72 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLATE,DRIVEN (T:1.4)
21451-11900
Superseded by 21451-01B40
|
$10.37 | ||
|
Available to order. Add to View Price |
|||
|
#16
DISC, PRESSURE
21462-24501
|
$58.22 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING
21413-05G10
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
01550-0620B
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLATE, RELEASE
21465-24500
|
$20.69 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIECE, PUSH
23121-05G00
|
$27.36 | ||
|
Available to order. Add to View Price |
|||
|
#21
BEARING (12X28X8)
09262-12001
|
$22.81 | ||
|
Available to order. Add to View Price |
|||
|
#22
GUIDE, BALL OUTER
23231-05G21
|
$18.76 | ||
|
Unavailable |
|||
|
#23
GUIDE, BALL INNER
23211-05G21
|
$43.31 | ||
|
Available to order. Add to View Price |
|||
|
#24
BALL, RELEASE
23250-31003
|
$30.45 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW (8X19.5)
09134-08009
|
$4.06 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT
09140-08021
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
|
#27
ARM, RELEASE
23220-05G20
|
$88.18 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER
08211-10243
|
$4.04 | ||
|
Available to order. Add to View Price |
|||
|
#29
CIRCLIP
08331-3114A
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT (6X30)
09119-06103
|
$2.48 | ||
|
Available to order. Add to View Price |
|||
|
#31
NUT
08313-2006B
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#32
GASKET (5.8X13X1.2)
09168-06023
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
