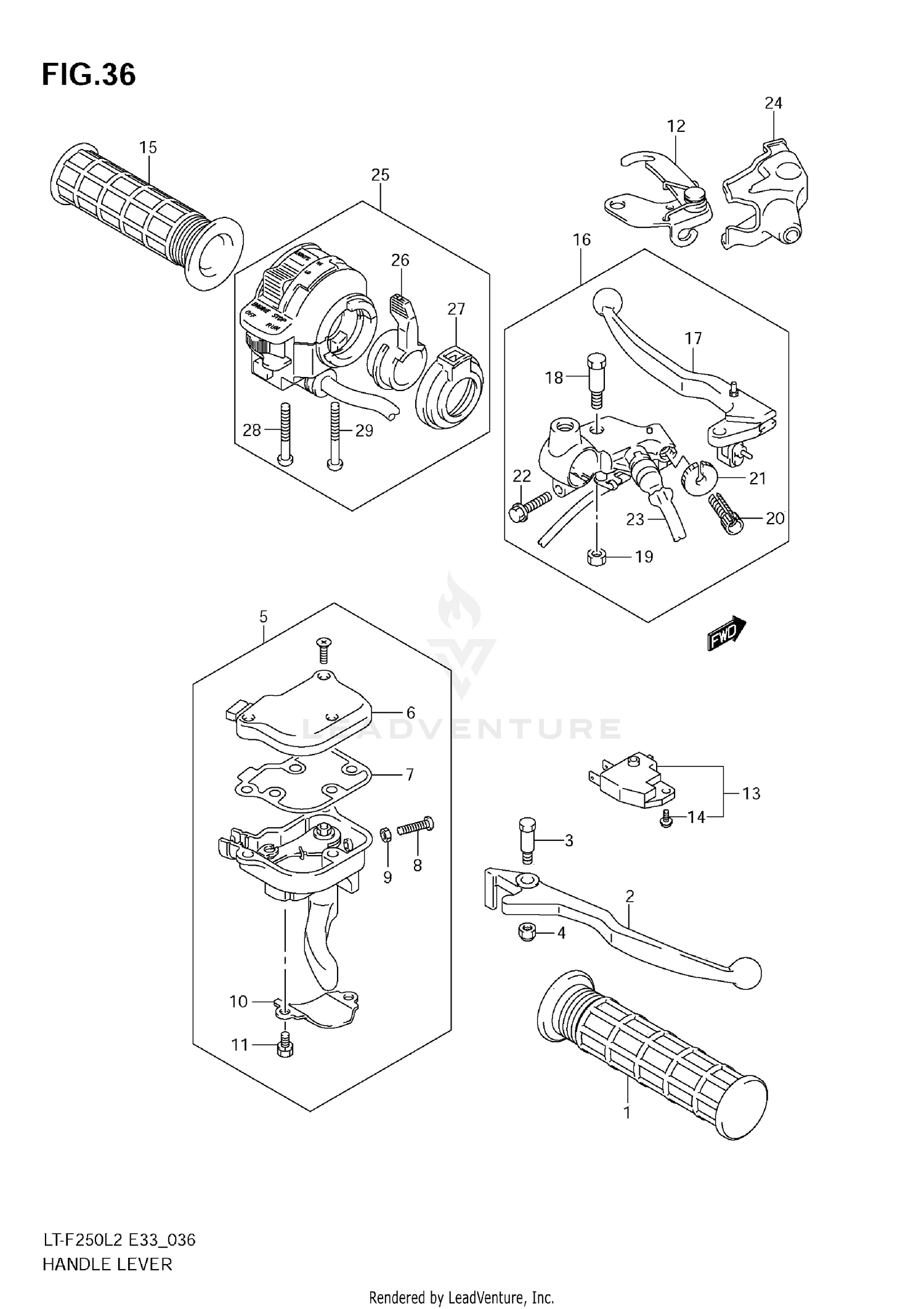

Handle Lever Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GRIP
57211-21G10
|
$12.54 | ||
|
Available to order. Add to View Price |
|||
|
#2
LEVER,FRONT BRAKE
57421-39D20
|
$27.68 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT,BRAKE LEVER PIVOT
57431-04F00
|
$7.76 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT,LEVER PIVOT
57433-09F00
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#5
CASE ASSY,THROTTLE
57100-27H01
Superseded by 57100-27H03
|
$100.26 | ||
|
Unavailable |
|||
|
#6
CAP
57121-27H00
|
$60.54 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET
57157-27H00
|
$15.46 | ||
|
Unavailable |
|||
|
#8
SCREW
02112-0520B
|
$2.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
.NUT
08310-0005B
Superseded by 08310-0005A
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOLDER
57126-07G00
|
$31.45 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
57127-07G00
|
$12.92 | ||
|
Available to order. Add to View Price |
|||
|
#12
.STOPPER,BRAKE LEVER
57790-38FA0
|
$49.00 | ||
|
Available to order. Add to View Price |
|||
|
#13
SWITCH ASSY,FR BRAKE
57460-17C11
Superseded by 57460-14J02
|
$47.51 | ||
|
Available to order. Add to View Price |
|||
|
#14
.SCREW,WITH WASHER (4X12)
57465-17C00
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#15
GRIP
57211-21G10
|
$12.54 | ||
|
Unavailable |
|||
|
#16
LEVER ASSY,REAR
57500-38FC0
Superseded by 57500-38FC1
|
$93.75 | ||
|
Available to order. Add to View Price |
|||
|
#17
LEVER, BRAKE
57620-21821
|
$51.24 | ||
|
Available to order. Add to View Price |
|||
|
#18
.BOLT,PIVOT
57431-09F00
|
$16.39 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
NUT
08319-2106B
|
$2.79 | ||
|
Available to order. Add to View Price |
|||
|
#20
.ADJUSTER,WIRE
57441-08C00
Superseded by 57441-08C01
|
$14.38 | ||
|
Available to order. Add to View Price |
|||
|
#21
.NUT,LOCK
57442-08C00
Superseded by 57442-08C01
|
$10.34 | ||
|
Available to order. Add to View Price |
|||
|
#22
.BOLT
01547-0620B
|
$2.94 | ||
|
Available to order. Add to View Price |
|||
|
#23
SWITCH, STOP
57560-38FA1
|
$74.09 | ||
|
Available to order. Add to View Price |
|||
|
#24
COVER,BRAKE LEVER
57541-38FA0
Superseded by 57541-38FA1
|
$9.41 | ||
|
Unavailable |
|||
|
#25
SWITCH ASSY,HANDLE,L
37400-27H00
|
$190.48 | ||
|
Available to order. Add to View Price |
|||
|
#26
LEVER, CHOKE
37571-19B01
|
$15.01 | ||
|
Available to order. Add to View Price |
|||
|
#27
COVER, CHOKE
37576-19B01
|
$8.39 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW
02112-05407
|
$2.31 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW
02112-05457
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
