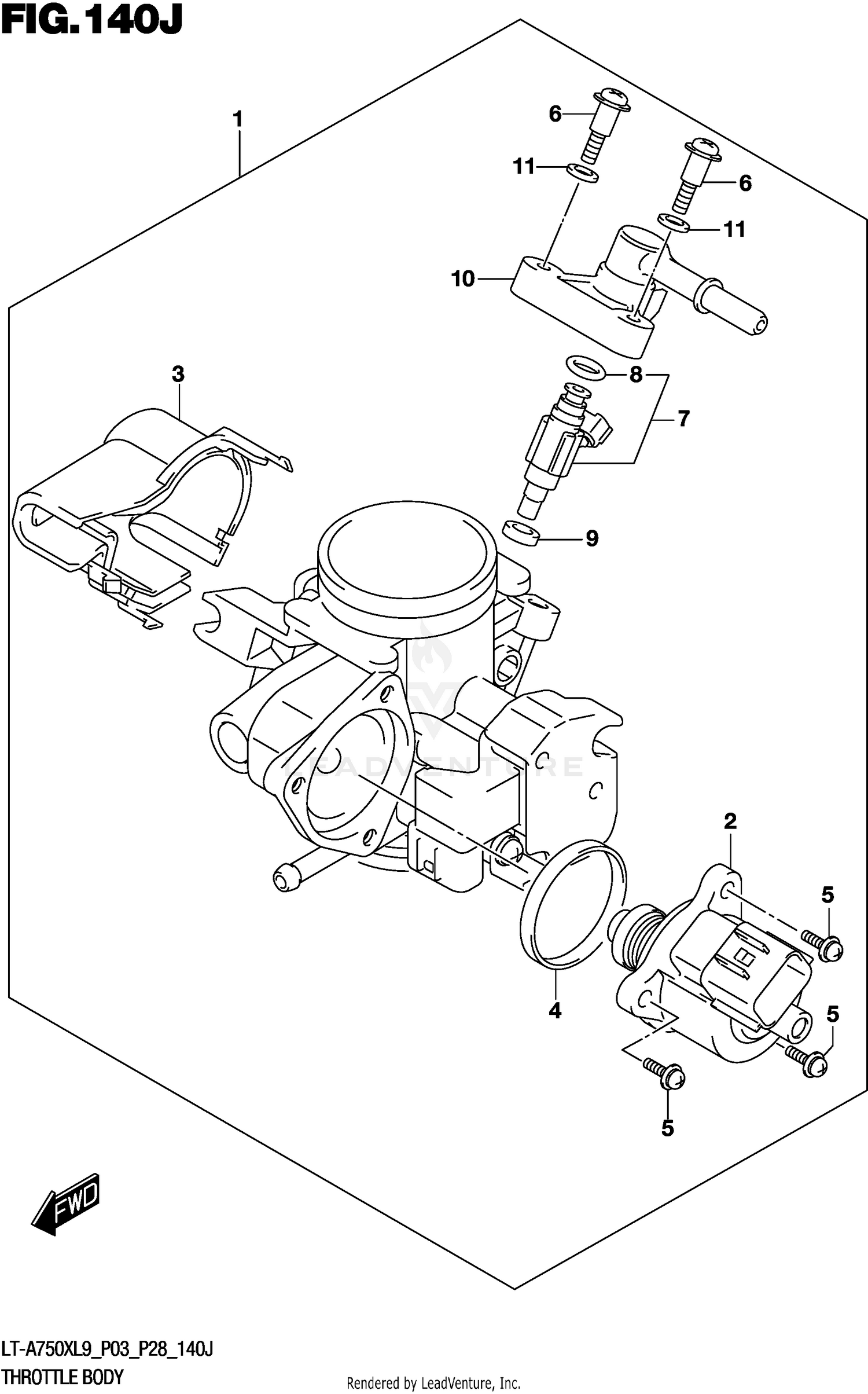

Throttle Body (lt-a750xpzl9 P33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BODY ASSY, THROTTLE
13400-34K10
|
$695.33 | ||
|
Available to order. Add to View Price |
|||
|
#2
.MOTOR, ISC STEPPING
13520-31G00
|
$263.93 | ||
|
Available to order. Add to View Price |
|||
|
#3
.COVER
13578-31G00
|
$18.22 | ||
|
Available to order. Add to View Price |
|||
|
#4
.GASKET
18139-82K00
|
$11.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
.SCREW
13601-13G00
|
$3.34 | ||
|
Available to order. Add to View Price |
|||
|
#6
.SCREW
13601-11J00
|
$6.37 | ||
|
Available to order. Add to View Price |
|||
|
#7
.INJECTOR ASSY, FUEL
15710-31G10
|
$281.53 | ||
|
Available to order. Add to View Price |
|||
|
#8
..O RING
15717-31G00
|
$11.66 | ||
|
Available to order. Add to View Price |
|||
|
#9
.SEAL
15722-29G00
|
$14.12 | ||
|
Available to order. Add to View Price |
|||
|
#10
.DELIVERY PIPE
15731-31G10
|
$228.96 | ||
|
Available to order. Add to View Price |
|||
|
#11
.PACKING
13602-29G00
Superseded by 13602-29G01
|
$3.07 | ||
|
Available to order. Add to View Price |
|||
