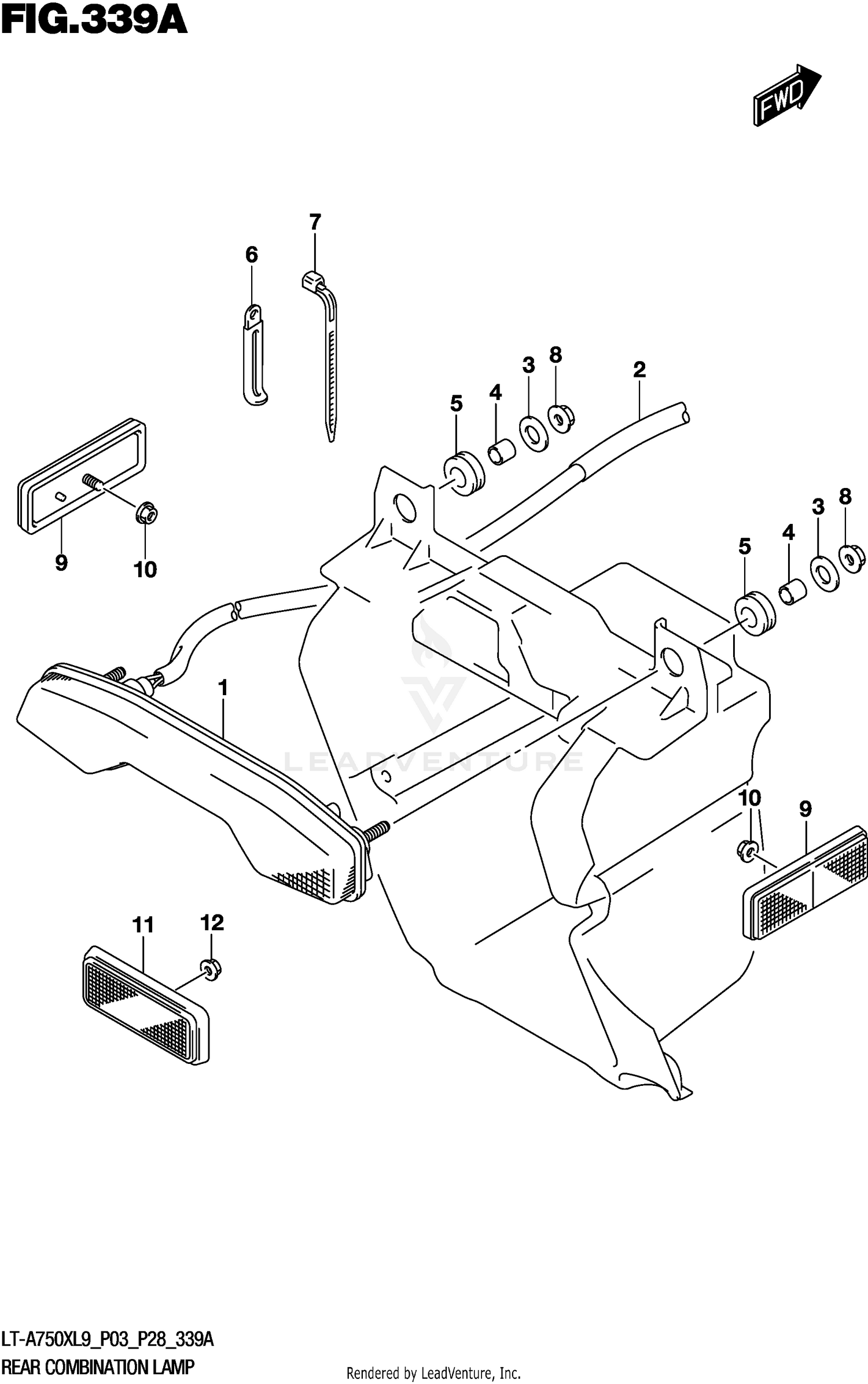

Rear Combination Lamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LAMP ASSY, REAR COMBINATION
35710-45G10
|
$168.12 | ||
|
Available to order. Add to View Price |
|||
|
#2
CUSHION, FENDER SIDE
53145-07GA0
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER (6.5X20X1.2)
09160-06077
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPACER (6.5X10X10)
09180-06310
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#5
CUSHION (10X20X10)
09320-10015
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLAMP (L:45)
09404-06429
|
$2.27 | ||
|
Unavailable |
|||
|
#7
CLAMP (L:165)
09407-18402
|
$2.77 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
NUT (6X12)
08316-1006A
|
$2.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
REFLECTOR ASSY,RR
35970-07F01
|
$26.95 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
08316-1005A
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#11
REFLECTOR ASSY,RR
35970-07F01
|
$26.95 | ||
|
Unavailable |
|||
|
#12
NUT
08316-1005A
|
$2.72 | ||
|
Unavailable |
|||
