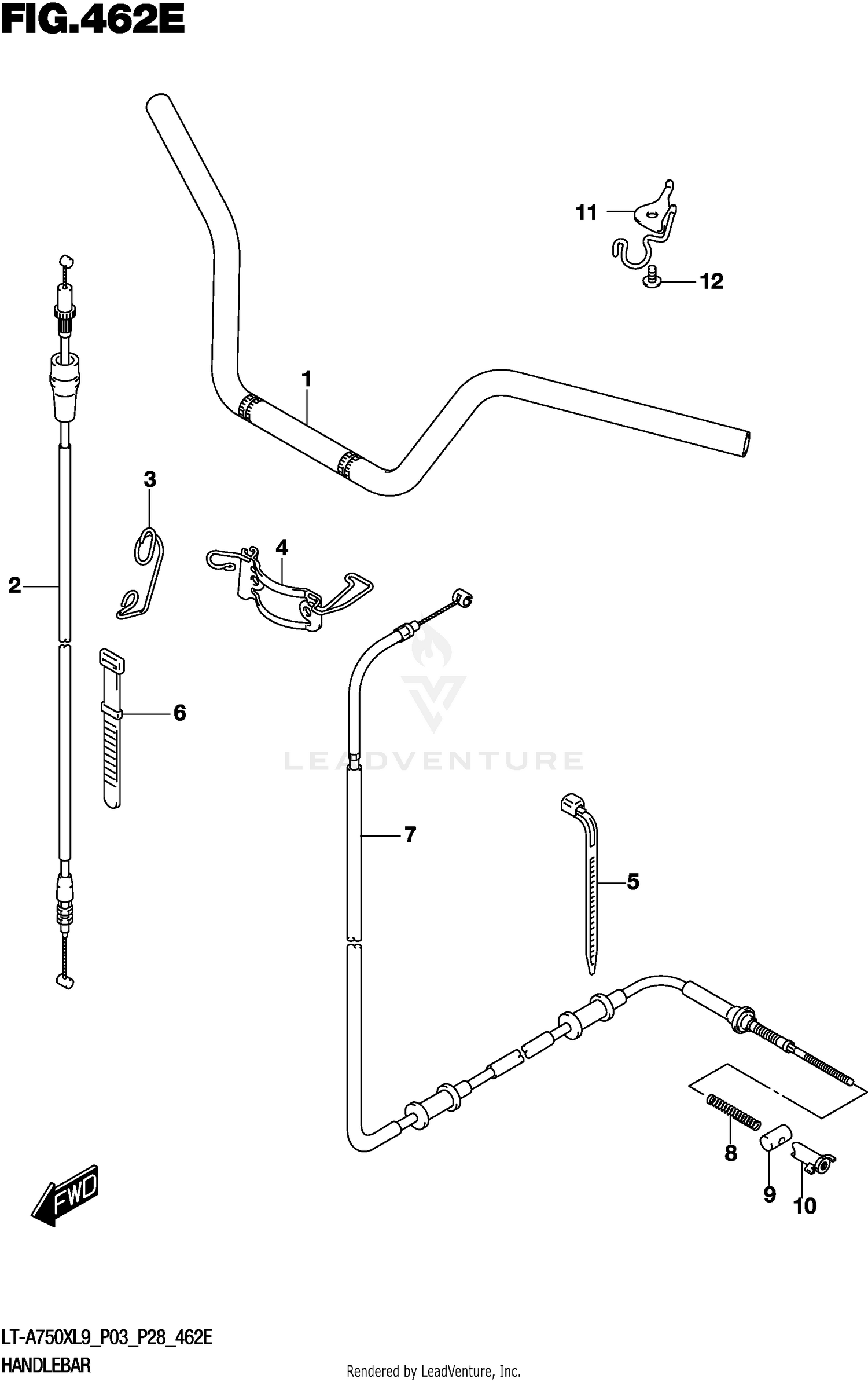

Handlebar (lt-a750xpl9 P28) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HANDLEBAR
56111-31G20
Superseded by 56111-31G40
|
$127.41 | ||
|
Unavailable |
|||
|
#2
CABLE ASSY,THROTTLE
58300-31G20
Superseded by 58300-31G21
|
$37.95 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUIDE, THROTTLE CABLE
58626-31G20
|
$11.09 | ||
|
Available to order. Add to View Price |
|||
|
#4
GUIDE, CABLE
58620-31G30
|
$33.19 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLAMP (L:165)
09407-18402
|
$2.77 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
CLAMP (L:120)
09407-12402
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#7
CABLE, PARKING BRAKE
58810-34K00
|
$74.36 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING
09440-08042
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN
09209-13006
|
$6.57 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
09150-06015
|
$4.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
GUIDE, PARKING CABLE
58620-34K00
|
$8.67 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW
03541-0616B
|
$3.01 | ||
|
Available to order. Add to View Price |
|||
