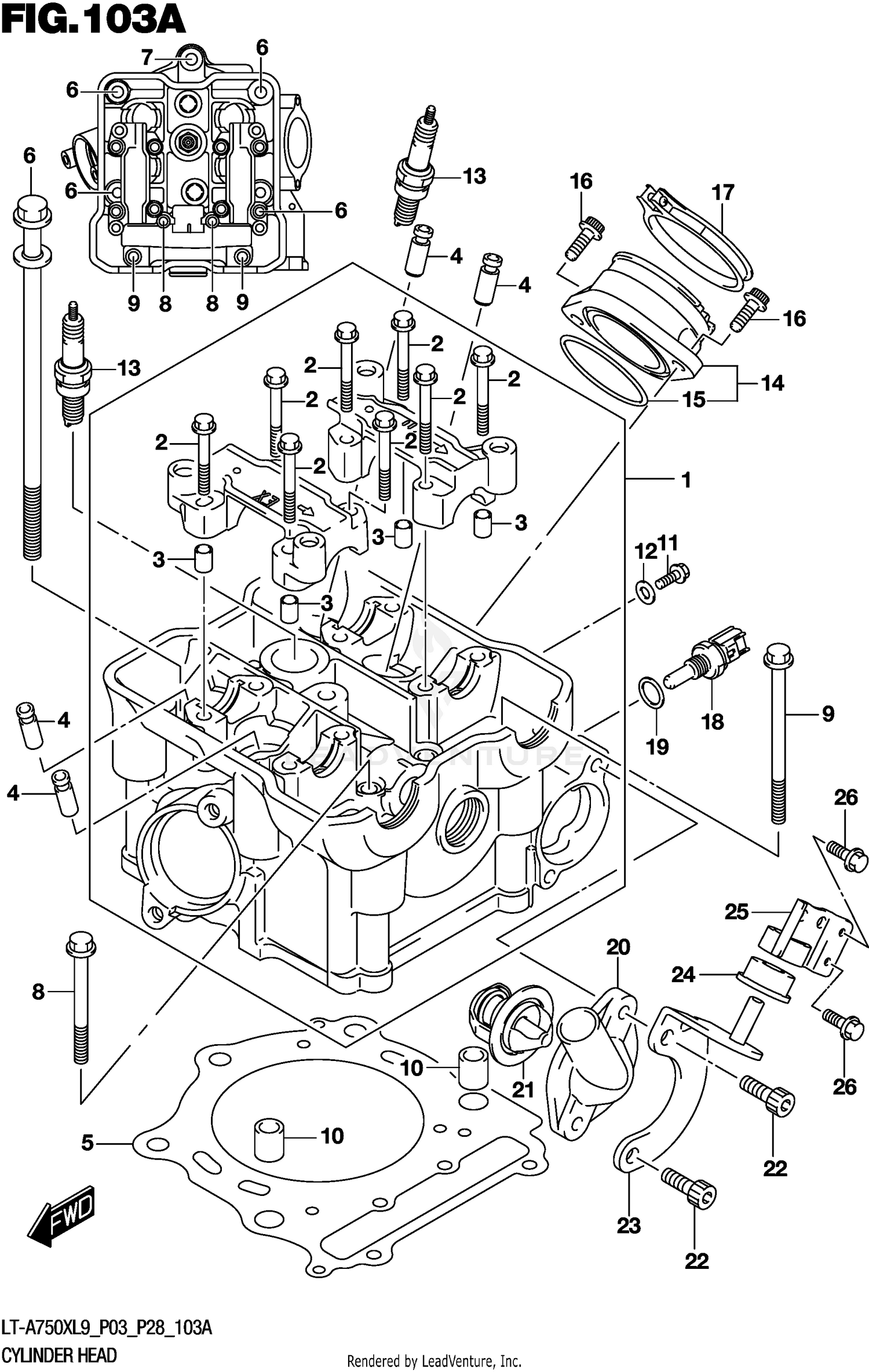

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEAD ASSY, CYLINDER
11100-31G50
|
$1,306.88 | ||
|
Available to order. Add to View Price |
|||
|
#2
.BOLT (6X40)
09103-06266
|
$2.66 | ||
|
Available to order. Add to View Price |
|||
|
#3
.PIN (8X11)
09206-08001
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#4
GUIDE, VALVE (OS:0.3)
11115-32E70
|
$44.29 | ||
|
Available to order. Add to View Price |
|||
|
#5
.GASKET, CYLINDER HEAD
11141-31G50
|
$57.31 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, CYLINDER HEAD (L:200)
11161-31G00
|
$15.52 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, CYLINDER HEAD (L:200)
11161-34K00
|
$15.22 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT (6X100)
09103-06060
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT (6X70)
09103-06103
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN (10.4X13X18)
04211-13189
|
$2.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
BOLT
01550-0612A
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
GASKET (5.8X13X1.2)
09168-06015
Superseded by 09168-06023
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13-1
SPARK PLUG (LMAR7A-9)
09482-00624
|
$27.27 | ||
|
Available to order. Add to View Price |
|||
|
#13-2
SPARK PLUG (LMAR6A-9)
09482-00623
|
$38.08 | ||
|
Available to order. Add to View Price |
|||
|
#13-2
SPARK PLUG (LMAR6A-9)
09482-00623
|
$38.08 | ||
|
Unavailable |
|||
|
#13-3
SPARK PLUG (LMAR8A-9)
09482-00625
|
|||
|
Unavailable |
|||
|
#13-3
SPARK PLUG (LMAR8A-9)
09482-00625
|
|||
|
Unavailable |
|||
|
#14
PIPE ASSY,INTAKE
13101-31G00
Superseded by 13101-31G01
|
$64.00 | ||
|
Available to order. Add to View Price |
|||
|
#15
.O RING
13118-31G00
|
$6.85 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT (6X18)
09106-06105
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLAMP
09402-62208
|
$8.38 | ||
|
Available to order. Add to View Price |
|||
|
#18
SENSOR, WATER TEMP
13650-10G00
|
$112.61 | ||
|
Available to order. Add to View Price |
|||
|
#19
GASKET (12X17X1)
09168-12017
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#20
COVER, THERMOSTAT
17661-31G00
|
$53.60 | ||
|
Available to order. Add to View Price |
|||
|
#21
THERMOSTAT,WATER
17670-06G60
Superseded by 17670-06G61
|
$33.26 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT
07130-0825A
|
$3.81 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
PLATE, ENG MTG DAMPER
11653-31G02
|
$22.88 | ||
|
Available to order. Add to View Price |
|||
|
#24
DAMPER, ENG MTG
11654-34K00
|
$10.43 | ||
|
Available to order. Add to View Price |
|||
|
#25
STOPPER, ENGINE MTG
11655-31G10
|
$18.93 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT (8X12)
01550-0812A
|
$2.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
