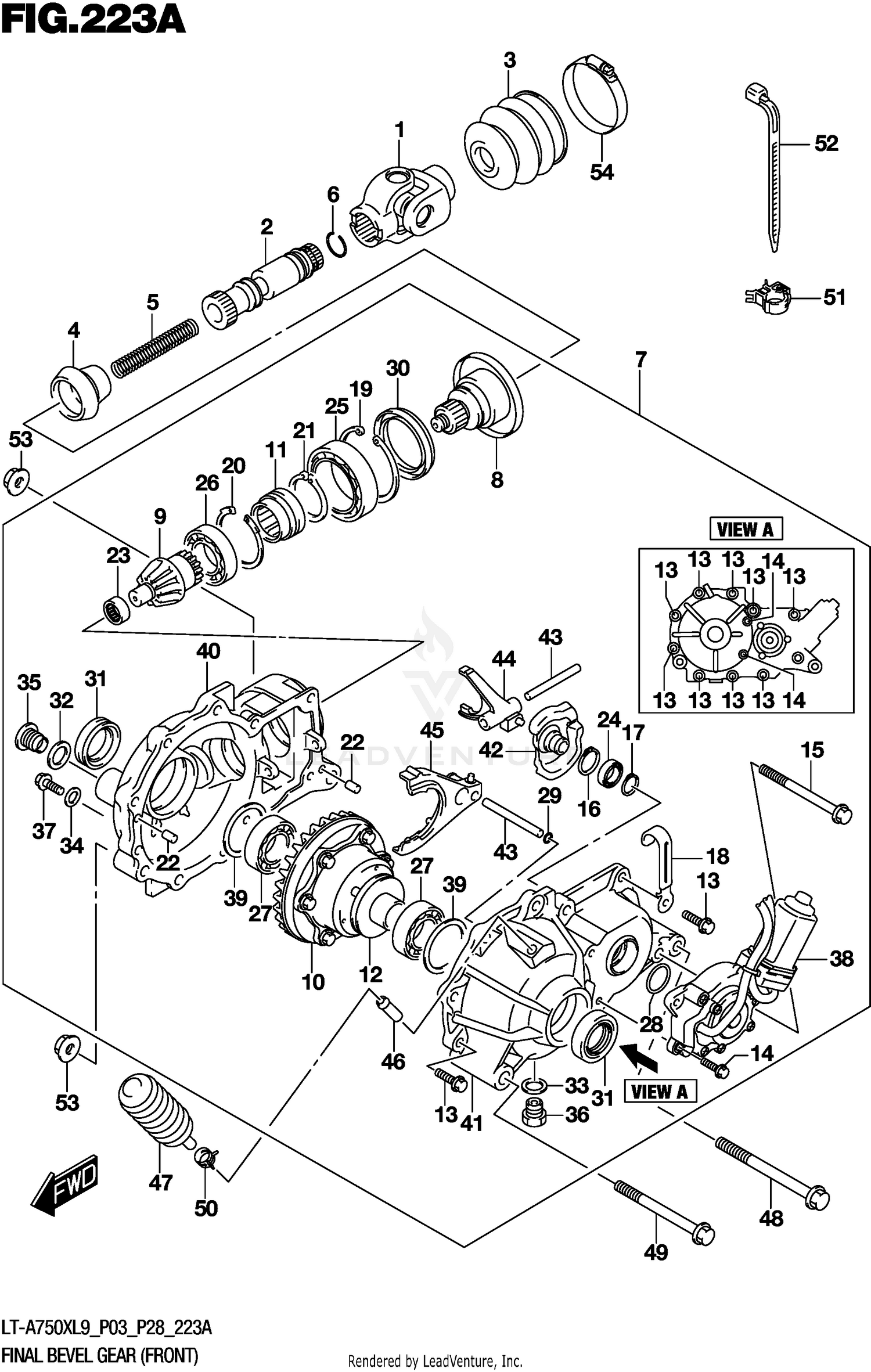

Final Bevel Gear (front) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
YOKE, FR PROP SHAFT
27100-31G00
|
$248.52 | ||
|
Available to order. Add to View Price |
|||
|
#2
SHAFT, FRONT PROPELLER
27110-34K00
|
$158.26 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOOT,FRONT PROP SHAFT YOKE
27153-31G21
Superseded by 27153-31G22
|
$14.76 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOOT,FR PROP SHAFT
27153-31G30
Superseded by 27153-31G32
|
$8.57 | ||
|
Unavailable |
|||
|
#5
SPRING, FR PROPELLER
27191-31G00
|
$6.37 | ||
|
Available to order. Add to View Price |
|||
|
#6
CIRCLIP
09381-20004
|
$2.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
CASE ASSY, FR DIFFERENTIAL
27400-11H10
Superseded by 27400-11H11
|
$2,680.97 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHAFT ASSY,INPU
27130-31GB0
Superseded by 27130-31GB1
|
$343.08 | ||
|
Available to order. Add to View Price |
|||
|
#9
PINION,DRIVE
27311-11HA0
Superseded by 27311-11HA1
|
$274.80 | ||
|
Available to order. Add to View Price |
|||
|
#10
RING GEAR ASSY
27320-31GB0
Superseded by 27320-31GB1
|
$585.50 | ||
|
Available to order. Add to View Price |
|||
|
#11
.SLEEVE
27371-31GA0
|
$86.18 | ||
|
Available to order. Add to View Price |
|||
|
#12
.PIN, SLEEVE DIFF LOCK
27381-31GA0
|
$154.88 | ||
|
Available to order. Add to View Price |
|||
|
#13
.BOLT (8X25)
27401-38FA1
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#14
.FLANGE BOLT, HEX HEAD
27401-31GB0
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#15
.FLANGE BOLT, HEX HEAD
27401-31GC0
|
$2.36 | ||
|
Unavailable |
|||
|
#16
.SNAP RING
27403-31GA0
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#17
.SNAP RING
27403-31GB0
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#18
.CLIP
27403-31GC0
|
$22.52 | ||
|
Unavailable |
|||
|
#19
.RING SNAP
27403-38FA0
|
$5.45 | ||
|
Available to order. Add to View Price |
|||
|
#20
.RING SNAP
27403-38FB0
|
$5.45 | ||
|
Available to order. Add to View Price |
|||
|
#21
.RING,SNAP
27403-38FC0
|
$3.69 | ||
|
Available to order. Add to View Price |
|||
|
#22
.PIN
27404-31GA0
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#23
.BEARING, PINION
27405-31GA0
|
$23.53 | ||
|
Available to order. Add to View Price |
|||
|
#24
.BEARING
27405-31GB0
|
$19.03 | ||
|
Available to order. Add to View Price |
|||
|
#25
.BEARING
27405-38FA0
|
$38.47 | ||
|
Available to order. Add to View Price |
|||
|
#26
.BEARING
27405-38FB0
|
$40.46 | ||
|
Available to order. Add to View Price |
|||
|
#27
.BEARING
27405-38FD0
|
$21.08 | ||
|
Available to order. Add to View Price |
|||
|
#28
.O RING
27406-31GE0
|
$13.13 | ||
|
Available to order. Add to View Price |
|||
|
#29
.O RING
27406-31GF0
|
$12.07 | ||
|
Available to order. Add to View Price |
|||
|
#30
.SEAL,OIL
27406-38FB0
|
$12.67 | ||
|
Available to order. Add to View Price |
|||
|
#31
.SEAL,OIL
27406-38FD0
|
$9.89 | ||
|
Available to order. Add to View Price |
|||
|
#32
.WASHER
27407-31GA0
|
$11.81 | ||
|
Available to order. Add to View Price |
|||
|
#33
.WASHER
27407-38FB0
|
$3.13 | ||
|
Available to order. Add to View Price |
|||
|
#34
.WASHER
27407-38FD0
|
$3.94 | ||
|
Available to order. Add to View Price |
|||
|
#35
.PLUG
27409-38FA0
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#36
.PLUG
27409-38FB0
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#37
.PLUG,LEVEL
27409-38FC0
|
$6.04 | ||
|
Available to order. Add to View Price |
|||
|
#38
.CASE, MOTOR
27421-31GA0
Superseded by 27421-31GA1
|
$801.51 | ||
|
Available to order. Add to View Price |
|||
|
#39
.SHIM SET
27445-38FA0
|
$127.22 | ||
|
Available to order. Add to View Price |
|||
|
#40
.HOUSING, FINAL DRIVE FR
27451-31GA0
|
$413.46 | ||
|
Available to order. Add to View Price |
|||
|
#41
.COVER, FINAL DRIVE FR
27461-31GA0
|
$327.28 | ||
|
Available to order. Add to View Price |
|||
|
#42
.CAM SHIFT
27911-31GA0
|
$300.28 | ||
|
Available to order. Add to View Price |
|||
|
#43
.ROD SHIFT
27921-31GA0
|
$11.23 | ||
|
Available to order. Add to View Price |
|||
|
#44
.FORK SHIFT, 2WD & 4WD
27941-31GA0
|
$87.72 | ||
|
Available to order. Add to View Price |
|||
|
#45
.FORK SHIFT, DIFFLOCK
27951-31GA0
|
$115.73 | ||
|
Available to order. Add to View Price |
|||
|
#46
.UNION
09364-08003
|
$3.43 | ||
|
Available to order. Add to View Price |
|||
|
#47
CASE,BREATHER
27491-38F00
Superseded by 27491-38F10
|
$23.89 | ||
|
Unavailable |
|||
|
#48
BOLT (10X90)
09103-10061
|
$7.00 | ||
|
Available to order. Add to View Price |
|||
|
#49
BOLT (10X110)
09103-10148
|
$8.75 | ||
|
Available to order. Add to View Price |
|||
|
#50
CLIP (ID:8.6)
09401-08411
|
$2.21 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#51
CLAMP (L:125)
09407-14403
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#52
CLAMP (L:125)
09407-14403
|
$2.80 | ||
|
Unavailable |
|||
|
#53
NUT (M10)
09159-10115
|
$4.46 | ||
|
Available to order. Add to View Price |
|||
|
#54
CLAMP
09402-80501
|
$15.13 | ||
|
Available to order. Add to View Price |
|||
