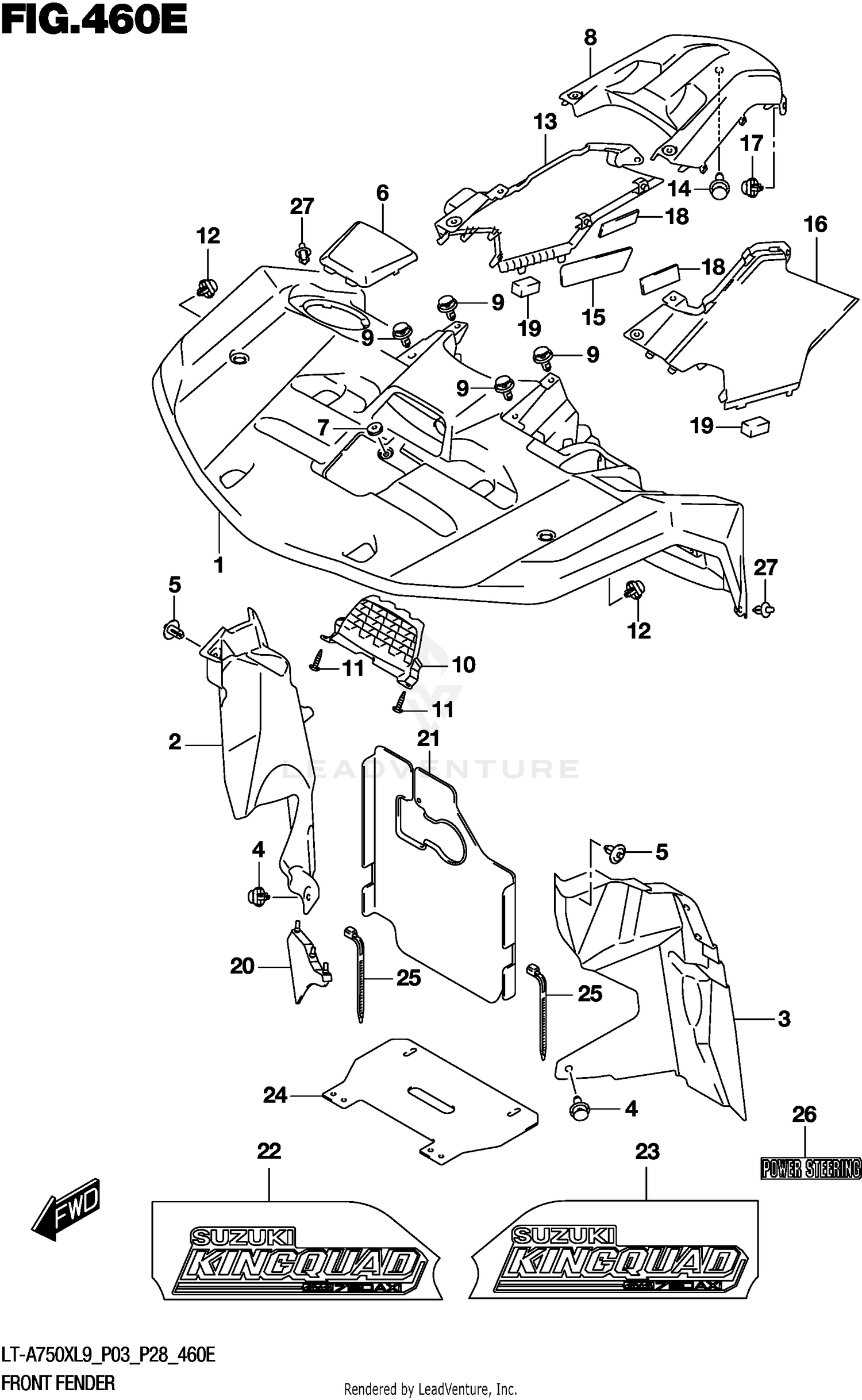

Front Fender (lt-a750xpl9 P28) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1-1
FENDER,FRONT (GREEN)
53111-34K00-YLG
Superseded by 53111-34K01-YLG
|
$676.99 | ||
|
Unavailable |
|||
|
#1-2
FENDER,FRONT (RED)
53111-34K00-YT9
Superseded by 53111-34K01-YT9
|
$686.79 | ||
|
Unavailable |
|||
|
#1-3
FENDER, FRONT (CAMOUFLAGE)
53111-34K20-PHW
|
$948.67 | ||
|
Available to order. Add to View Price |
|||
|
#1-4
FENDER, FRONT (BLACK)
53111-34K40-QFA
|
$931.11 | ||
|
Available to order. Add to View Price |
|||
|
#1-5
FENDER, FRONT (BRONZE)
53111-34K40-QMA
|
$931.11 | ||
|
Available to order. Add to View Price |
|||
|
#2
MUDFLAP,INNER RH
53411-34K00
Superseded by 53411-34K01
|
$22.55 | ||
|
Unavailable |
|||
|
#3
MUDFLAP,INNER LH
53421-34K00
Superseded by 53421-34K01
|
$22.42 | ||
|
Unavailable |
|||
|
#4
CLIP
09409-08008
|
$2.03 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLIP (D:2.4,ID:23.7)
09409-07333
|
$2.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6-1
LID,FENDER FRONT (GREEN)
53341-31G03-YLG
Superseded by 53341-31G06-YLG
|
$13.08 | ||
|
Unavailable |
|||
|
#6-2
LID,FENDER FRONT (RED)
53341-31G03-YT9
Superseded by 53341-31G06-YT9
|
$13.49 | ||
|
Unavailable |
|||
|
#6-3
LID (CAMOUFLAGE)
53341-31GC3-PHW
Superseded by 53341-31GC4-PHW
|
$62.43 | ||
|
Available to order. Add to View Price |
|||
|
#6-4
LID (BLACK)
53341-31G52-QFA
Superseded by 53341-31G60-QFA
|
$134.24 | ||
|
Available to order. Add to View Price |
|||
|
#6-5
LID (BRONZE)
53341-31G52-QMA
Superseded by 53341-31G53-QMA
|
$85.09 | ||
|
Available to order. Add to View Price |
|||
|
#7
CUSHION
09320-08018
|
$3.81 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
FENDER,CENTER
53119-34K00
Superseded by 53119-34K04
|
$135.18 | ||
|
Unavailable |
|||
|
#9
CLIP
09409-08008
|
$2.03 | ||
|
Unavailable |
|||
|
#10
COVER, INNER
53212-34K00
|
$12.17 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW
03541-0516A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLIP
09409-08008
|
$2.03 | ||
|
Unavailable |
|||
|
#13-1
COVER, SIDE RH (GREEN)
53112-34K00-YLG
|
$112.77 | ||
|
Available to order. Add to View Price |
|||
|
#13-2
COVER,SIDE,R (RED)
53112-34K00-YT9
Superseded by 53112-34K03-YT9
|
$90.85 | ||
|
Unavailable |
|||
|
#13-3
COVER, SIDE RH (CAMOUFLAGE)
53112-34K10-PHW
|
$282.49 | ||
|
Available to order. Add to View Price |
|||
|
#13-4
COVER, SIDE RH (BLACK)
53112-34K20-QFA
Superseded by 53112-34K21-QFA
|
$232.52 | ||
|
Available to order. Add to View Price |
|||
|
#13-5
COVER, SIDE RH (BRONZE)
53112-34K20-QMA
Superseded by 53112-34K21-QMA
|
$238.61 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLIP
09409-08008
|
$2.03 | ||
|
Unavailable |
|||
|
#15
SHIELD, SIDE COVER NO.2
53113-34K00
|
$9.86 | ||
|
Available to order. Add to View Price |
|||
|
#16-1
COVER, SIDE LH (GREEN)
53122-34K00-YLG
|
$86.35 | ||
|
Available to order. Add to View Price |
|||
|
#16-2
COVER, SIDE LH (RED)
53122-34K00-YT9
|
$90.71 | ||
|
Available to order. Add to View Price |
|||
|
#16-3
COVER, SIDE LH (CAMOUFLAGE)
53122-34K10-PHW
|
$329.47 | ||
|
Available to order. Add to View Price |
|||
|
#16-4
COVER, SIDE LH (BLACK)
53122-34K20-QFA
|
$199.31 | ||
|
Available to order. Add to View Price |
|||
|
#16-5
COVER, SIDE LH (BRONZE)
53122-34K20-QMA
|
$204.51 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLIP
09409-08008
|
$2.03 | ||
|
Unavailable |
|||
|
#18
CUSHION, COVER SIDE NO.2
53115-34K00
|
|||
|
Unavailable |
|||
|
#19
CUSHION, COVER SIDE
53114-34K00
|
$1.94 | ||
|
Available to order. Add to View Price |
|||
|
#20
MUDGUARD,SIDE RH
53116-31G00
Superseded by 53116-31G01
|
$17.47 | ||
|
Available to order. Add to View Price |
|||
|
#21
COVER,CENTER
53117-31G00
Superseded by 53117-31G01
|
$33.98 | ||
|
Available to order. Add to View Price |
|||
|
#22
EMBLEM, RH (GRAY/RED)
68151-34K00-BM6
|
$22.02 | ||
|
Available to order. Add to View Price |
|||
|
#23
EMBLEM, LH (GRAY/RED)
68152-34K00-BM6
|
$22.02 | ||
|
Available to order. Add to View Price |
|||
|
#24
GUARD, RADIATOR
53113-31G10
|
$21.95 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLAMP (L:125)
09407-14403
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
EMBLEM,POWER-STEERING (GRAY,G
68151-31GD0-BM7
Superseded by 68151-31GD1-BM7
|
$11.33 | ||
|
Available to order. Add to View Price |
|||
|
#26
EMBLEM,POWER-STEERING (GRAY,G
68151-31GD0-BM7
Superseded by 68151-31GD1-BM7
|
$11.33 | ||
|
Unavailable |
|||
|
#27
CLIP
09409-08008
|
$2.03 | ||
|
Unavailable |
|||
