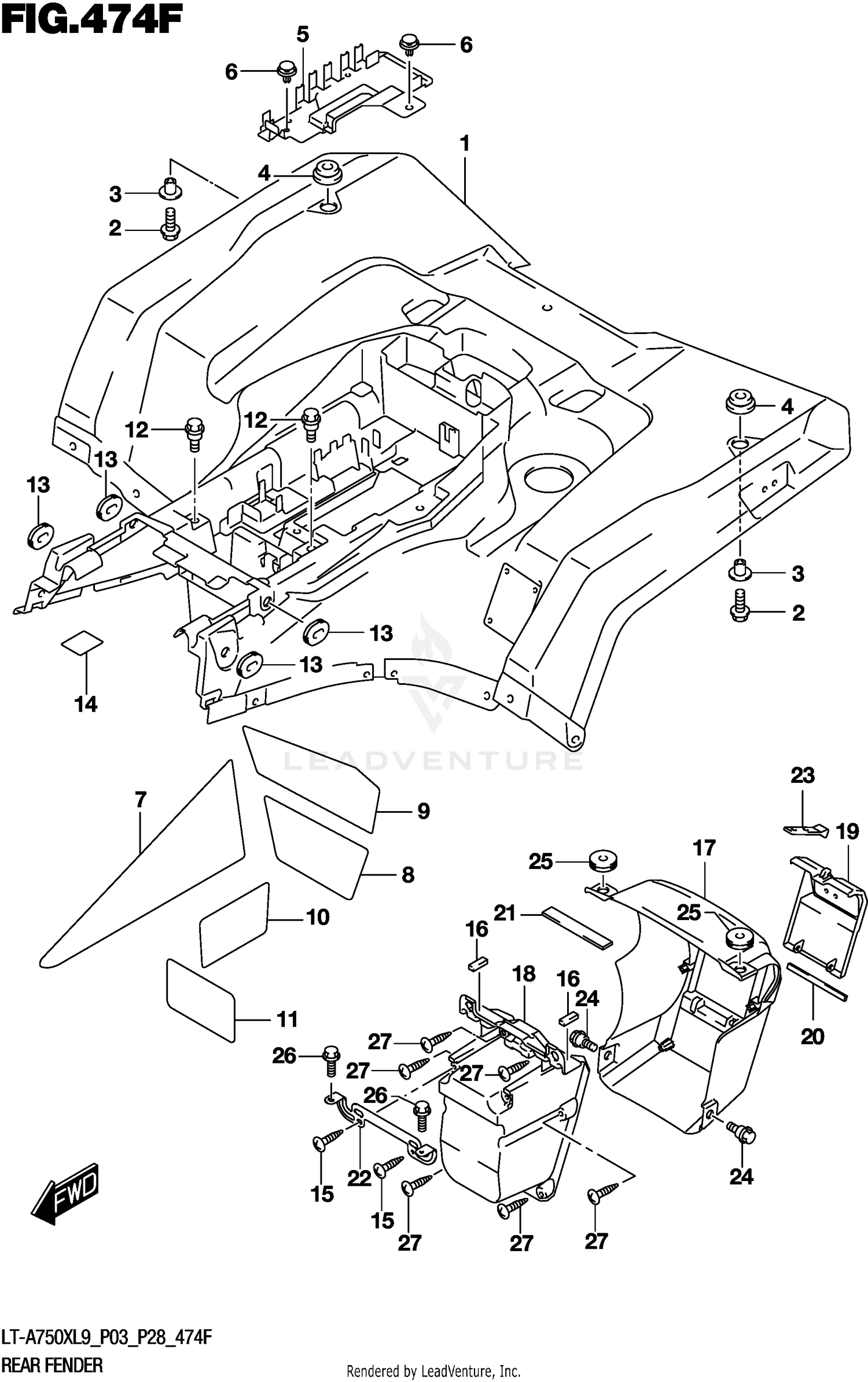

Rear Fender (lt-a750xpl9 P33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1-1
FENDER, REAR (GREEN)
63111-34K00-YLG
|
$620.75 | ||
|
Available to order. Add to View Price |
|||
|
#1-2
FENDER, REAR (WHITE)
63111-34K00-30H
|
$644.38 | ||
|
Available to order. Add to View Price |
|||
|
#1-3
FENDER,REAR (RED)
63111-34K00-YT9
Superseded by 63111-34K01-YT9
|
$620.75 | ||
|
Unavailable |
|||
|
#1-4
FENDER, REAR (CAMOUFLAGE)
63111-34K20-PHW
|
$620.75 | ||
|
Available to order. Add to View Price |
|||
|
#1-5
FENDER, REAR (BLACK)
63111-34K40-QFA
|
$931.11 | ||
|
Available to order. Add to View Price |
|||
|
#1-6
FENDER, REAR (BRONZE)
63111-34K40-QMA
|
$931.11 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT (6X25)
01550-0625A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER (6.5X24X1.6)
09169-06074
|
$10.40 | ||
|
Available to order. Add to View Price |
|||
|
#4
CUSHION (11.5X32X12.2)
09320-11021
|
$5.24 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, REAR FENDER
63112-34K00
|
$10.40 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLIP
09409-08008
|
$2.03 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHIELD, REAR FENDER
63122-34K00
|
$13.76 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHIELD, REAR FENDER
63123-34K00
|
$12.14 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHIELD, REAR FENDER
63124-34K00
|
$11.85 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIELD, REAR FENDER
63127-34K00
|
$9.44 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHIELD, REAR FENDER
63128-34K00
|
$9.31 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT (6X13.5)
09111-06088
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#13
CUSHION
09320-08029
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#14
CUSHION, REAR FENDER, RH
51553-15D40
|
$9.53 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW
03541-0620A
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#16
CUSHION, REAR COMB
33652-47F00
|
$4.77 | ||
|
Available to order. Add to View Price |
|||
|
#17
COVER,REAR
63251-34K00
Superseded by 63251-34K03
|
$23.24 | ||
|
Unavailable |
|||
|
#18
BOX,INNER
63252-34K00
Superseded by 63252-34K01
|
$34.10 | ||
|
Unavailable |
|||
|
#19
LID, OUTER
63253-34K00
Superseded by 63253-34K01
|
$29.73 | ||
|
Available to order. Add to View Price |
|||
|
#20
CUSHION, REAR COVER
63255-34K00
|
$1.62 | ||
|
Available to order. Add to View Price |
|||
|
#21
CUSHION, REAR COMB NO.2
63256-34K00
|
$18.73 | ||
|
Available to order. Add to View Price |
|||
|
#22
BRACKET, REAR COVER
63371-34K00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BAND, REAR BOX
93191-09F20
|
$14.27 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT (6X13.5)
09111-06088
|
$2.55 | ||
|
Unavailable |
|||
|
#25
CUSHION
09320-08018
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT
01550-0612A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW
03541-0516A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
