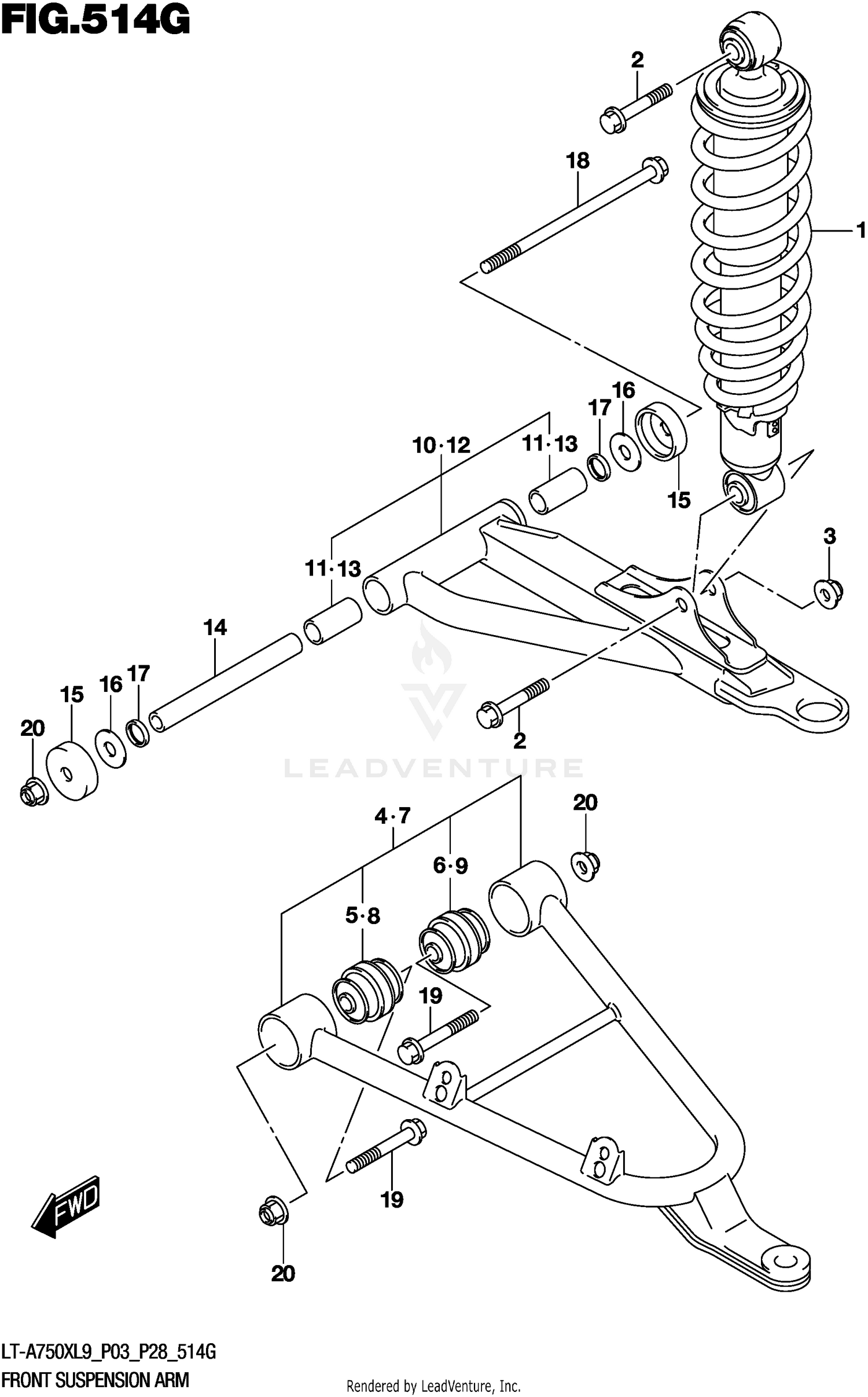

Front Suspension Arm (lt-a750xpzl9 P03) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ABSORBER ASSY,F
52100-34K10
Superseded by 52100-34K10-019
|
$209.90 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT (10X48)
09103-10126
|
$5.68 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT (M10)
09159-10115
|
$4.46 | ||
|
Available to order. Add to View Price |
|||
|
#4
ARM SET,SUSPENSION LOWER,RH
52410-34810
Superseded by 52410-34820
|
$218.05 | ||
|
Unavailable |
|||
|
#5
.BUSH (10X35.1X38)
09319-10055
|
$26.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
.BUSH, SPNSN ARM
61240-09F10
|
$33.02 | ||
|
Available to order. Add to View Price |
|||
|
#7
ARM SET,SUSPENSION LOWER,LH
52420-34810
Superseded by 52420-34820
|
$179.67 | ||
|
Unavailable |
|||
|
#8
.BUSH (10X35.1X38)
09319-10055
|
$26.88 | ||
|
Unavailable |
|||
|
#9
.BUSH, SPNSN ARM
61240-09F10
|
$33.02 | ||
|
Unavailable |
|||
|
#10
ARM SET,SUSPENSION UPR,R
52430-31840
Superseded by 52430-34810
|
$182.52 | ||
|
Unavailable |
|||
|
#11
.BUSH
51236-31G00
|
$22.35 | ||
|
Available to order. Add to View Price |
|||
|
#12
ARM SET,SUSPENSION UPR,L
52440-31840
Superseded by 52440-34810
|
$182.52 | ||
|
Unavailable |
|||
|
#13
.BUSH
51236-31G00
|
$22.35 | ||
|
Unavailable |
|||
|
#14
SPACER, PIVOT
52455-31G10
|
$36.14 | ||
|
Available to order. Add to View Price |
|||
|
#15
SEAL, FR SUSPENSION ARM PIVOT
51255-31G10
|
$22.33 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER
08211-10281
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
|
#17
SEAL
52454-45G00
|
$9.88 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT (10X160)
09103-10389
|
$12.85 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT (10X57)
09103-10255
|
$8.47 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT (M10)
09159-10115
|
$4.46 | ||
|
Unavailable |
|||
