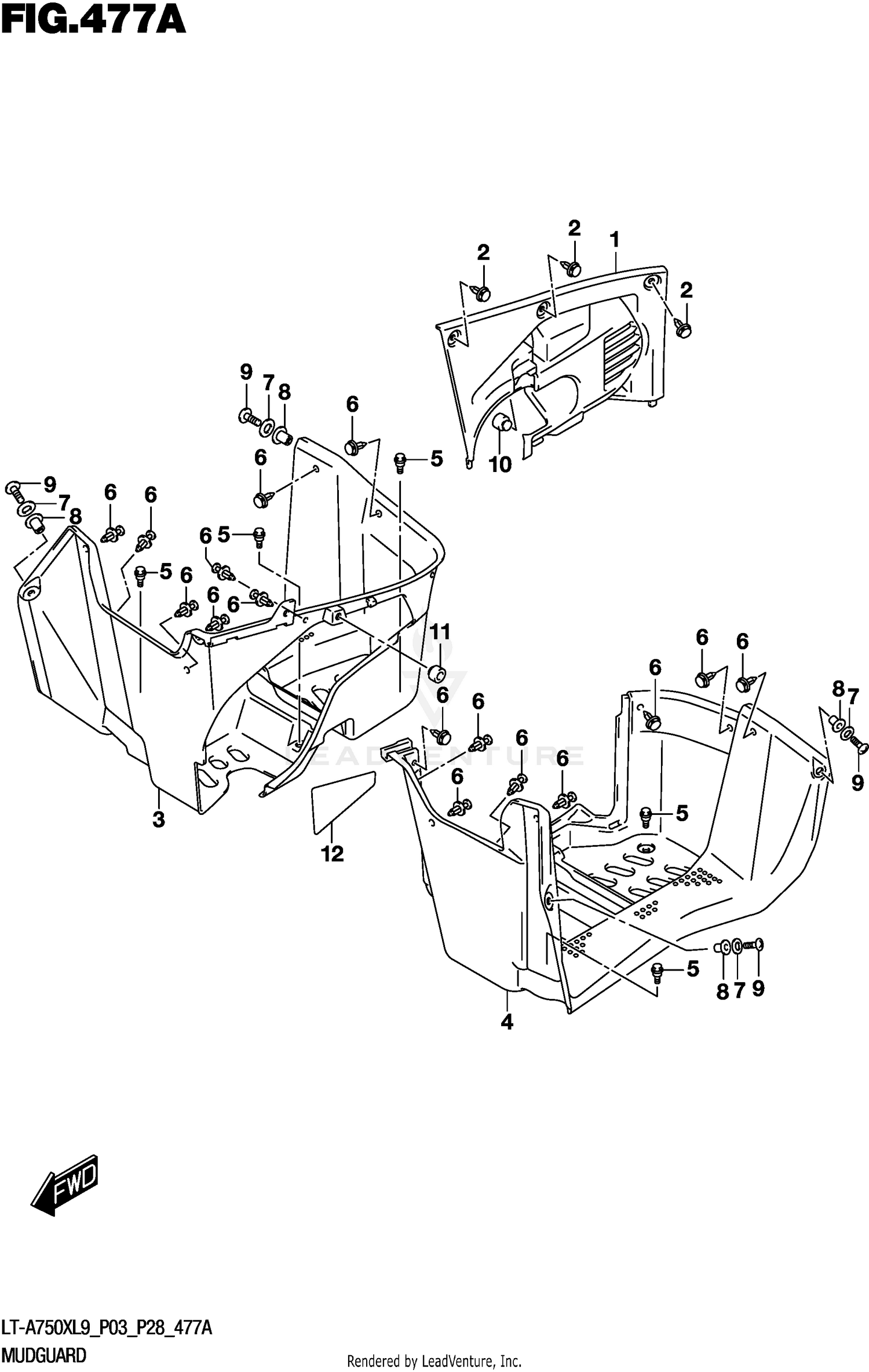

Mudguard Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LID,FOOTREST GU
63342-34K00
Superseded by 63342-34K01-291
|
$101.62 | ||
|
Unavailable |
|||
|
#2
CLIP
09409-08008
|
$2.03 | ||
|
Available to order. Add to View Price |
|||
|
#3
MUDGUARD,FOOTRE
63331-34K00
Superseded by 63331-34K02-291
|
$38.97 | ||
|
Unavailable |
|||
|
#4
MUDGUARD,FOOTRE
63341-34K00
Superseded by 63341-34K02-291
|
$73.75 | ||
|
Unavailable |
|||
|
#5
BOLT (6X13.5)
09111-06088
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLIP
09409-08008
|
$2.03 | ||
|
Unavailable |
|||
|
#7
WASHER (5.5X20X1.4)
09160-05046
|
$2.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
NUT (M5)
09159-05019
|
$8.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
SCREW
02142-0520B
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#10
CUSHION
09321-10019
|
$6.14 | ||
|
Available to order. Add to View Price |
|||
|
#11
CUSHION
09321-10019
|
$6.14 | ||
|
Unavailable |
|||
|
#12
SHIELD, SIDE COVER NO.1
63268-34K00
|
$16.14 | ||
|
Available to order. Add to View Price |
|||
