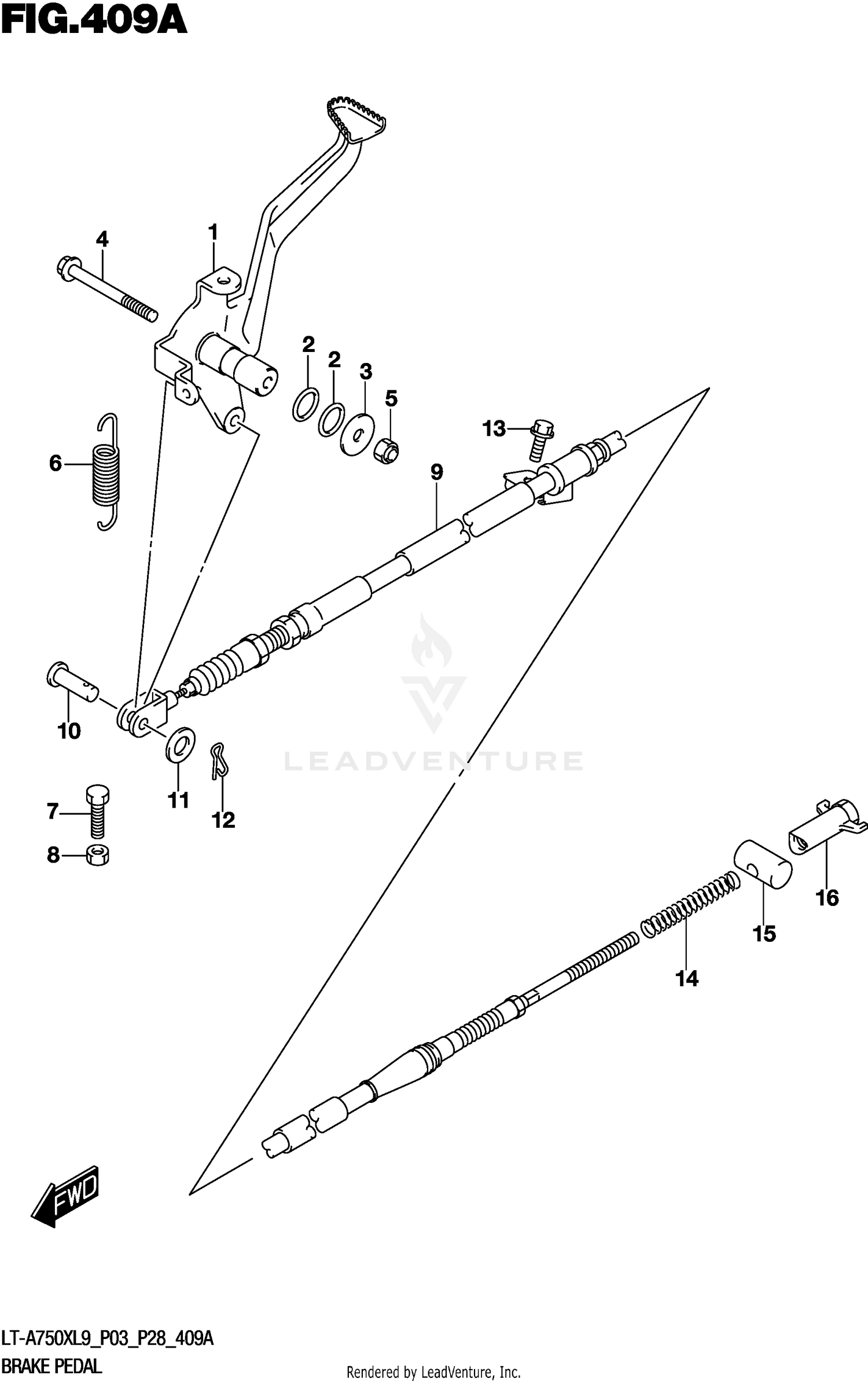

Brake Pedal Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, BRAKE
43110-31G10
|
$48.11 | ||
|
Available to order. Add to View Price |
|||
|
#2
O RING (D:2.5,ID:13.8)
09280-14011
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER (6.5X22X2.3)
09160-06138
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT (6X65)
09103-06195
|
$4.37 | ||
|
Available to order. Add to View Price |
|||
|
#5
.NUT
08319-2106A
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING
09443-11036
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
01500-0620A
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT
08310-0006A
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
CABLE, REAR BRAKE
58510-31G00
|
$111.48 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN (L:17.5)
09200-05001
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER
08322-0106B
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
CLIP
09385-06012
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
01547-0616A
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING
09440-08042
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN
09209-13006
|
$6.57 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
09150-06015
|
$4.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
