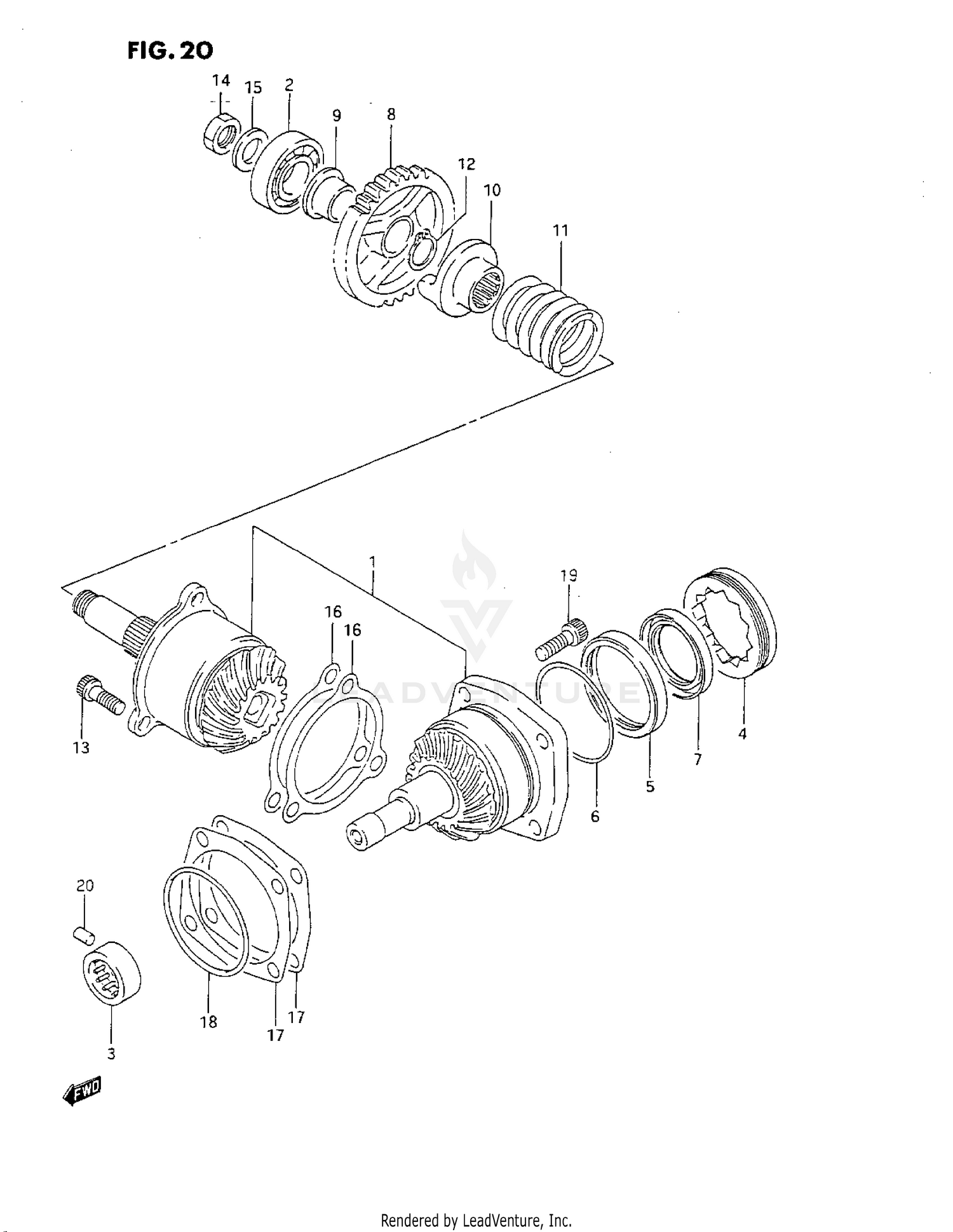

Secondary Drive Gear Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR & HOUSING SET, SECONDARY
24900-38822
|
$1,038.06 | ||
|
Available to order. Add to View Price |
|||
|
#2
BEARING (20X52X15)
09262-20073
|
$29.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
BEARING (20X34X16)
09263-20038
|
$60.81 | ||
|
Available to order. Add to View Price |
|||
|
#4
STOPPER, BEARING
24942-38A50
|
$74.95 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOUSING, OIL SEAL
24943-38A50
|
$98.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
.O RING (D:1.2,ID:59.6)
09280-60003
|
$3.01 | ||
|
Available to order. Add to View Price |
|||
|
#7
.OIL SEAL (38X54X8.5)
09283-38016
|
$19.95 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR,REDUCTION DRIVEN,NT:30 (
24631-38A00
|
$143.64 | ||
|
Available to order. Add to View Price |
|||
|
#9
BUSH,REDUCTION DRIVEN GEAR
24632-38A00
|
$16.25 | ||
|
Unavailable |
|||
|
#10
DOG, OUTPUT CAM
24922-38A00
|
$51.64 | ||
|
Unavailable |
|||
|
#11
SPRING
09440-44002
|
$22.07 | ||
|
Available to order. Add to View Price |
|||
|
#12
CIRCLIP
08331-31216
Superseded by 08331-31219
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
07110-08256
Superseded by 07130-0825B
|
$4.22 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
07130-08253
Superseded by 07130-0825B
|
$4.22 | ||
|
Unavailable |
|||
|
#14
NUT
09140-16014
Superseded by 09140-16005
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER (16X29X4)
09160-16029
|
$6.92 | ||
|
Available to order. Add to View Price |
|||
|
#16
SHIM (T:0.30)
24935-38A01-030
|
$3.19 | ||
|
Unavailable |
|||
|
#16
SHIM (T:0.35)
24935-38A01-035
|
$2.37 | ||
|
Unavailable |
|||
|
#16
SHIM (T:0.40)
24935-38A01-040
|
$2.85 | ||
|
Unavailable |
|||
|
#16
SHIM (T:0.50)
24935-38A01-050
|
$2.94 | ||
|
Unavailable |
|||
|
#16
SHIM (T:0.60)
24935-38A01-060
|
$2.80 | ||
|
Unavailable |
|||
|
#17
SHIM (T:0.30)
24945-05A00-0A0
|
$3.33 | ||
|
Unavailable |
|||
|
#17
SHIM (T:0.35)
24945-05A00-0B0
|
$3.73 | ||
|
Unavailable |
|||
|
#17
SHIM (T:0.40)
24945-05A00-0C0
|
$3.42 | ||
|
Unavailable |
|||
|
#17
SHIM (T:0.50)
24945-05A00-0D0
|
$3.42 | ||
|
Unavailable |
|||
|
#17
SHIM (T:0.60)
24945-05A00-0E0
|
$3.84 | ||
|
Unavailable |
|||
|
#18
O RING (D:2.1,ID:66.2)
09280-67004
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
07110-08256
Superseded by 07130-0825B
|
$4.22 | ||
|
Unavailable |
|||
|
#19
BOLT
07130-08253
Superseded by 07130-0825B
|
$4.22 | ||
|
Unavailable |
|||
|
#20
PIN
04221-07129
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
