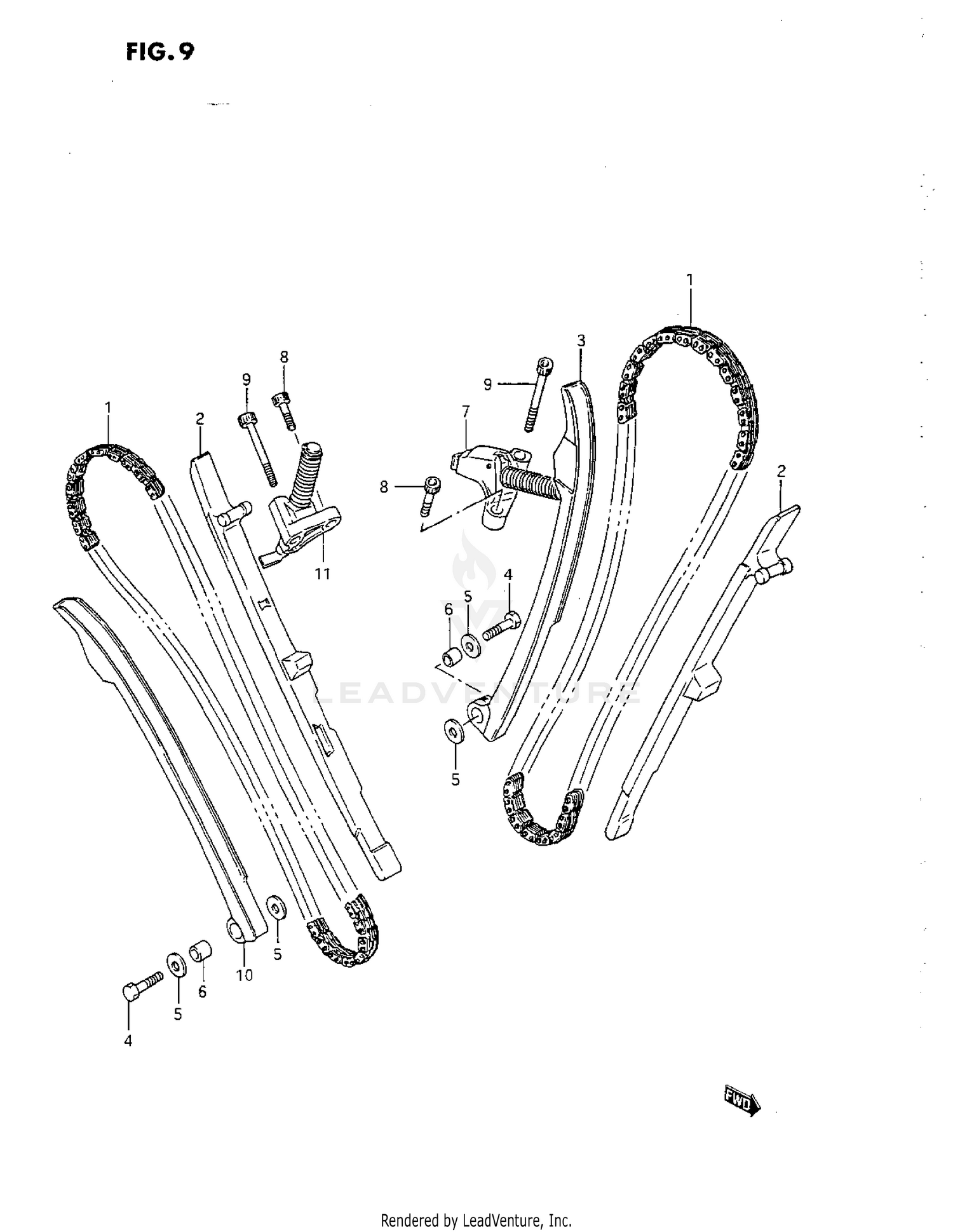

Cam Chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CHAIN, CAM SHAFT DRIVE
12760-38A10
Superseded by 12760-38A11
|
$213.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE, CAM CHAIN
12771-38A02
|
$71.45 | ||
|
Available to order. Add to View Price |
|||
|
#3
TENSIONER, CAM CHAIN FRONT
12811-38A01
|
$71.45 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
09100-06129
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER
08211-06182
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPACER
09180-06148
|
$3.88 | ||
|
Available to order. Add to View Price |
|||
|
#7
ADJUSTER ASSY, TENSIONER FRONT
12831-38A00
Superseded by 12831-38A01
|
$168.89 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FRONT BRG HOUSING
07110-06205
Superseded by 07130-0620B
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FRONT BRG HOUSING
07130-06203
Superseded by 07130-0620B
|
$3.89 | ||
|
Unavailable |
|||
|
#9
BOLT
07110-06455
Superseded by 07130-0645B
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
07130-06453
Superseded by 07130-0645B
|
$4.47 | ||
|
Unavailable |
|||
|
#10
TENSIONER, CAM CHAIN REAR
12816-38A01
|
$68.81 | ||
|
Available to order. Add to View Price |
|||
|
#11
ADJUSTER ASSY, TENSIONER REAR
12832-38A00
Superseded by 12832-38A01
|
$173.67 | ||
|
Available to order. Add to View Price |
|||
