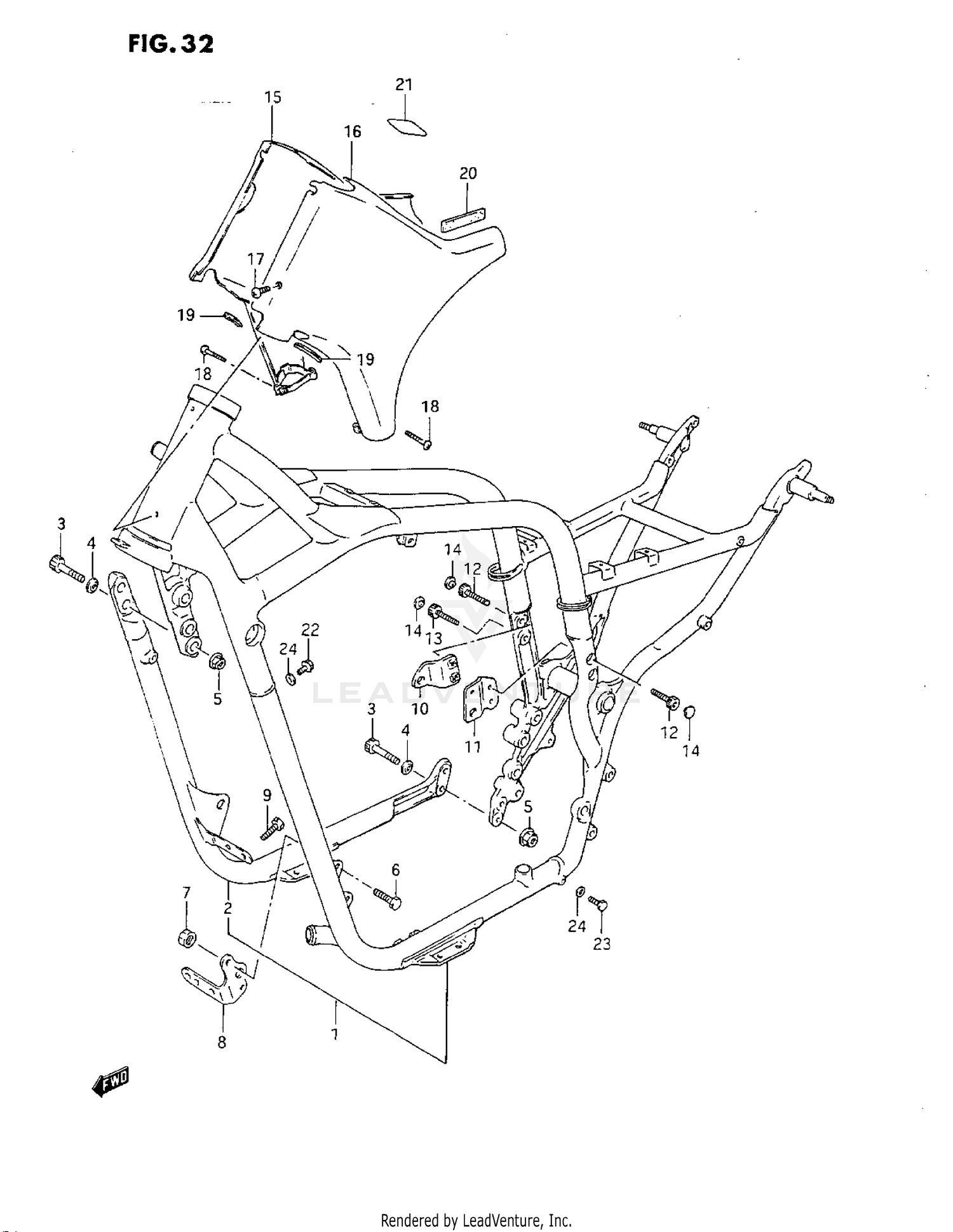

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME SET
41101-39810-03F
Superseded by 41101-39813-03F
|
$3,018.52 | ||
|
Available to order. Add to View Price |
|||
|
#1
FRAME SET (RED)
41101-39810-19A
Superseded by 41101-39813-19A
|
$1,755.27 | ||
|
Unavailable |
|||
|
#1
FRAME SET (RED)
41101-39811-19A
Superseded by 41101-39813-19A
|
$1,755.27 | ||
|
Unavailable |
|||
|
#1
FRAME SET
41101-39810-0CG
Superseded by 41101-39813-0CG
|
$3,018.52 | ||
|
Available to order. Add to View Price |
|||
|
#1
FRAME SET (BLACK)
41101-39811-33J
Superseded by 41101-39813-33J
|
$1,722.15 | ||
|
Unavailable |
|||
|
#2
TUBE, FRAME DOWN (BLUE)
41140-38A00-03F
|
$150.96 | ||
|
Unavailable |
|||
|
#2
TUBE, FRAME DOWN (RED)
41140-38A00-19A
|
$140.60 | ||
|
Unavailable |
|||
|
#3
BOLT, REAR
09106-10019
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER
09164-10005
Superseded by 09164-10010
|
$5.26 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT
08319-31105
Superseded by 08319-3110A
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT (8X20)
01517-08205
Superseded by 01550-0820A
|
$2.81 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT (8X20)
01550-08203
Superseded by 01550-0820A
|
$2.81 | ||
|
Unavailable |
|||
|
#7
NUT
08319-31085
Superseded by 08319-3108A
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, NO.1 LH (BLACK)
41920-38A00-03F
Superseded by 41920-38A00-019
|
$9.12 | ||
|
Unavailable |
|||
|
#8
PLATE, NO.1 LH (BLACK)
41920-38A00-19A
Superseded by 41920-38A00-019
|
$9.12 | ||
|
Unavailable |
|||
|
#8
PLATE, NO.1 LH (BLACK)
41920-38A00-0CG
Superseded by 41920-38A00-019
|
$9.12 | ||
|
Unavailable |
|||
|
#8
PLATE, NO.1 LH (BLACK)
41920-38A00-33J
Superseded by 41920-38A00-019
|
$9.12 | ||
|
Unavailable |
|||
|
#9
BOLT
01137-08165
Superseded by 01570-0816A
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
01570-08163
Superseded by 01570-0816A
|
$3.31 | ||
|
Unavailable |
|||
|
#10
PLATE, NO.1 LH (BLUE)
41950-38A10-03F
|
$22.93 | ||
|
Unavailable |
|||
|
#10
PLATE, NO.1 LH (RED)
41950-38A10-19A
Superseded by 41950-38A11-19A
|
$23.57 | ||
|
Unavailable |
|||
|
#10
PLATE, NO.1 LH (RED)
41950-38A11-19A
|
$23.57 | ||
|
Unavailable |
|||
|
#10
PLATE, NO.1 LH (BLUE)
41950-38A11-0CG
|
$23.57 | ||
|
Unavailable |
|||
|
#10
PLATE, NO.1 LH (BLACK)
41950-38A11-33J
|
$40.17 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE, NO.3 LH (BLUE)
41960-38A10-03F
|
$22.93 | ||
|
Unavailable |
|||
|
#11
PLATE, NO.3 LH (RED)
41960-38A10-19A
|
$20.93 | ||
|
Unavailable |
|||
|
#11
PLATE, NO.3 LH (BLUE)
41960-38A10-0CG
|
$23.57 | ||
|
Unavailable |
|||
|
#11
PLATE, NO.3 LH (BLACK)
41960-38A10-33J
|
$17.16 | ||
|
Unavailable |
|||
|
#12
BOLT, UPPER
09106-08070
|
$6.40 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, STEERING DAMPER
09106-08063
Superseded by 07130-0830A
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
CAP
09250-06004
|
$1.82 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
NO DESCRIPTION AVAILABLE
99924-FC001
Superseded by 99924-FC003
|
|||
|
Unavailable |
|||
|
#15
NO DESCRIPTION AVAILABLE
47350-38A00-03F
Superseded by 47350-38A01-03F
|
$112.01 | ||
|
Unavailable |
|||
|
#15
COVER,FRAME HEA
47350-38A00-19A
Superseded by 47350-38A01-13L
|
$387.19 | ||
|
Available to order. Add to View Price |
|||
|
#15
COVER,FRAME HEA
47350-38A01-19A
Superseded by 47350-38A01-13L
|
$387.19 | ||
|
Unavailable |
|||
|
#15
NO DESCRIPTION AVAILABLE
47350-38A00-0CG
Superseded by 47350-38A01-0CG
|
$112.01 | ||
|
Unavailable |
|||
|
#15
COVER, FRAME HEAD RH (BLACK)
47350-38A01-33J
|
$172.21 | ||
|
Unavailable |
|||
|
#16
NO DESCRIPTION AVAILABLE
47360-38A00-03F
Superseded by 47360-38A01-03F
|
$115.69 | ||
|
Unavailable |
|||
|
#16
COVER, FRAME HEAD LH (RED)
47360-38A00-19A
Superseded by 47360-38A01-19A
|
$238.38 | ||
|
Available to order. Add to View Price |
|||
|
#16
COVER, FRAME HEAD LH (RED)
47360-38A01-19A
|
$238.38 | ||
|
Unavailable |
|||
|
#16
NO DESCRIPTION AVAILABLE
47360-38A00-0CG
Superseded by 47360-38A01-0CG
|
$112.01 | ||
|
Unavailable |
|||
|
#16
COVER, FRAME HEAD LH (BLACK)
47360-38A01-33J
|
$164.01 | ||
|
Unavailable |
|||
|
#17
SCREW
02142-05104
Superseded by 02142-0510B
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#17
STOPPER, CL RLSE CAM SHAFT
02142-06103
Superseded by 02142-0610A
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW
02112-04254
Superseded by 02112-0425B
|
$2.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
SCREW
02112-04253
Superseded by 02112-0425B
|
$2.95 | ||
|
Unavailable |
|||
|
#19
MOLDING (L:300)
68241-38A10
Superseded by 68241-04X50-300
|
$9.72 | ||
|
Available to order. Add to View Price |
|||
|
#20
PROTECTOR (80X80X2)
33652-38A10
Superseded by 33652-07D00
|
$7.30 | ||
|
Available to order. Add to View Price |
|||
|
#21
TAPE, FRAME HEAD COVER
47358-38A00
|
$7.75 | ||
|
Available to order. Add to View Price |
|||
|
#22
UNION
09360-06015
Superseded by 09360-06015-XC0
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT
01517-06105
Superseded by 01550-0610A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#24
GASKET
09168-06004
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
