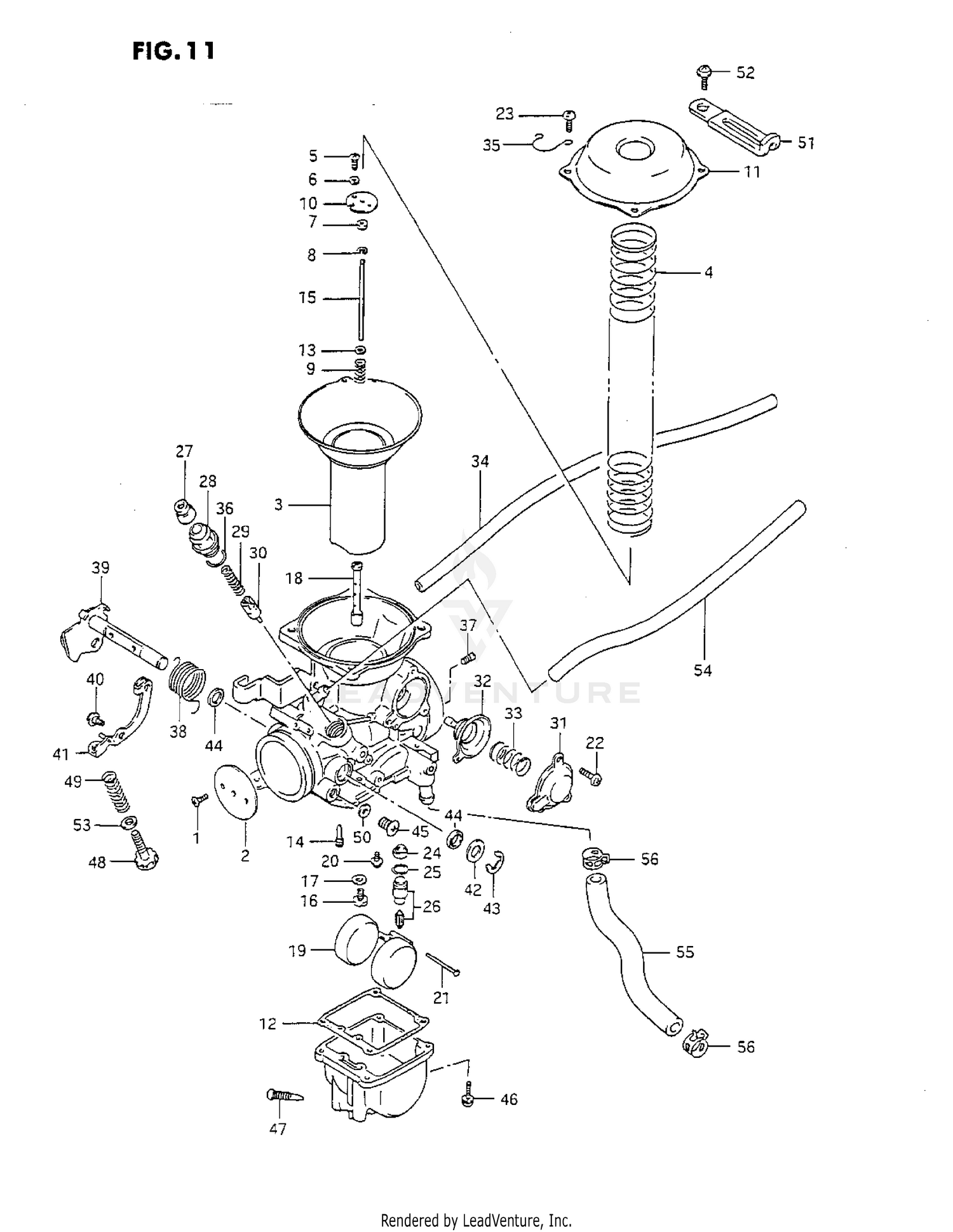

Carburetor (rear) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#52
SCREW
13602-38A20
Superseded by 02142-0408B
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#53
WASHER
13277-37100
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#54
HOSE (5X8X430)
13683-38B00
Superseded by 13683-38B01
|
$39.50 | ||
|
Available to order. Add to View Price |
|||
|
#55
HOSE, FUEL (PUMP & CARB)
13683-38A01
Superseded by 13683-38E01
|
$23.93 | ||
|
Available to order. Add to View Price |
|||
|
#56
CLIP (ID:12.9)
09401-13408
Superseded by 09401-13417
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#1
SCREW
13604-44080
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#2
VALVE, THROTTLE (125)
13551-05A10
|
$22.17 | ||
|
Unavailable |
|||
|
#3
DIAPHRAGM ASSY
13500-38A10
|
$219.29 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING
13503-38B00
|
$14.20 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW
02112-03066
Superseded by 02112-0306B
|
$2.01 | ||
|
Available to order. Add to View Price |
|||
|
#6
LOCK WASHER
08321-21036
Superseded by 08321-2103B
|
$1.80 | ||
|
Available to order. Add to View Price |
|||
|
#7
RING
13387-38210
Superseded by 13387-47010
|
$9.59 | ||
|
Available to order. Add to View Price |
|||
|
#8
E RING
13394-10010
|
$6.17 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
SPRING
13388-44030
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE
13389-37400
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER
13502-45C00
|
$13.36 | ||
|
Unavailable |
|||
|
#12
GASKET
13251-38A10
|
$10.21 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER
13382-44030
|
$4.93 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
JET, PILOT (45)
09492-45016
|
$12.39 | ||
|
Available to order. Add to View Price |
|||
|
#15
NEEDLE, JET (5D35-1)
13383-38B00
|
$20.82 | ||
|
Available to order. Add to View Price |
|||
|
#16
JET, MAIN (132.5)
09491-26012
|
$12.15 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, NEEDLE JET
13332-44080
Superseded by 13382-03110
|
$3.43 | ||
|
Available to order. Add to View Price |
|||
|
#18
JET, NEEDLE (P-7)
09494-00689
|
$38.85 | ||
|
Available to order. Add to View Price |
|||
|
#19
FLOAT
13252-23010
|
$26.66 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW
13602-05A10
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIN
13254-92311
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW
13602-38A10
Superseded by 02112-04107
|
$1.94 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW
02112-04086
Superseded by 02112-0408A
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#24
FILTER
13376-84110
Superseded by 13376-19F00
|
$13.28 | ||
|
Available to order. Add to View Price |
|||
|
#25
.O RING,NEEDLE VALVE SEAT
13374-44080
Superseded by 13374-35C00
|
$7.73 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
VALVE ASSY, NEEDLE
13370-39A00
|
$77.97 | ||
|
Available to order. Add to View Price |
|||
|
#27
.CAP
13681-04010
Superseded by 13681-04011
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#28
HOLDER, GUIDE
13418-43410
|
$9.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
SPRING
13417-22010
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#30
PLUNGER ASSY
13411-01400
|
$17.18 | ||
|
Available to order. Add to View Price |
|||
|
#31
COVER
13484-38A10
|
$25.08 | ||
|
Available to order. Add to View Price |
|||
|
#32
DIAPHRAGM ASSY
13480-05A10
Superseded by 13480-05A11
|
$68.73 | ||
|
Available to order. Add to View Price |
|||
|
#33
SPRING
13481-05A10
Superseded by 13481-45C10
|
$6.28 | ||
|
Available to order. Add to View Price |
|||
|
#34
HOSE,5X10X600
13684-38A20
Superseded by 44421-13ER0
|
$12.80 | ||
|
Available to order. Add to View Price |
|||
|
#35
CLIP
13692-02500
|
$9.51 | ||
|
Available to order. Add to View Price |
|||
|
#36
.O RING (16)
13278-47090
Superseded by 13278-47091
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#37
JET, PILOT AIR (65)
09492-65005
|
$12.39 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#38
SPRING
13573-38B10
|
$4.16 | ||
|
Unavailable |
|||
|
#39
SHAFT ASSY
13550-38A10
|
$43.49 | ||
|
Unavailable |
|||
|
#40
SCREW
13602-05A30
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#41
LEVER ASSY
13554-38B00
Superseded by 13554-45C20
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
WASHER
13557-47070
|
$4.77 | ||
|
Available to order. Add to View Price |
|||
|
#43
E RING
13617-44080
|
$3.67 | ||
|
Available to order. Add to View Price |
|||
|
#44
SEAL
13556-05A10
Superseded by 13556-05A11
|
$4.77 | ||
|
Available to order. Add to View Price |
|||
|
#45
SCREW
02112-05066
Superseded by 02112-0506B
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#46
SCREW
13601-04148
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#47
SCREW, DRAIN
13247-38B00
Superseded by 13247-02340
|
$6.44 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#48
ADJUSTER
13267-38A10
Superseded by 13267-39E50
|
$16.03 | ||
|
Available to order. Add to View Price |
|||
|
#49
SPRING
13271-93011
|
$5.84 | ||
|
Available to order. Add to View Price |
|||
|
#50
WASHER
13523-46110
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#51
CLAMP(L:80)
13671-05A20
Superseded by 09404-06036
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
