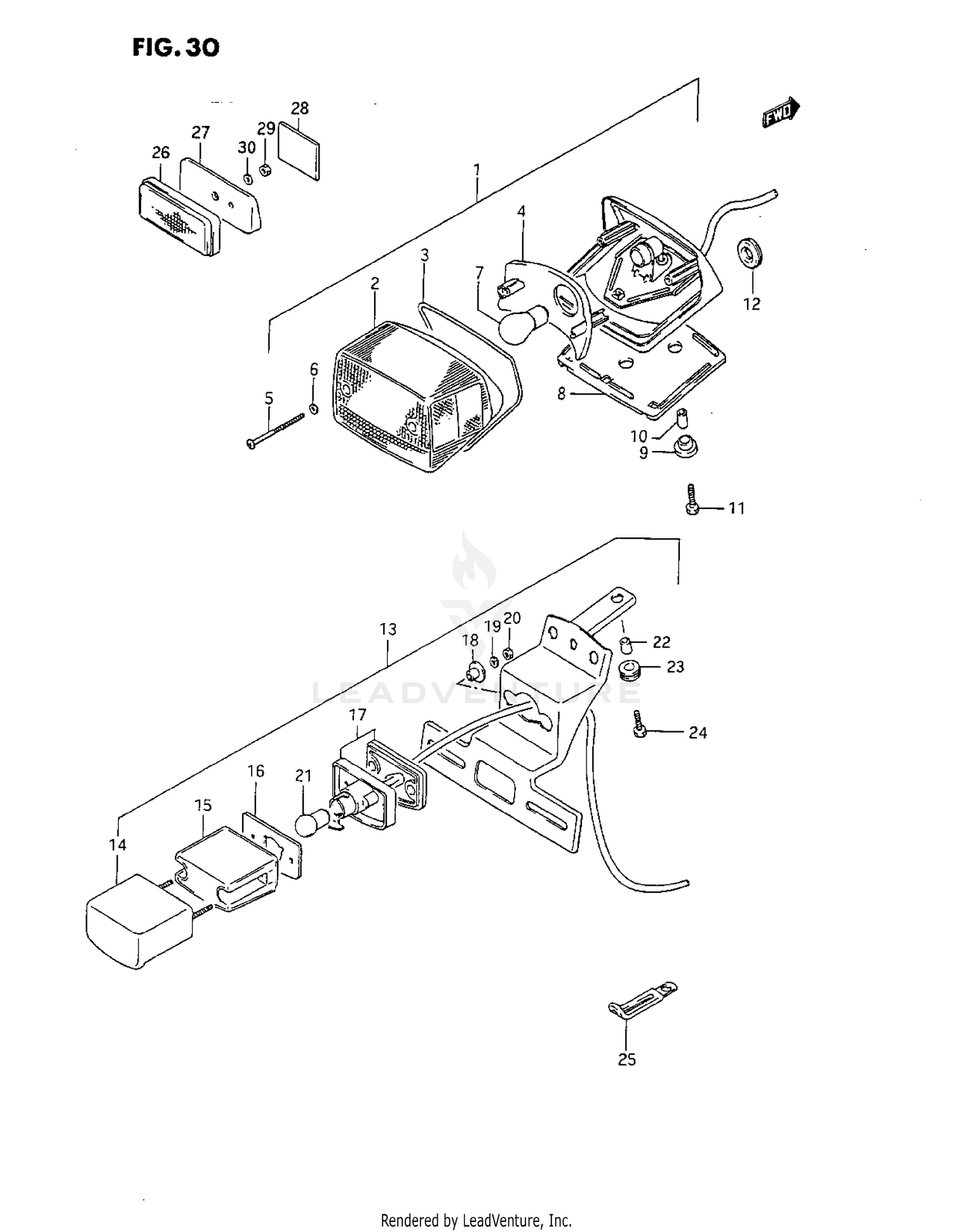

Rear Combination Lamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LAMP ASSY, REAR COMBINATION
35710-39A00
Superseded by 35710-39A00-999
|
$114.31 | ||
|
Available to order. Add to View Price |
|||
|
#2
LENS
35712-38A30
|
$72.20 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET
35713-38A00
Superseded by 35713-31D00
|
$10.63 | ||
|
Available to order. Add to View Price |
|||
|
#4
REFLECTOR
35714-38A00
|
$24.23 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW
35723-44130
|
$2.51 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
GASKET
35627-43010
|
$2.68 | ||
|
Available to order. Add to View Price |
|||
|
#7
BULB (12V, 21/5W)
09471-12128
|
$8.45 | ||
|
Available to order. Add to View Price |
|||
|
#8
CUSHION
35765-38A00
|
$14.24 | ||
|
Unavailable |
|||
|
#9
CUSHION
35764-26470
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPACER
35766-37190
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT (6X25)
09116-06087
Superseded by 09116-06047
|
$1.82 | ||
|
Unavailable |
|||
|
#12
GROMMET
09308-09013
|
$1.57 | ||
|
Unavailable |
|||
|
#13
LAMP ASSY, LICENSE
35910-38A33
|
$147.41 | ||
|
Unavailable |
|||
|
#14
COVER, LICENSE LAMP
35917-38A20
|
$102.41 | ||
|
Available to order. Add to View Price |
|||
|
#15
LENS
35912-38A30
|
$23.10 | ||
|
Available to order. Add to View Price |
|||
|
#16
GASKET
35913-38A30
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOUSING, LICENSE LAMP
35915-38A31
|
$56.57 | ||
|
Unavailable |
|||
|
#18
SPACER
35766-38A30
|
$1.51 | ||
|
Unavailable |
|||
|
#19
LOCK WASHER
08321-21047
Superseded by 08321-0104A
|
$2.32 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT
08310-11047
Superseded by 08310-00047
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#21
BULB (12V, 8W)
09471-12141
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPACER
35766-38A00
|
$2.30 | ||
|
Unavailable |
|||
|
#23
CUSHION
35765-38A30
|
$3.09 | ||
|
Unavailable |
|||
|
#24
BOLT (6X20)
09116-06065
Superseded by 09116-06010
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLAMP
09404-06402
Superseded by 09404-06039
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#26
REFLEX REFLECTOR
35970-38B00
|
$36.87 | ||
|
Available to order. Add to View Price |
|||
|
#26
REFLEX REFLECTOR
35970-38A00
|
$28.97 | ||
|
Available to order. Add to View Price |
|||
|
#27
SPACER
35977-38B00
Superseded by 35977-38B30
|
$3.87 | ||
|
Unavailable |
|||
|
#28
COVER, HARNESS
36920-06400
Superseded by 36920-02200
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#29
.NUT
08310-22056
Superseded by 08310-0005A
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT
08316-16056
Superseded by 08316-1005A
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER
08322-21056
Superseded by 08322-0105A
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
