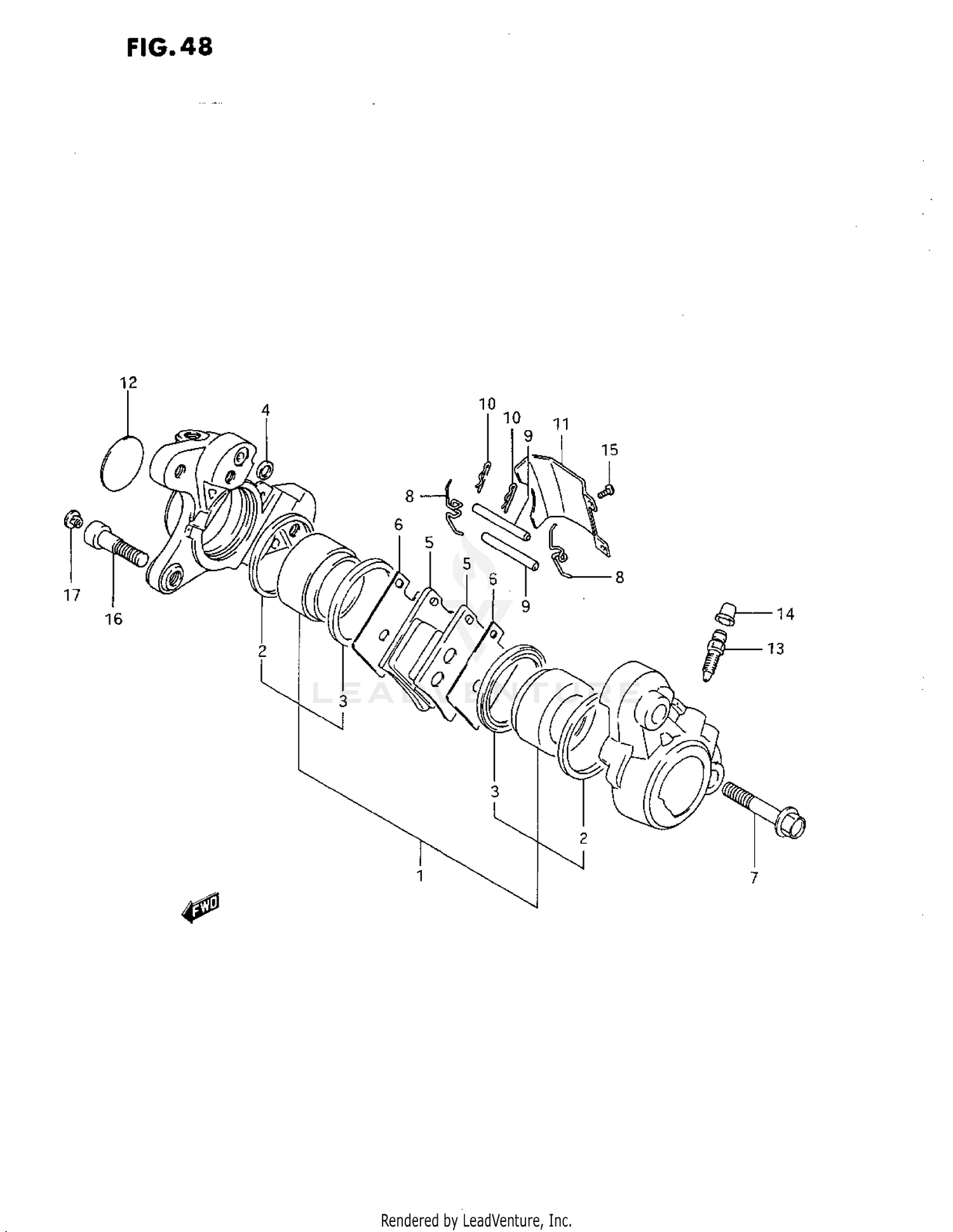

Front Caliper (n) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CALIPER ASSY, FRONT
59100-38A01
Superseded by 59100-38A02-999
|
$417.00 | ||
|
Available to order. Add to View Price |
|||
|
#1
PISTON SET
69100-24821
|
$73.56 | ||
|
Available to order. Add to View Price |
|||
|
#2
PISTON SEAL
55136-66310
Superseded by 69107-38B00
|
$13.00 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOOT
69108-45000
|
$11.29 | ||
|
Available to order. Add to View Price |
|||
|
#4
SEAL
69107-34200
|
$13.83 | ||
|
Available to order. Add to View Price |
|||
|
#5
PAD SET
59130-38B10
Superseded by 59100-38820
|
$52.40 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHIM
59371-33410
|
$16.69 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
59145-16700
|
$9.97 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING
59143-16700
|
$7.48 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN
69141-45000
|
$6.87 | ||
|
Available to order. Add to View Price |
|||
|
#10
.CLIP,PAD PIN
69142-45000
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER
59151-38B00
Superseded by 59151-38B01
|
$59.72 | ||
|
Available to order. Add to View Price |
|||
|
#12
CAP, CALIPER
59152-24A00
|
$23.90 | ||
|
Available to order. Add to View Price |
|||
|
#13
BLEEDER
59121-18410
|
$11.27 | ||
|
Available to order. Add to View Price |
|||
|
#14
CAP, BLEEDER
59122-18410
Superseded by 55156-66310
|
$6.67 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW (4X6)
59153-38B00
Superseded by 59153-38B10
|
$8.82 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
09106-10038
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#17
CAP
09250-08014
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
