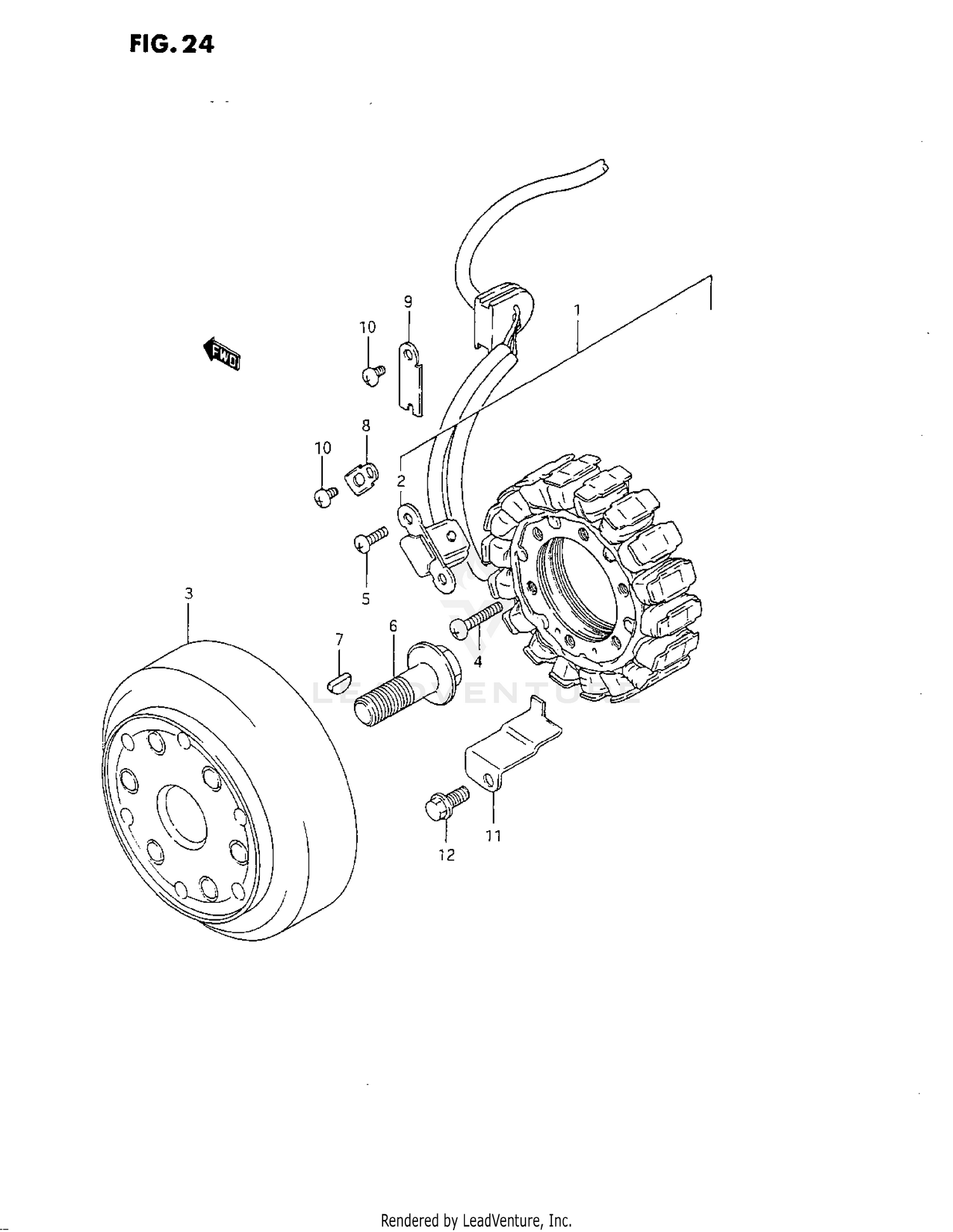

Magneto Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STATOR
32101-38A10
|
$554.17 | ||
|
Available to order. Add to View Price |
|||
|
#2
SENSOR, TIMING
32160-38A10
|
$143.90 | ||
|
Unavailable |
|||
|
#3
ROTOR
32102-38A10
|
$200.97 | ||
|
Unavailable |
|||
|
#4
SCREW
01547-06307
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW
02112-05107
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
09103-14001
|
$12.86 | ||
|
Available to order. Add to View Price |
|||
|
#7
KEY
08341-31049
Superseded by 09420-04008
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP
31497-45000
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP
32371-38A10
|
$1.20 | ||
|
Unavailable |
|||
|
#10
SCREW
02112-05107
|
$1.78 | ||
|
Unavailable |
|||
|
#11
CLAMP
32371-38A20
Superseded by 32371-45C00
|
$5.18 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
01547-06107
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
