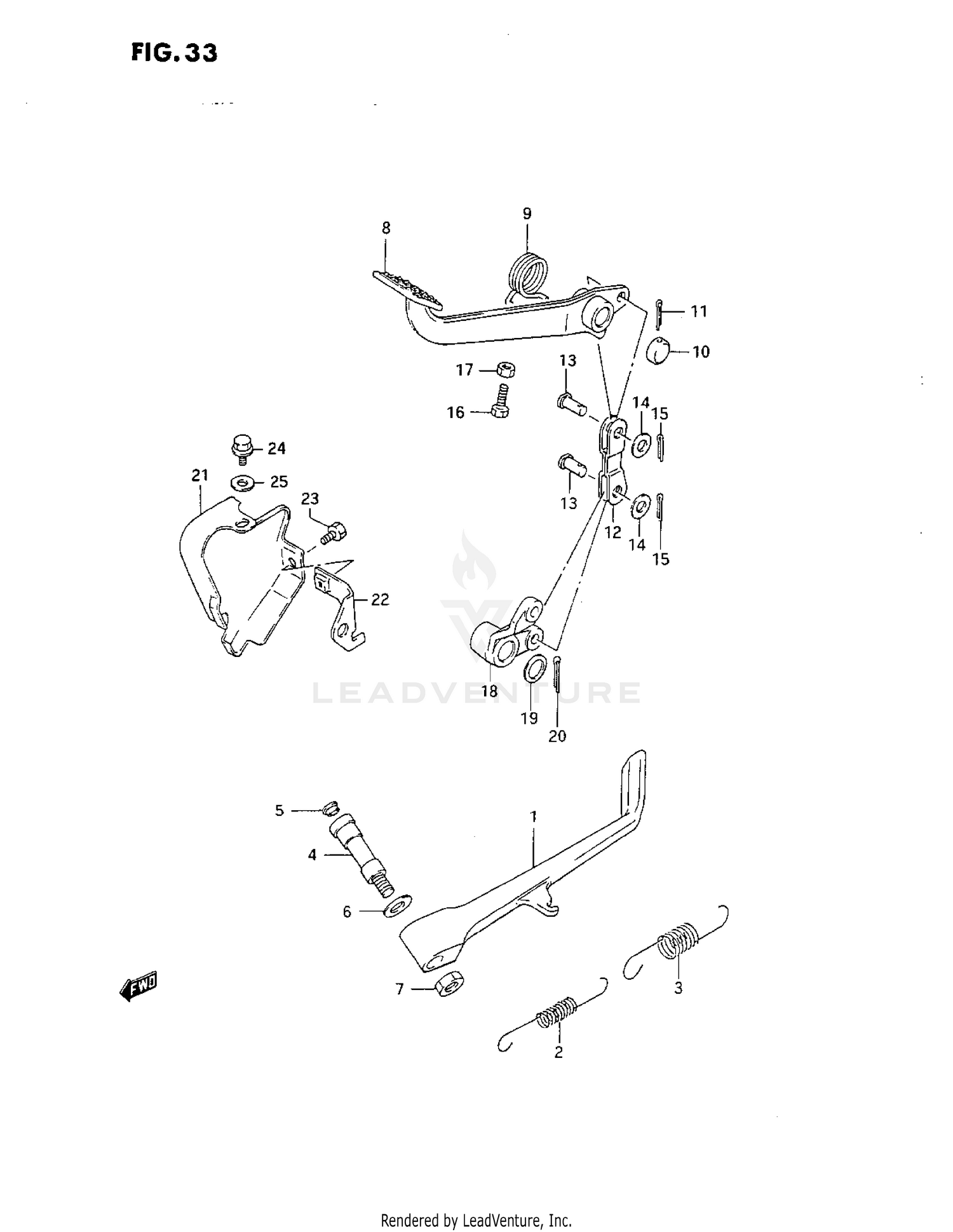

Prop Stand-rear Brake Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAND, PROP
42310-38A11
Superseded by 42310-24B01
|
$117.92 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPRING, INNER
09443-13025
|
$7.39 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, OUTER
09443-18021
|
$6.78 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
42341-38B01
|
$15.44 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP
43575-34500
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHIM
08221-15245
Superseded by 09181-15158
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT
09140-10044
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#8
PEDAL ASSY, BRAKE
43100-38A30
Superseded by 43100-38A31
|
$124.57 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING
09448-31034
|
$6.61 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP
43135-07A01
Superseded by 43135-07A02
|
$7.77 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN
04111-30308
Superseded by 04111-3030A
|
$1.71 | ||
|
Available to order. Add to View Price |
|||
|
#12
LINK, BRAKE ROD
43230-38A00
Superseded by 43230-38A02
|
$9.80 | ||
|
Unavailable |
|||
|
#13
PIN
09200-08055
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER
08322-11088
Superseded by 08322-01087
|
$2.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
.COTTER PIN
04111-20158
Superseded by 04111-2015A
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
01107-06207
Superseded by 01500-06207
|
$2.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
.NUT
08310-11067
Superseded by 08310-00067
|
$2.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
ARM, BRAKE PEDAL LH
43260-38A21
Superseded by 43260-38A22
|
$82.57 | ||
|
Unavailable |
|||
|
#19
WASHER
09160-16015
Superseded by 09160-16043
|
$2.31 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN
04111-30308
Superseded by 04111-3030A
|
$1.71 | ||
|
Unavailable |
|||
|
#21
COVER, BRAKE
43295-38A20
Superseded by 43295-38A31
|
$44.41 | ||
|
Available to order. Add to View Price |
|||
|
#21
COVER, BRAKE
43295-38A30
Superseded by 43295-38A31
|
$44.41 | ||
|
Unavailable |
|||
|
#21
COVER, BRAKE
43295-38A21
|
|||
|
Unavailable |
|||
|
#22
BRACKET, BRAKE COVER
43290-38A10
|
$3.03 | ||
|
Unavailable |
|||
|
#23
SCREW (6X10)
09128-06004
Superseded by 09128-06044
|
$1.74 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT
01547-06107
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER
09160-06094
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
